Adapter plate 8 x MPO (without adapters)
Adapter plates are designed for installing MPO adapters in LAN-FRM patch panels. Up to four 8-MPO adapter plates can be installed in one panel, providing a density of up to 384 fibers per 1U.

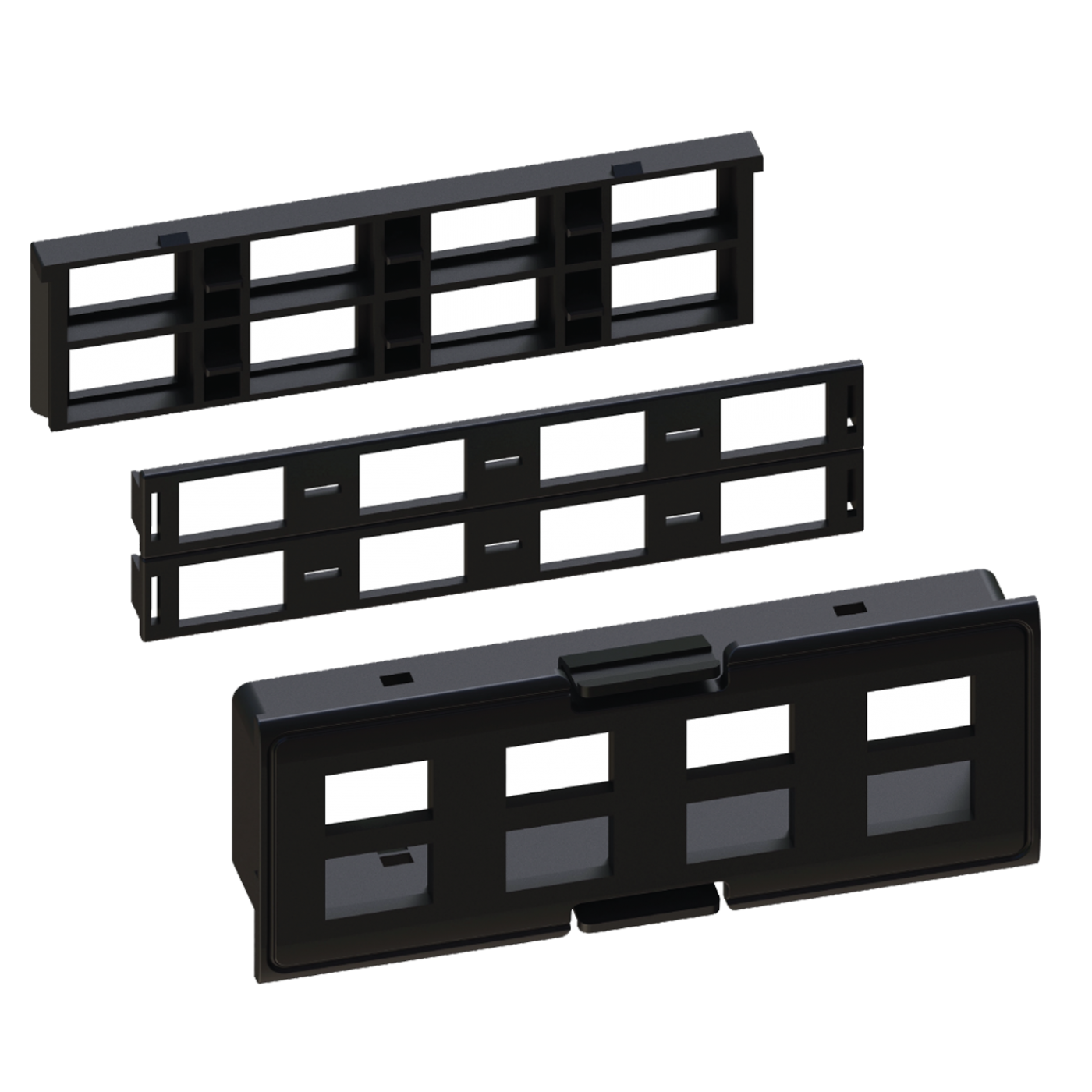

The plastic adapter plate has an assembled three-piece design that secures the adapters. Adapters are not included.
Example of a LAN-FRM panel with installed MPO adapter plates and adapters:

LAN-FRM modular patch panels are a high-density modular solution for advanced data transmission formats. The design and full range of modular components simplify maintenance and system upgrades. New components can be installed without special tools or specialist assistance. These factors are especially important for structured cabling systems in data centers.
Frequently Asked Questions
What is the LAN-FRM-IN-8MPO adapter strip used for?
What does the LAN-FRM-IN-8MPO strip consist of and how are the adapters fixed in it?
The plastic strip is assembled from three elements that hold the MPO (Multi-fiber Push-On, multi-fiber connector) adapters. Install the strip in the panel until the latches lock; no tools are needed.
Which MPO (Multi-fiber Push-On, multi-fiber connector) adapters should be selected for the LAN-FRM-IN-8MPO strip?
Select MPO (Multi-fiber Push-On, multi-fiber connector) pass-through adapters of the required polarity: type A (Key-up/Key-down) or type B (Key-up/Key-up), for example LAN-MPO-AM-MM or LAN-MPO-BM-MM. Use components of the same polarity type throughout the line.
Which panels is the LAN-FRM-IN-8MPO strip installed in?
Install the LAN-FRM-IN-8MPO strip in LAN-FRM modular patch panels: LAN-FRM-PP-FO/1U, LAN-FRM-PPA-FO/1U and LAN-FRM-PP-STP/1U. Close unoccupied panel slots with LAN-FRM-IN-XXX blanking plates.
How should MPO (Multi-fiber Push-On, multi-fiber connector) polarity be selected for планки LAN-FRM-IN-8MPO?
According to discussions on specialist network engineering forums, polarity errors with MPO (Multi-fiber Push-On, multi-fiber connector) are among the most frequent causes of a missing link in multi-fiber connector lines. Before installation draw a diagram of the line and check that the transmitter at one end is connected to the receiver at the other. For cassettes, adapters and trunk assemblies of polarity type B (Key-up/Key-up) use type B components throughout the line.
How should the adapter connectors of the LAN-FRM-IN-8MPO strip be cleaned?
Before each connection inspect the MPO (Multi-fiber Push-On, multi-fiber connector) connector end faces and clean them with the LAN-FT-CL/MPO tool if they are dirty. Close unused adapters with caps.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-FRM-IN-8MPO | pcs | 130 × 110 × 20 | 0.02 | 0.000286 |
Package
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-FRM-IN-8MPO | box | 240 × 230 × 70 | 0.502 | 0.003864 |
