Modular Fiber Optic Patch Panel, 19", 1U, for 4 Inserts, with Fiber Optic Cable Manager

LAN-FRM-PP-FO/1U - Modular fiber optic patch panel, 19" rack-mount, 1U height, for 4 fiber optic inserts, featuring integrated cable management for optical fiber cables.
LAN-FRM-PP-FO/1U

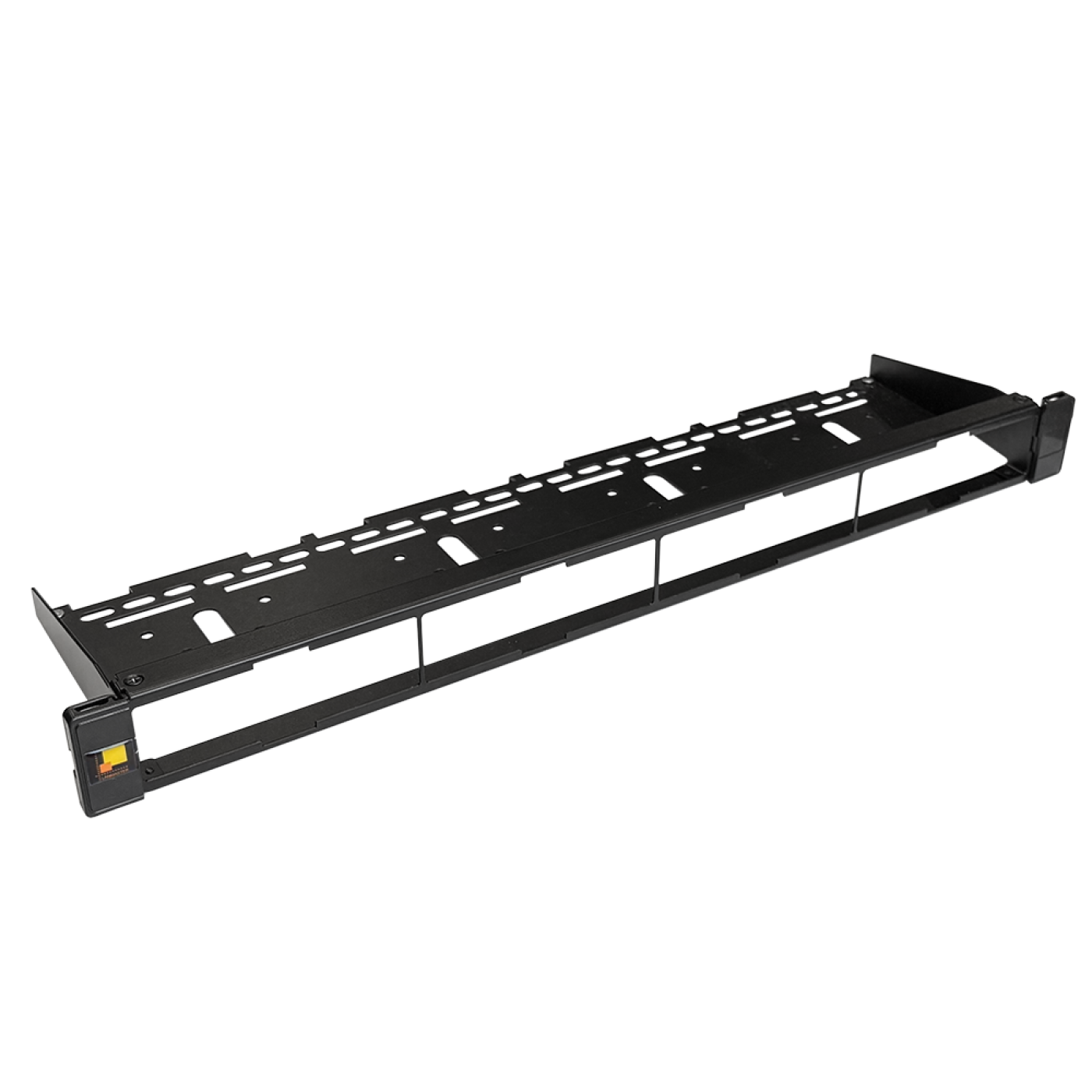

Modular fiber optic patch panel, 19" rack-mount, 1U height, designed for 4 fiber optic inserts. Includes integrated fiber optic cable manager for organized cable routing and strain relief. Compatible with standard fiber optic patch cords and structured cabling systems. Meets industry standards for optical fiber management in telecommunications and data center environments.

Frequently Asked Questions

What is the LAN-FRM-PP-FO/1U modular patch panel used for?

The 1U LAN-FRM-PP-FO/1U patch panel is used to terminate cables of various structured cabling subsystems and to connect network components to each other with patch cords. The panel has four slots for front inserts and cassette modules; blocks from different modules can be combined in one panel. A cable support bracket and an optical cable organizer are included.

LAN-FRM-PP-FO/1U product
LAN-FRM-PP-FO/1U product
What is included with the LAN-FRM-PP-FO/1U panel?

The set includes: patch panel — 1 pc, cable fixing bracket — 1 pc, mounting hardware for the rails — 1 pc, cable ties — 4 pcs. The bracket ensures the required bend radius and reliable fixation of cables during termination and in operation.

Which inserts and cassettes should be installed in the LAN-FRM-PP-FO/1U panel?
How should unused slots of the LAN-FRM-PP-FO/1U panel be closed?

Install LAN-FRM-IN-XXX blanking plates in the free slots: they are held by side latches without tools and protect the inside of the panel from dust.

How should an optical cable be secured in the LAN-FRM-PP-FO/1U panel?

Lay the cable in the panel organizer, secure it with the supplied support bracket and ties and then terminate the cable. Keep the fiber bend radius no smaller than permitted for the chosen cable.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-FRM-PP-FO/1U pcs 510 × 140 × 55 0.65 0.003927

Package

Product code Unit Weight (kg)
LAN-FRM-PP-FO/1U box 8.6

Product Codes (1)

  • Modular Fiber Optic Patch Panel, 19", 1U, for 4 Inserts, with Fiber Optic Cable Manager
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
