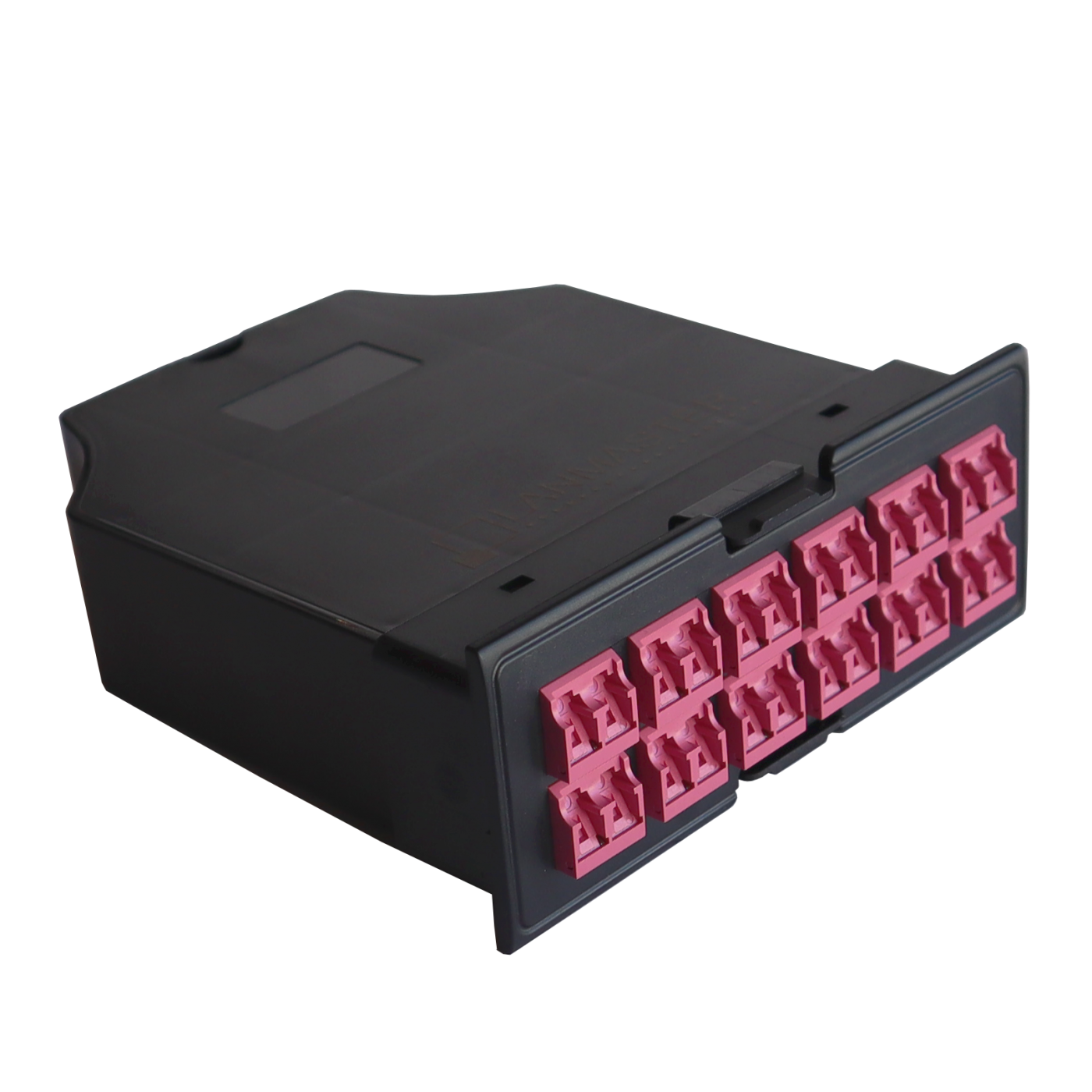

MPO cassette, OM4, for modular panel, 24xLC, type B, low loss, black

It is a high-performance modular solution with support for advanced data transmission protocols. Design features and a full set of modular components ensure easy maintenance and system upgrades. To connect new elements, no special tools or highly trained technicians are required. These factors are especially important for SCS in Data Centers.
High performance and excellent characteristics are achieved through the use of new polishing processes and increased demands on the geometry of the fiber end faces in the connector. Each element of the system goes through a series of tests. The quality of polishing to industry standards is verified using a 3D interferometer.
LC adapter housings have built-in dust shutters on the front side. The shutters automatically retract when a patch cord is plugged in. When closed, it protects the interior from dust and contamination.
Polarity: B
Fber type: OM4
Insertion Loss:
MPO connector ≤ 0.35 dB
LC connectors ≤ 0.30 dB
Frequently Asked Questions
What is the LAN-FRM-IN-2MB-24LC/OM4 cassette used for?
The LAN-FRM-IN-2MB-24LC/OM4 cassette is intended for the LAN-FRM-PP-STP/1U modular patch panel. The plastic housing contains two 12-fiber breakout assemblies (multimode OM4 fiber): MPO (Multi-fiber Push-On, multi-fiber connector) connectors at the rear and two rows of duplex LC (Lucent Connector) connectors at the front (24 LC ports).
How many LC (Lucent Connector) ports does a panel with LAN-FRM-IN-2MB-24LC/OM4 cassettes give?
Up to four cassettes can be installed in a panel, giving a density of 96 LC (Lucent Connector) ports (48 duplex LC) per 1U. Close unoccupied slots with LAN-FRM-IN-XXX blanking plates.
What polarity does the LAN-FRM-IN-2MB-24LC/OM4 cassette have?
The LAN-FRM-IN-2MB-24LC/OM4 cassette uses polarity scheme type B (Key-up/Key-up). Connect type B MPO (Multi-fiber Push-On, multi-fiber connector)–MPO trunk assemblies to the MPO connectors and use type B MPO adapters.
Which patch cords should be connected to the LAN-FRM-IN-2MB-24LC/OM4 cassette?
Connect duplex LC (Lucent Connector) patch cords with OM4 fiber to the front LC connectors — for example, LAN-2LC-2LC/OM4/SL.
What losses does the LAN-FRM-IN-2MB-24LC/OM4 cassette add?
For all fiber types the insertion loss (IL) is no more than 0.35 dB at the MPO (Multi-fiber Push-On, multi-fiber connector) connector and no more than 0.30 dB at the LC (Lucent Connector) connectors. Take these values into account when calculating the loss budget of the line.
How should MPO (Multi-fiber Push-On, multi-fiber connector) polarity be selected for кассеты LAN-FRM-IN-2MB-24LC/OM4?
According to discussions on specialist network engineering forums, polarity errors with MPO (Multi-fiber Push-On, multi-fiber connector) are among the most frequent causes of a missing link in multi-fiber connector lines. Before installation draw a diagram of the line and check that the transmitter at one end is connected to the receiver at the other. For cassettes, adapters and trunk assemblies of polarity type B (Key-up/Key-up) use type B components throughout the line.
How should the connectors of LAN-FRM-IN-2MB-24LC/OM4 be cleaned before connecting?
Before each connection inspect the end faces of MPO (Multi-fiber Push-On, multi-fiber connector) and LC (Lucent Connector) connectors and clean them if they are dirty. Use the LAN-FT-CL/MPO tool for MPO connectors and LAN-FT-CL/OK1 for LC connectors. Do not touch the end faces with your fingers and close unused connectors with caps.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-FRM-IN-2MB-24LC/OM4 | pcs | 135 × 110 × 40 | 0.18 | 0.000594 |
Package
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-FRM-IN-2MB-24LC/OM4 | box | 230 × 230 × 75 | 0.8 | 0.003968 |
