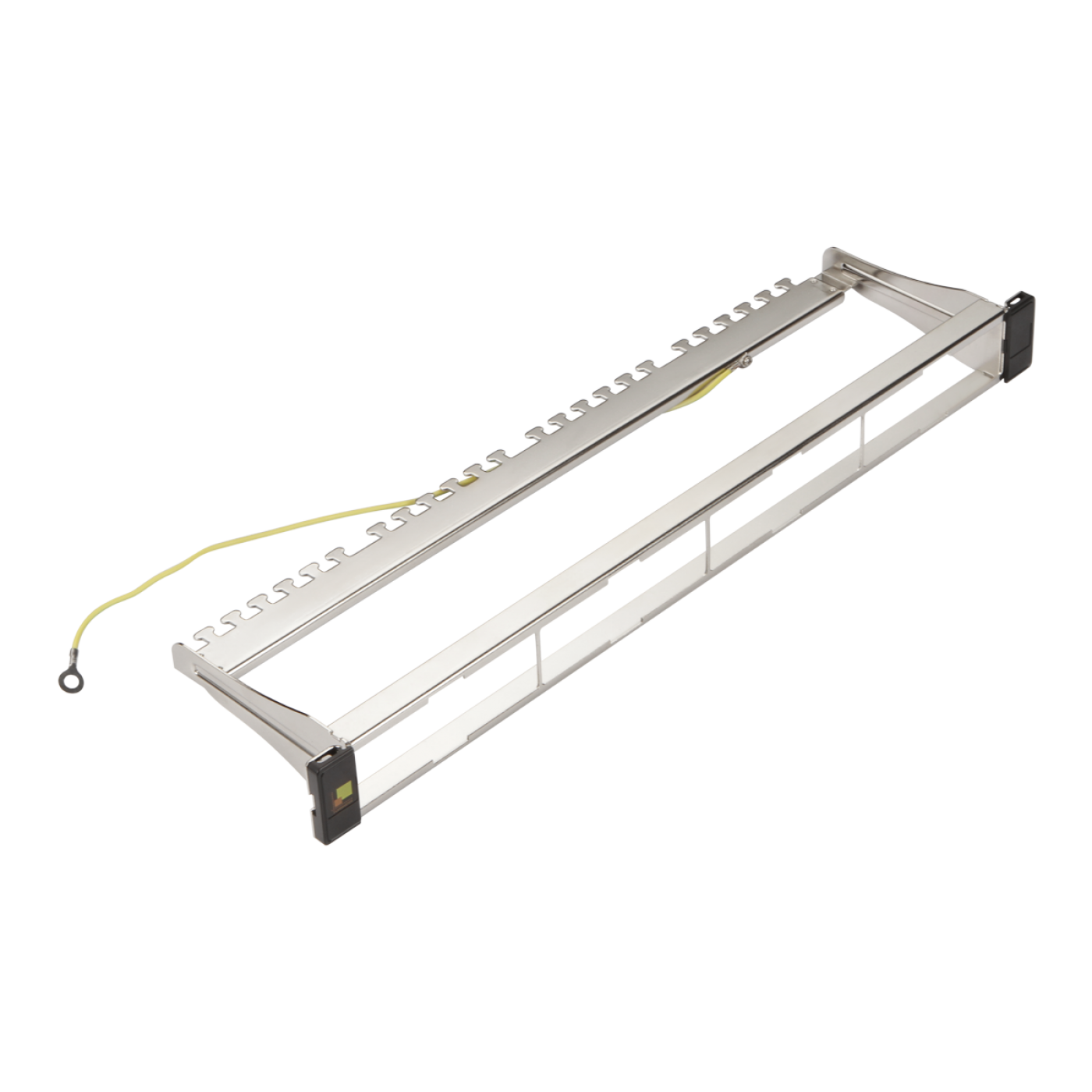

19" modular panel, shielded, for 4 faceplates, 1U

19" modular panel, shielded, for 4 faceplates, 1U

Product Code: LAN-FRM-PP-STP/1U

19" modular panel, shielded, for 4 faceplates, 1U
Model range

The patch panel is designed for cable termination of various SCS subsystems on it and connecting individual network components to each other with patch cords.

The 1U patch panel has 4 slots for special faceplates or cassette modules. The modular panel is easy to install and allows you to increase the speed of work. Faceplates are easily fixed in the openings with latches. Due to its modular design, it allows you to combine blocks from modules of different categories within one panel.

A retention bracket has been added to the panel set for ease of installation and strain relief of the cable. The use of the bracket provides the required bending radius and reliable fastening of cables during termination and subsequent operation. The cable is fixed with plastic ties using special holes in the bracket.

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
LAN-FRM-PP-STP/1U 19" modular panel, shielded, for 4 faceplates, 1U Add to list
