LAN-FRM-PPA-FO/1U Angled Modular Fiber Optic Patch Panel, 19", 1U, 4 Inserts, with Fiber Optic Cable Manager

LAN-FRM-PPA-FO/1U Angled Modular Fiber Optic Patch Panel, 19", 1U, 4 Inserts, with Fiber Optic Cable Manager. Designed for structured cabling systems, featuring angled design for optimal cable bend radius and integrated cable management.
LAN-FRM-PPA-FO/1U

Modular fiber optic patch panel designed for termination and connection of various structured cabling subsystems using patch cords.

1U height panel features 4 slots for mounting specialized faceplates or cassette modules (see compatible products). The modular design simplifies installation and increases work efficiency. Faceplates securely lock into place using snap-in mechanisms.

Modular construction allows combining different module types within a single panel.

The angled panel design ensures proper bend radius for patch cords connected to the panel, making it recommended for horizontal and backbone structured cabling subsystems.

Angled patch panels eliminate the need for intermediate horizontal organizers, maximizing space utilization within the cabinet.

A cable support bracket is included for easy installation and additional cable fixation. The bracket ensures proper bend radius and secure cable retention during termination and throughout operation.

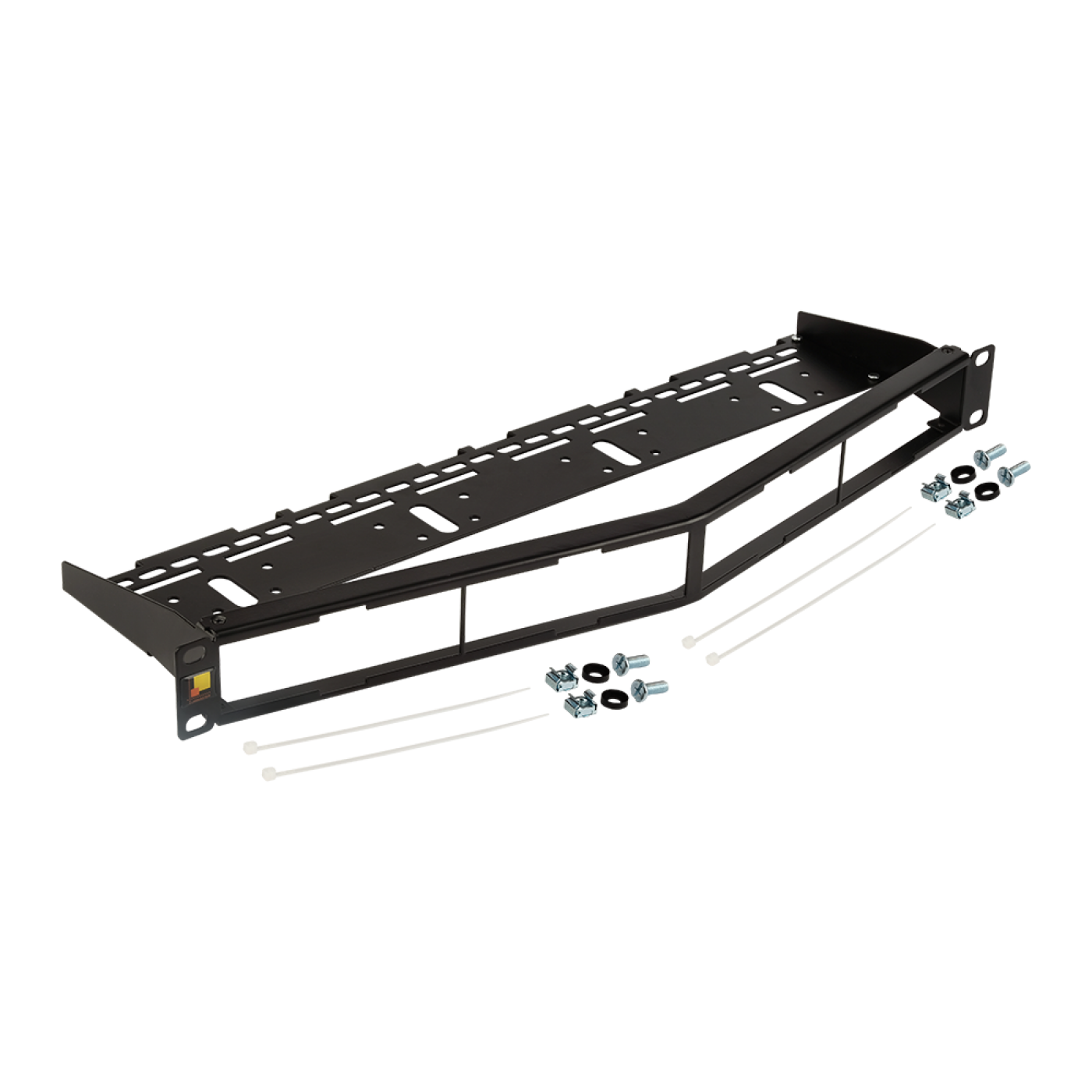

Includes:

  • Modular fiber optic patch panel - 1 unit
  • Cable support bracket - 1 unit
  • Mounting hardware for rails - 1 unit
  • Cable ties - 4 units

Frequently Asked Questions

What is the LAN-FRM-PPA-FO/1U modular patch panel used for?

The 1U LAN-FRM-PPA-FO/1U patch panel is used to terminate cables of various structured cabling subsystems and to connect network components to each other with patch cords. The panel has four slots for front inserts and cassette modules; blocks from different modules can be combined in one panel. A cable support bracket and an optical cable organizer are included.

LAN-FRM-PPA-FO/1U product
LAN-FRM-PPA-FO/1U product
How does the angled LAN-FRM-PPA-FO/1U panel differ from the standard LAN-FRM-PP-FO/1U panel?

The angled design ensures a correct bend radius for connected patch cords, so the panel is recommended for the horizontal and backbone subsystems of structured cabling. Angled panels let you do without intermediate horizontal organizers and use cabinet space more efficiently.

What is included with the LAN-FRM-PPA-FO/1U panel?

The set includes: patch panel — 1 pc, cable fixing bracket — 1 pc, mounting hardware for the rails — 1 pc, cable ties — 4 pcs. The bracket ensures the required bend radius and reliable fixation of cables during termination and in operation.

Which inserts and cassettes should be installed in the LAN-FRM-PPA-FO/1U panel?
How should unused slots of the LAN-FRM-PPA-FO/1U panel be closed?

Install LAN-FRM-IN-XXX blanking plates in the free slots: they are held by side latches without tools and protect the inside of the panel from dust.

How should an optical cable be secured in the LAN-FRM-PPA-FO/1U panel?

Lay the cable in the panel organizer, secure it with the supplied support bracket and ties and then terminate the cable. Keep the fiber bend radius no smaller than permitted for the chosen cable.
