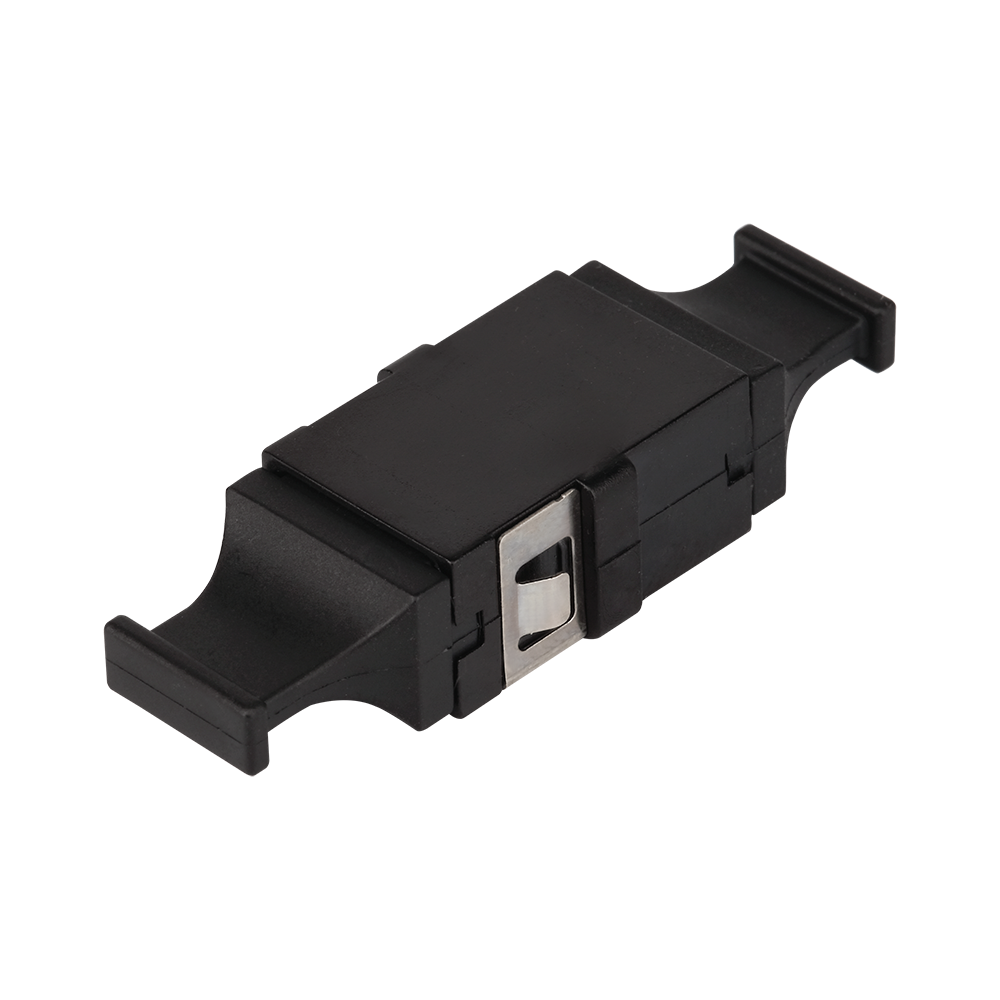

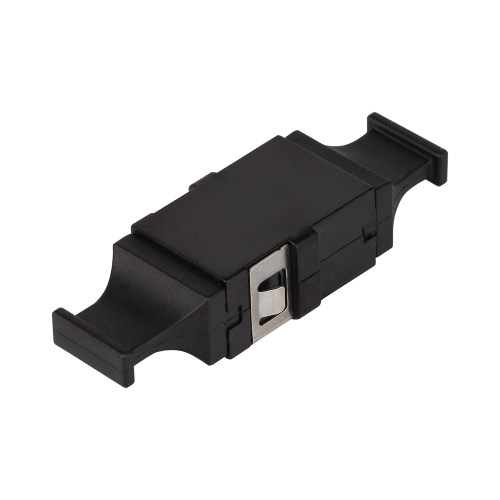

LANMASTER MPO optical adapter with flanges, black

LANMASTER MPO optical adapter with flanges, black LAN-MPO-xM-MM: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-MPO-xM-MM

Adapters are pass-through sockets and are used for precise centering of connector tips and for fixing connectors pressed against each other.

Pass-through adapters provide connection of two MPO connectors, allow interconnecting MPO-MPO cable trunks or break-out cable assembles.

Fixing adapters in the front panel of a patch panel  is made by snap-on latches, you can use special screws to fix the adapters for additional reliability. Includes plastic caps to protect connectors from dust and dirt.

Frequently Asked Questions

What are the LAN-MPO-xM-MM adapters used for?

The LAN-MPO-xM-MM adapters are pass-through sockets for joining two MPO (Multi-fiber Push-On, multi-fiber connector) connectors: they precisely align the ferrules and hold the connectors pressed against each other. They are used to join MPO–MPO trunk assemblies and breakout cables. Plastic caps are supplied.

LAN-MPO-xM-MM product
LAN-MPO-xM-MM product
What is the difference between LAN-MPO-AM-MM, LAN-MPO-BM-MM and LAN-MPO-BM-OM4?

LAN-MPO-AM-MM is type A (Key-up/Key-down), LAN-MPO-BM-MM is type B (Key-up/Key-up), both black. LAN-MPO-BM-OM4 is type B for OM4 multimode fiber, with a pink body. The adapter type must match the polarity diagram of the line.

How are the LAN-MPO-xM-MM adapters mounted in a panel?

Flanged adapters are secured in the front panel of the frame with snap-in clips. For extra reliability use adapter fixing screws. Suitable examples are the LAN-MCSP-6MPO-N inserts and LAN-FRM-IN-8MPO adapter strips.

How should MPO (Multi-fiber Push-On, multi-fiber connector) polarity be selected for адаптеров LAN-MPO-xM-MM?

According to discussions on specialist network engineering forums, polarity errors with MPO (Multi-fiber Push-On, multi-fiber connector) are among the most frequent causes of a missing link in multi-fiber connector lines. Before installation draw a diagram of the line and check that the transmitter at one end is connected to the receiver at the other. For cassettes, adapters and trunk assemblies of polarity type B (Key-up/Key-up) use type B components throughout the line.

How should the LAN-MPO-xM-MM adapters be cleaned?

Before connecting, remove the caps and inspect the MPO (Multi-fiber Push-On, multi-fiber connector) connector end faces; clean them with the LAN-FT-CL/MPO tool if they are dirty. Close unused adapters with the supplied caps.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-MPO-AM-MM pcs 35 × 25 × 10 0.005 0.000009
LAN-MPO-BM-MM pcs 35 × 25 × 10 0.004 0.000009

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-MPO-AM-MM pack 200 × 150 × 15 0.25 0.00045
LAN-MPO-BM-MM pack 210 × 170 × 40 0.19 0.001428

Product Codes (3)

  • LANMASTER MPO optical adapter with flanges, black
  • LANMASTER MPO optical adapter with flanges, black, type B (Key-up/Key-up)
  • LANMASTER MPO OM4, type B (Key-up/Key-up)
