fiber raceway joiner, yellow
Purpose:
- Joins straight fiber raceway sections and fittings of the same width.
Features:
- Fast installation.
- Mechanical connection for straight sections and fittings.
Package includes:

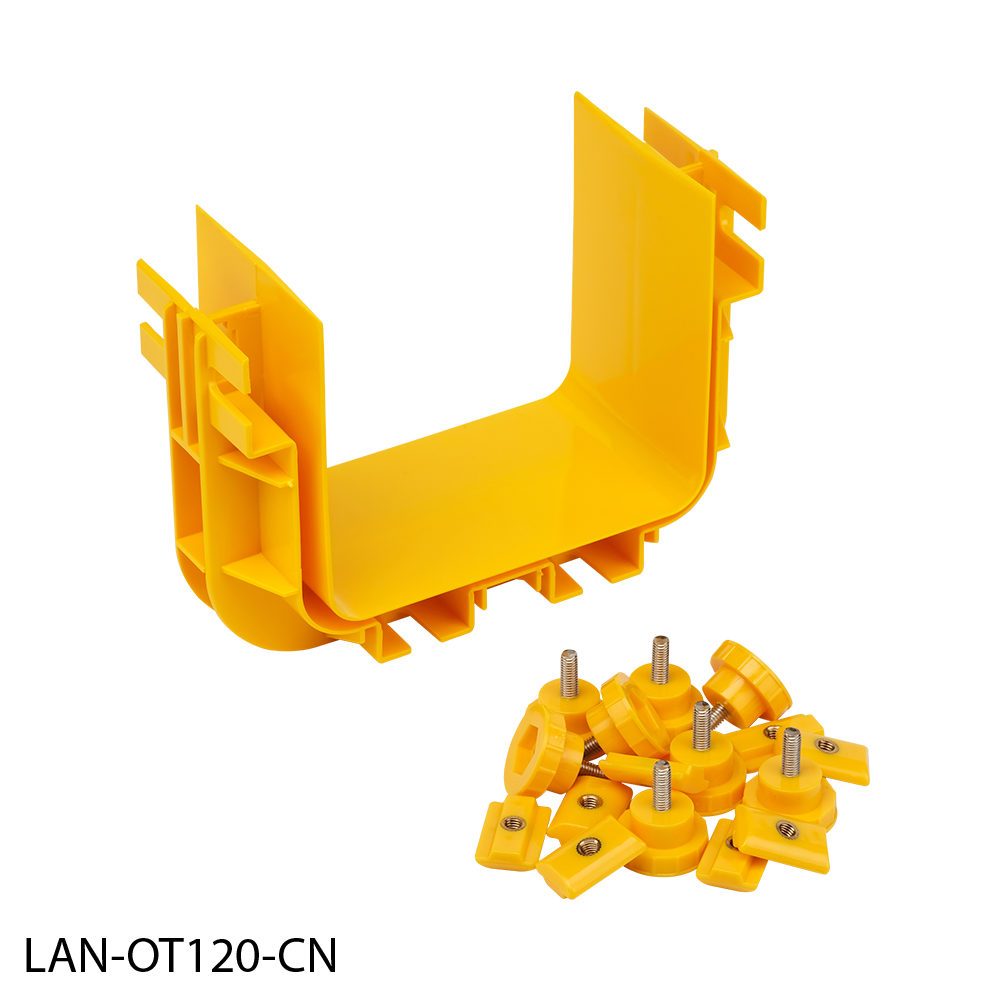

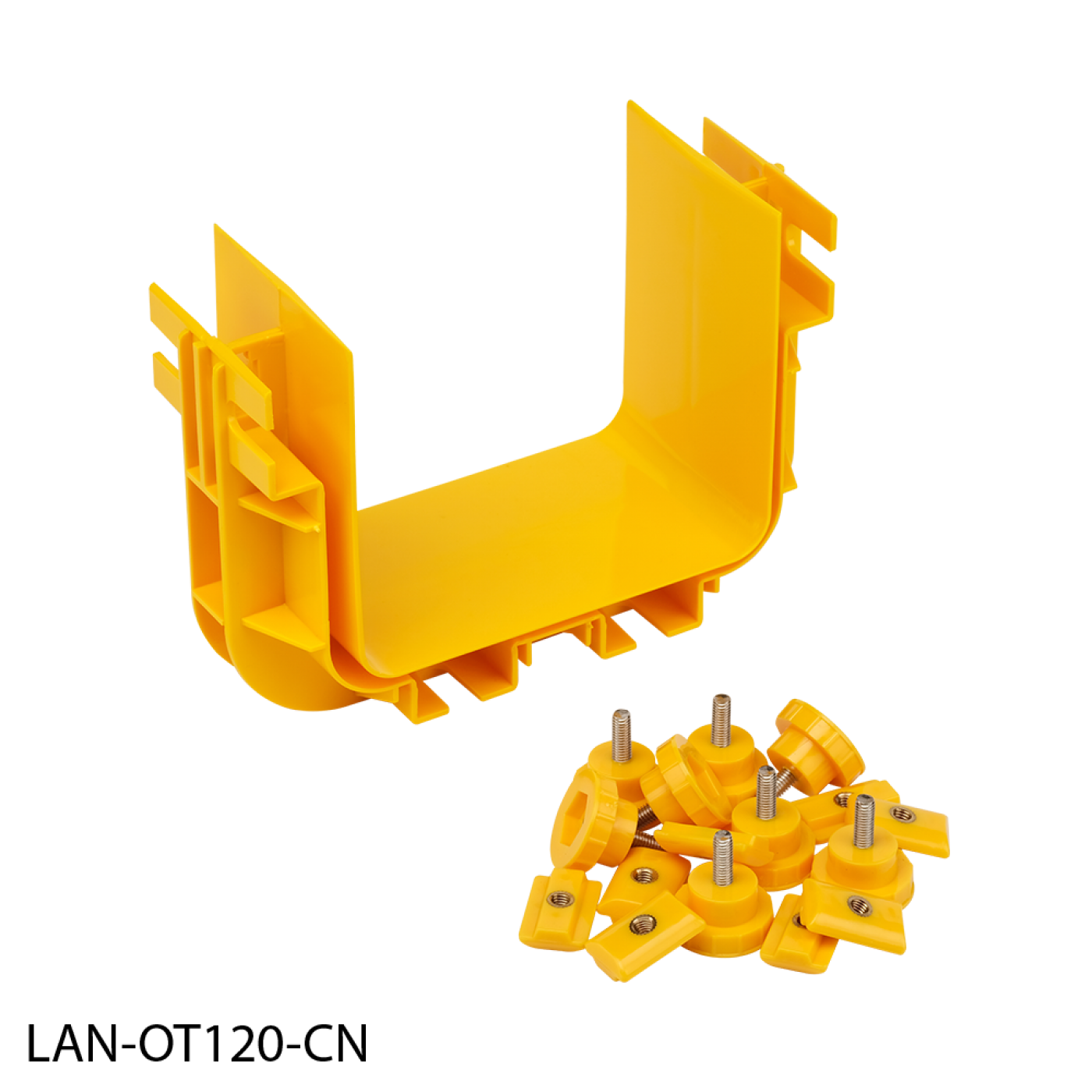

- LAN-OT120-CN: joiner - 1 pc., plastic screws and plastic nuts - 8 pcs.
- LAN-OT240-CN: joiner - 1 pc., plastic screws and plastic nuts - 8 pcs.
- LAN-OT360-CN: joiner - 1 pc., plastic screws and plastic nuts - 10 pcs.
Typical application:
- Joining straight fiber raceway sections or connecting a straight section to a tee, bend, cross or reducer.
Frequently Asked Questions
What is the LAN-OTxxx-CN connector for?
The connector joins two optical tray sections of the same width end to end, and it also attaches other route accessories — bends, tees, and crosses — to a straight section.
What widths is the connector available in?
The connector is made for four tray widths: LAN-OT120-CN (120 mm), LAN-OT240-CN (240 mm), LAN-OT360-CN (360 mm), and LAN-OT600-CN (600 mm). Match the connector strictly to the tray width in use.
What does the connector kit include?
The kit includes one yellow connecting element and plastic screws with nuts for fastening: 8 sets for 120 mm and 240 mm trays, 10 sets for 360 mm and 600 mm trays.
Is a connector needed when installing bends and tees?
Yes, most LANMASTER optical tray bends, tees, and crosses attach to straight sections through a LAN-OTxxx-CN connector of the matching width. The number of connectors needed per joint is given in that accessory's own description.
Can the connector join trays of different widths?
No, the connector is designed to join elements of the same width. To transition between tray widths, use the dedicated LAN-OTxxx-RDxxx reducer of the matching size.
Does this route element need to be grounded?
The element is made of plastic and is not electrically conductive. The bonding requirement applies to metallic cable trays that support power conductors — it does not apply to LANMASTER's nonmetallic optical trays.
Are extra tools needed to install the connector?
No, the connector is installed by hand using the plastic screws and nuts included in the kit; no special tool is required.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-OT120-CN | pcs | 170 × 70 × 80 | 0.19 | 0.000952 |
| LAN-OT240-CN | pcs | 290 × 60 × 70 | 0.23 | 0.001218 |
| LAN-OT360-CN | pcs | 400 × 120 × 75 | 0.36 | 0.0036 |
| LAN-OT600-CN | pcs | 600 × 100 × 130 | 0.86 | 0.0078 |
