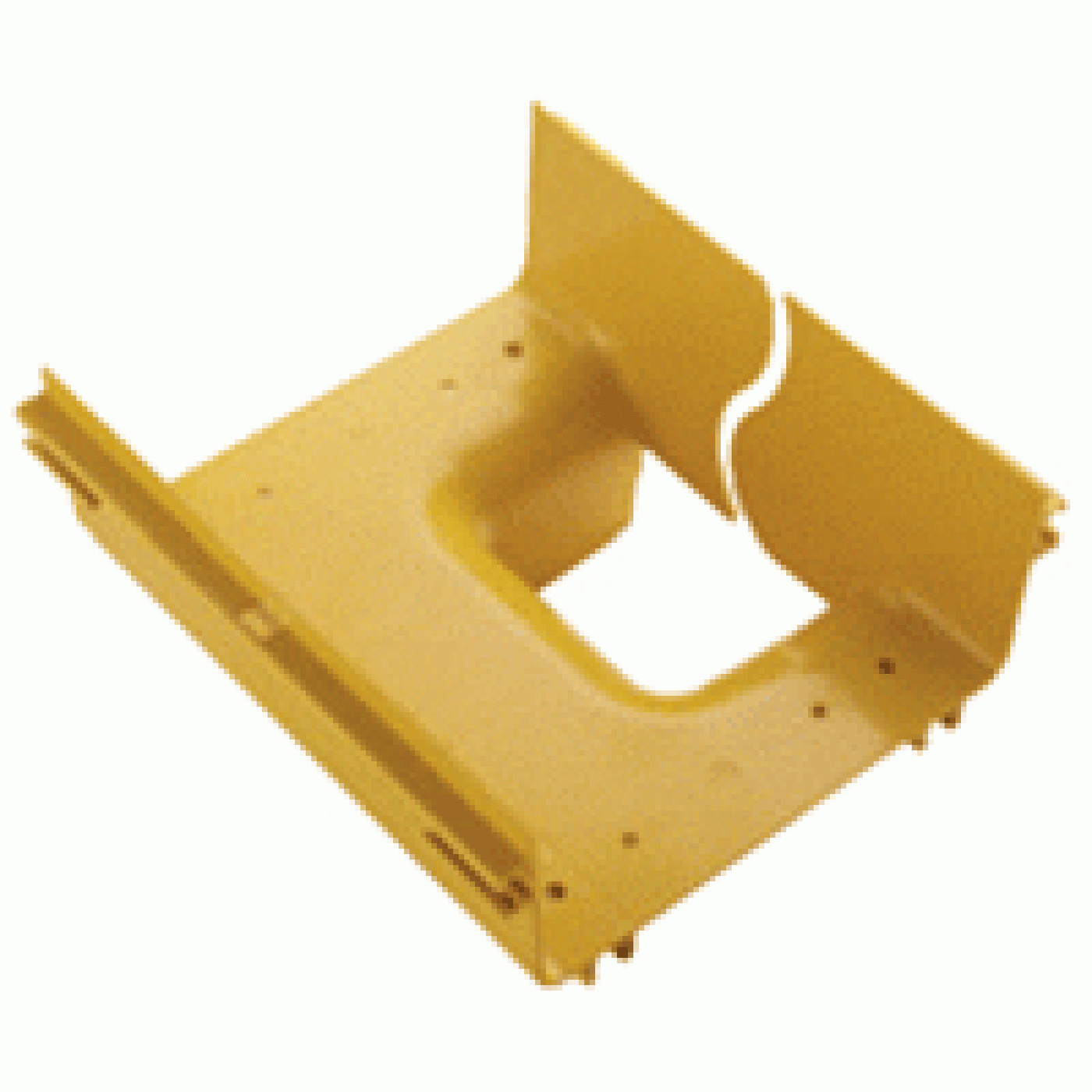

240 mm fiber raceway vertical tee, yellow
Purpose:
- Creates a vertical branch from a 240 mm fiber raceway to a 120 mm fiber raceway.
Features:
- Fast installation.
- High load capacity.
- Side opening allows cables to be routed without pulling them through the fitting.
Package includes:
- Vertical tee - 1 pc.
Typical application:
- Vertical branch from a 240 mm main fiber raceway to a 120 mm branch route.
Frequently Asked Questions
What is the LAN-OT240-VT120 fitting for?
The fitting creates a vertical branch of a 120 mm-wide route off a 240 mm-wide route, joining the trays in the vertical plane.
How does the vertical branch differ from the horizontal LAN-OT240-HT120?
LAN-OT240-VT120 routes the narrower branch vertically — up or down relative to the main route. LAN-OT240-HT120 makes the same width change, but the branch stays in the same horizontal plane as the main route.
What is the side opening on this fitting for?
The side opening lets individual cables leave the route without disassembling the whole joint — useful when part of the cords need to exit the route at exactly this point.
What does the fitting kit include?
The kit includes one yellow vertical-branch element. Three LAN-OT120-CN connectors are recommended for assembling the joint.
Does this route element need to be grounded?
The element is made of plastic and is not electrically conductive. The bonding requirement applies to metallic cable trays that support power conductors — it does not apply to LANMASTER's nonmetallic optical trays.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-OT240-VT120 | pcs | 300 × 100 × 280 | 0.575 | 0.0084 |
