120 mm fiber raceway end cap with corrugated tubing opening, yellow

120 mm fiber raceway end cap with corrugated tubing opening, yellow. LANMASTER catalog item for cable management and cable routing projects.
LAN-OT120-ND-Txx

Purpose:

  • The end cap with a hole is designed for flexible cable routing from the 120 mm cable tray. It can also be installed on the LAN-OT120-OB spillout.

Features:

  • Varieties are available for three different diameters of corrugated tubing: 42mm, 56mm, and 80mm.

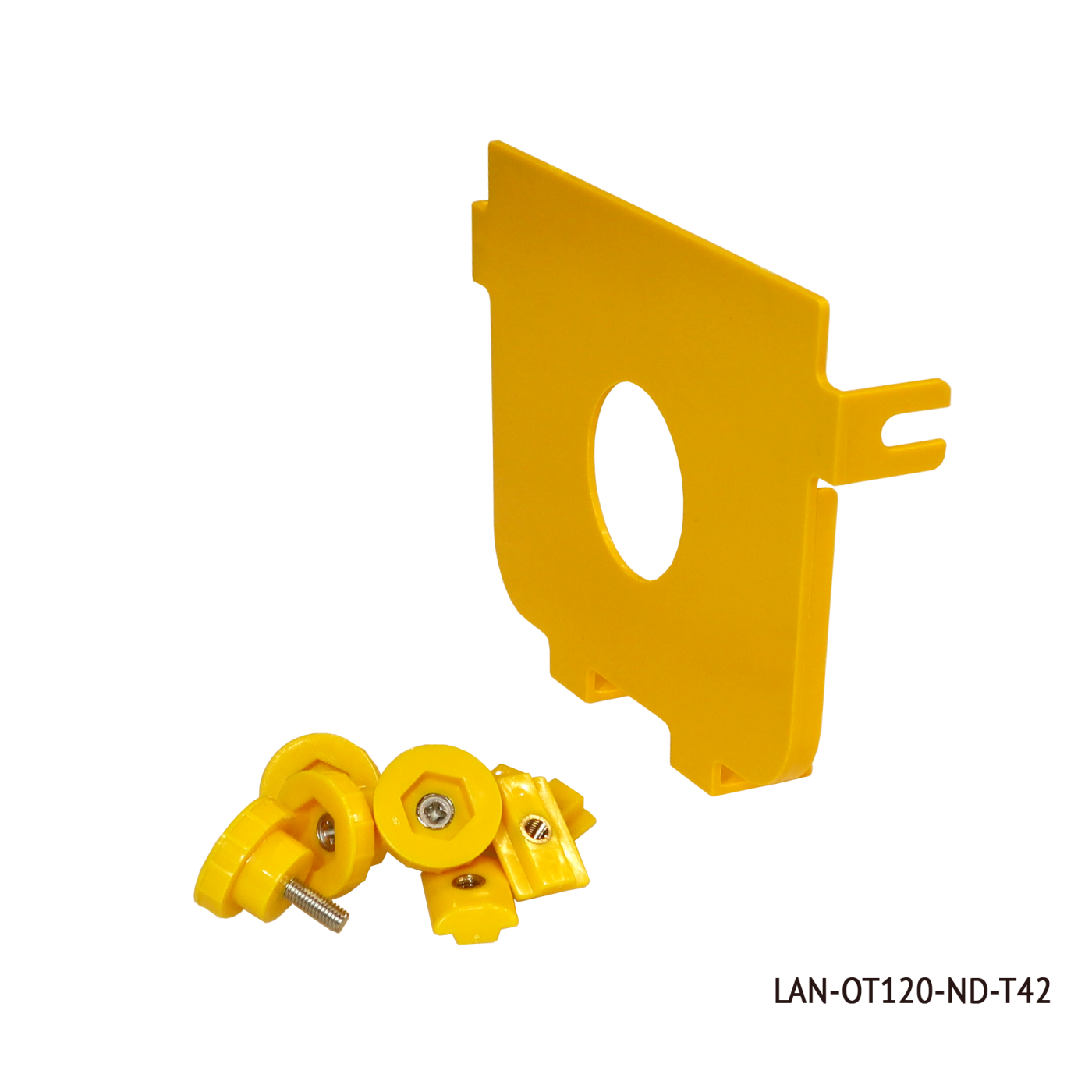

Package includes:

  • end cap – 1 pc.
  • plastic head cap bolt - 4 pcs.
  • plastic nut - 4 pcs.


The end cap is mounted on the LAN-OT120-OB spillout with a 56mm pipe hole.


To accomplish this connection, you will need:

  • LAN-OT120-OB spillout – 1 pc.
  • LAN-OT120-ND-T56 end cap - 1 pc.
  • LAN-OT-TUBE-56 corrugated tubing – 1 pc.



Frequently Asked Questions

What is the LAN-OT120-ND-Txx end cap for?

The end cap closes the end of a 120 mm optical tray while letting a cable exit flexibly through a corrugated-tube opening. It can also be mounted on the LAN-OT120-OB cable drop.

What variants is the end cap available in?

The end cap comes with a pipe opening in three diameters: 42 mm (LAN-OT120-ND-T42), 56 mm (LAN-OT120-ND-T56), and 80 mm (LAN-OT120-ND-T80). Pick the opening diameter to match the LAN-OT-TUBE-xx corrugated tube in use.

How does this end cap differ from the plain LAN-OTxxx-ND?

The plain LAN-OTxxx-ND cap is solid, with no openings. LAN-OT120-ND-Txx has a corrugated-tube opening and is used where the cable needs to exit the tray through a protective tube rather than directly.

What does the end cap kit include?

The kit includes one cap element and four plastic screws with nuts for attaching it to the tray.

What other route elements is this end cap compatible with?

The end cap is compatible with the LAN-OT100x120 straight section, the LAN-OT120-OB cable drop, and the LAN-OT120-VT120 and LAN-OT240-VT120 vertical branches — provided the pipe-opening diameter matches.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-OT120-ND-T56 pcs 150 × 115 × 25 0.35 0.000431
LAN-OT120-ND-T42 pcs 150 × 115 × 25 0.4 0.000431
LAN-OT120-ND-T80 pcs 150 × 115 × 25 0.35 0.000431

Product Codes (3)

  • 120 mm fiber raceway end cap with 56 mm corrugated tubing opening, yellow
  • 120 mm fiber raceway end cap with 42 mm corrugated tubing opening, yellow
  • 120 mm fiber raceway end cap with 80 mm corrugated tubing opening, yellow
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
