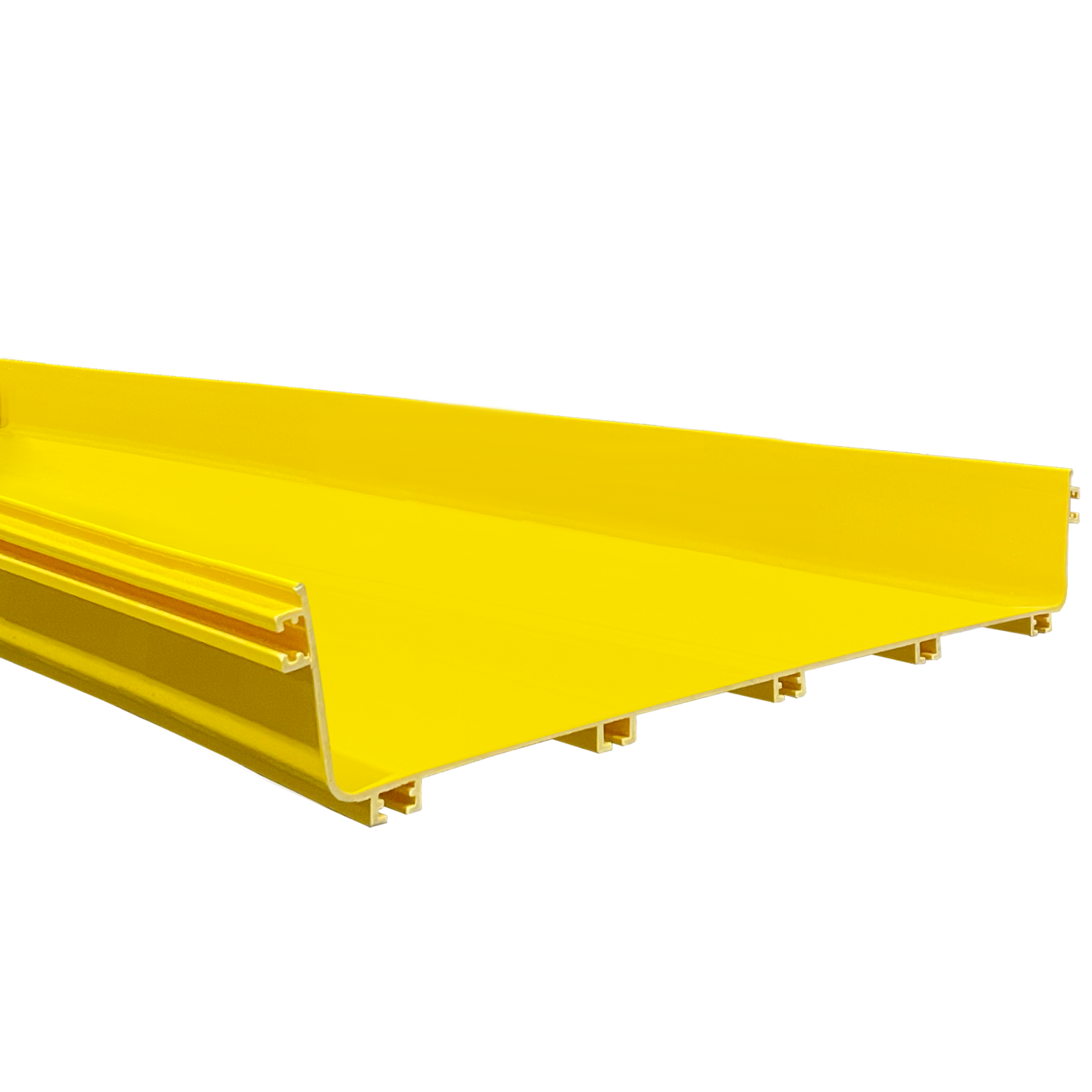

100 x 600 mm fiber raceway straight section, 2 m, yellow

100 x 600 mm fiber raceway straight section, 2 m, yellow
LAN-OT100x600


Frequently asked questions and answers

What is the LAN-OT100x600 section designed for?

It is a straight optical cable tray section, 100×600 mm wide and 2 m long, used to route optical patch cords and cables in racks, cabinets and server rooms.

What material is the section made of?

The straight section is made of PVC rated flame-retardant to GB/T 2048-1996 (class FV-0); the connecting parts are made of impact-resistant ABS plastic.

How much load does the tray support?

The maximum load is 30 kg per linear meter. Distribute cables evenly along the tray length and do not exceed this value.

Does this section need a cover?

A cover is sold separately — LAN-OT100xxxx-CVR (ближайший типоразмер) fits this width. It protects the routed optical cords from dust and moisture and is easy to remove for maintenance.

Can several sections be joined in a run?

Yes, sections of the same width connect to each other and to compatible LANMASTER accessories (bends, tees, transitions) to build a continuous route.

Is the section suitable for outdoor use?

The manufacturer states indoor use in racks, cabinets and server rooms. For outdoor installation, separately verify the material's UV resistance and temperature range.

How does the tray perform at low and high temperatures?

In LANMASTER's test results, the material shows no cracking after 16 hours at –40 °C, and at +60 °C under 20 N lateral load the deformation is no more than 0.85 mm — well within the 2 mm standard limit.

How flame-resistant is the tray?

The material self-extinguishes within 2 seconds after a 10-second open-flame exposure, well within the 30-second limit specified by GB/T 2048-1996.

Can the section be cut to length on site?

The manufacturer does not provide a separate cutting procedure for this section. If the route is shorter than 2 m, plan the layout using available sizes and accessories, or confirm with the supplier whether cutting is possible before installation.

How is the tray mounted to a rack or wall?

The exact mounting method is not detailed in public specifications. Before installation, confirm the recommended fasteners for your specific rack, cabinet or wall with the supplier.

Why route optical cable along the top of racks instead of under the floor?

According to the manufacturer, routing cables along the top of racks improves equipment cooling compared with an underfloor system and makes the route easier to access for maintenance.

Does this tray need to be grounded?

The tray is made of PVC and ABS plastic — it is non-conductive, so the grounding requirement that applies to metal trays does not apply here. The tray itself does not need grounding; ground only the metal equipment and structures near the route as required by the project.

How does the tray affect the optical cord bend radius?

The tray provides a straight section of the route; the bend radius itself is maintained by the matching LANMASTER turns and accessories at the joints. Do not route cords with a bend tighter than the minimum bend radius stated by the cable manufacturer, even inside the tray.

Can several trays be installed stacked on top of each other?

The manufacturer does not give a separate rating for vertical stacking of sections. When planning multiple tiers, provide independent supports or fasteners for each tier and do not let the lower tray bear the weight of the one above it.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-OT100x600 pcs 2000 × 640 × 130 13.1 0.1664

Product Codes (1)

  • 100x600 mm fiber raceway straight section, 2 m, yellow
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
