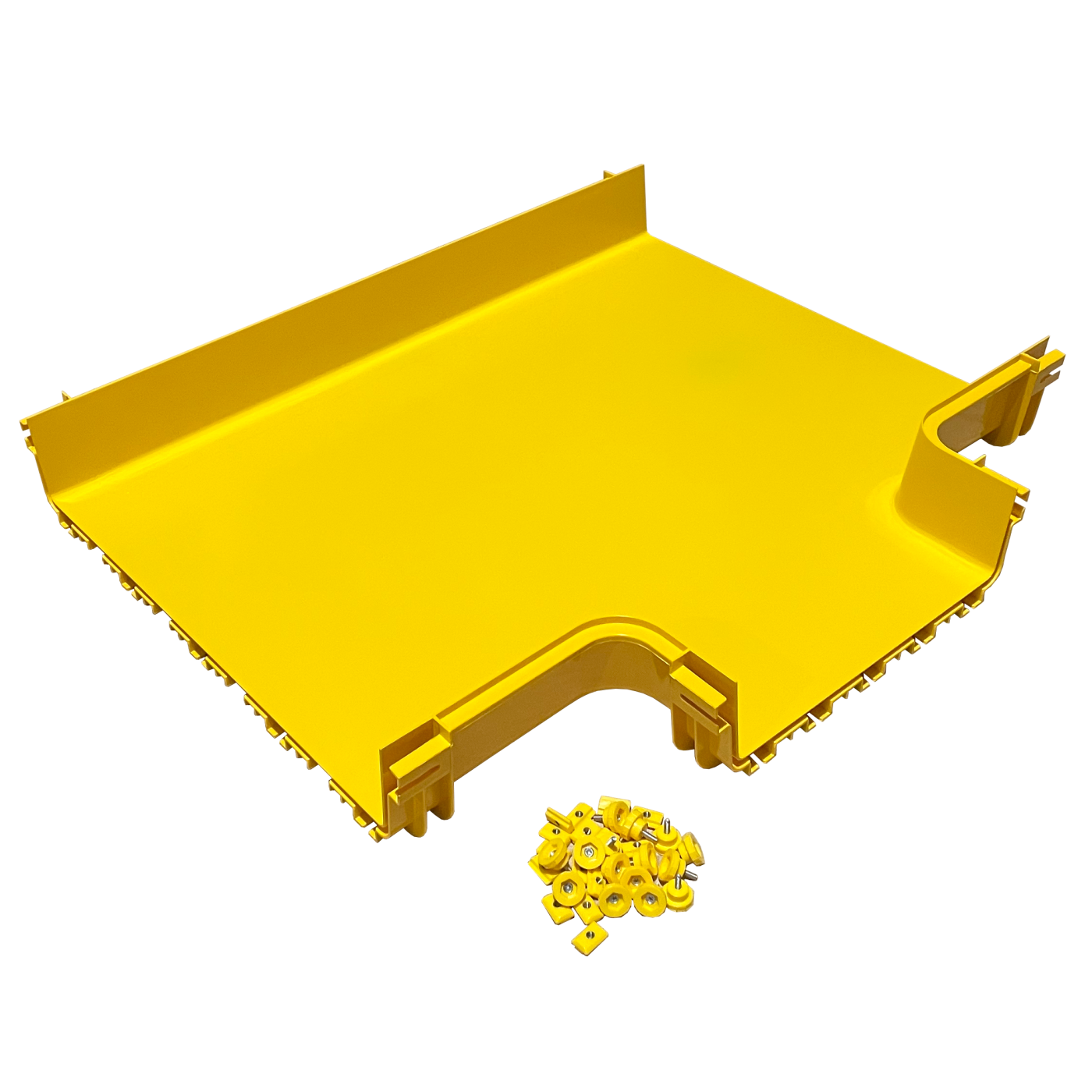

600 mm fiber raceway horizontal tee/reducer, yellow

600 mm fiber raceway horizontal tee/reducer, yellow
LAN-OT600-HT360/NC

Purpose:

  • Organizing a T-shaped junction between a 360 mm wide fiber raceway and a 600 mm wide fiber raceway in the horizontal plane.

Features:

  • easy installation,
  • high load capacity.

Package includes:

  • horizontal tee,
  • plastic head cap bolt and plastic nut - 15 pcs.


Connect two straight fiber raceway sections that are 600 mm wide and one straight fiber raceway section that is 360 mm wide.


To accomplish this connection, you will need:

  • LAN-OT600-HT360/NC horizontal tee – 1 pc.

Frequently Asked Questions

What is the LAN-OT600-HT360/NC fitting for?

The fitting creates a T-shaped branch of a 360 mm-wide route off a 600 mm-wide route in the horizontal plane, and it attaches to the adjoining sections without separate LAN-OTxxx-CN connectors.

How is a joint assembled with this fitting?

The fitting is installed where a 360 mm branch route leaves the 600 mm main route; the fasteners for attaching to both adjoining sections are included in the kit.

Does this fitting need a cover?

No, LANMASTER does not make a separate cover for the 600 mm width — covers in this series are offered only for some narrower-width fittings.

Does this route element need to be grounded?

The element is made of plastic and is not electrically conductive. The bonding requirement applies to metallic cable trays that support power conductors — it does not apply to LANMASTER's nonmetallic optical trays.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-OT600-HT360/NC pcs 890 × 790 × 100 4.36 0.07031

Product Codes (1)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
