fiber raceway end cap, yellow

fiber raceway end cap, yellow LAN-OTxxx-ND: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-OTxxx-ND

Purpose:

  • Designed for installation on open ends of fiber raceway sections and fittings at the end of a route.

Features:

  • Fast installation.
  • Closes the open end of the raceway route.

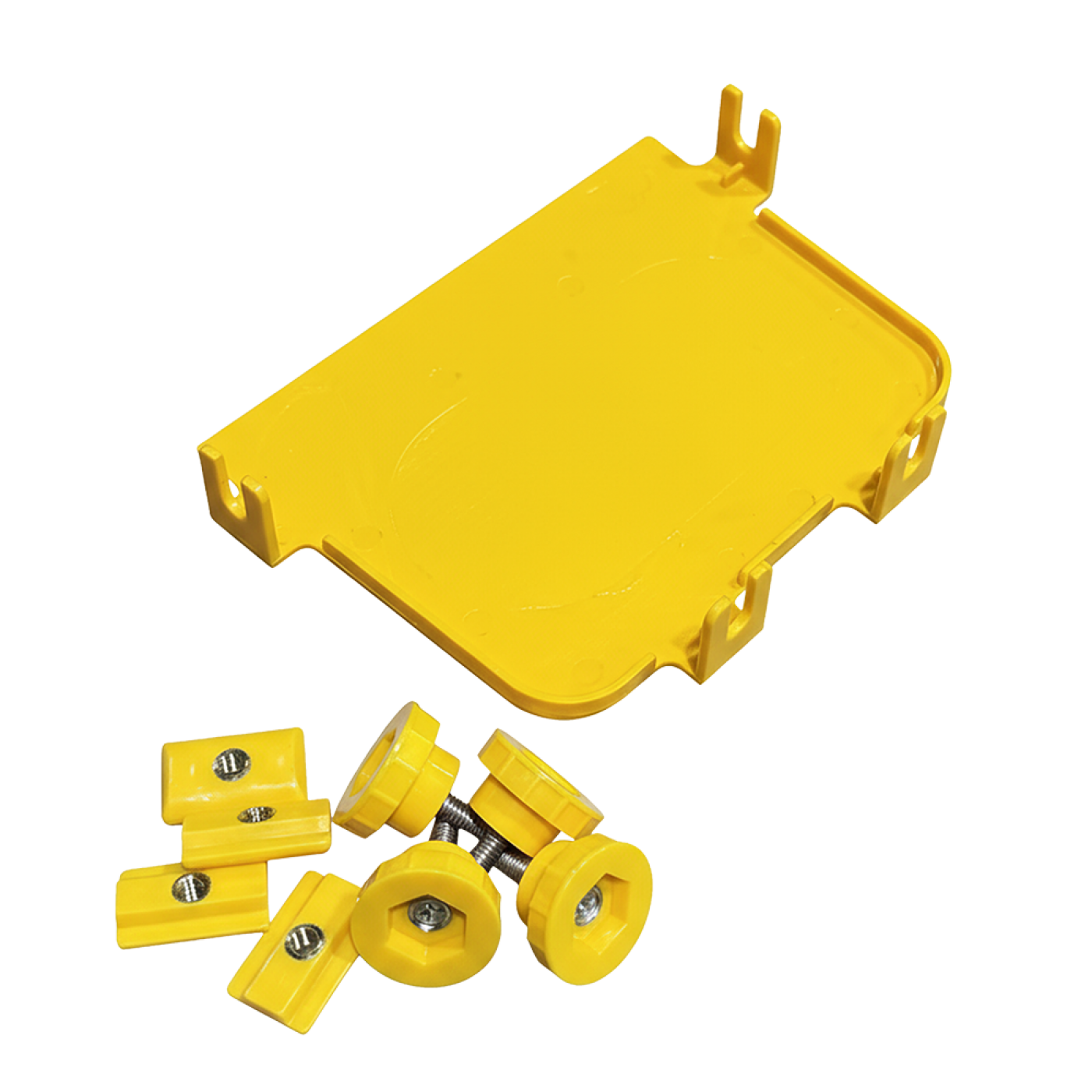

Package includes:

  • End cap - 1 pc.
  • Plastic screw and plastic nut - 4 pcs.

Typical application:

  • Closing the end of a fiber raceway route.

Frequently Asked Questions

What is the LAN-OTxxx-ND end cap for?

The end cap closes the open end of an optical tray where a route terminates, protecting the cables laid inside from dust and mechanical impact and keeping them from slipping out of the tray.

What widths is the end cap available in?

The end cap is made for several tray widths — for example, LAN-OT120-ND (120 mm), LAN-OT240-ND, LAN-OT360-ND, and LAN-OT600-ND. Match the end cap strictly to the tray width.

How does the LAN-OTxxx-ND end cap differ from the LAN-OTxxx-TS end overlay?

LAN-OTxxx-ND is a flat cap that simply closes the open end of the tray. LAN-OTxxx-TS serves a similar purpose but also maintains the required bend radius for cables that exit vertically downward through the tray's end.

Are extra fasteners needed to install the end cap?

The end cap is installed using the plastic screws included in the kit. No extra fasteners are needed.

Can the LAN-OTxxx-ND end cap be used where a cable exits through a pipe opening?

No, a separate version is made for that case — LAN-OT120-ND-Txx, which has a hole in the cap for a corrugated tube with a diameter of 42, 56, or 80 mm.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-OT120-ND pcs 160 × 110 × 25 0.04 0.00044
LAN-OT240-ND pcs 260 × 120 × 25 0.07 0.00078
LAN-OT360-ND pcs 370 × 110 × 20 0.11 0.000814
LAN-OT600-ND pcs 640 × 120 × 50 0.24 0.00384

Product Codes (4)

  • 120 mm fiber raceway end cap, yellow
  • 240 mm fiber raceway end cap, yellow
  • 360 mm fiber raceway end cap, yellow
  • 600 mm fiber raceway end cap, yellow
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
