fiber raceway horizontal tee, yellow

fiber raceway horizontal tee, yellow LAN-OTxxx-ET/NC: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-OTxxx-ET/NC

Purpose:

  • Creating a T-shaped branch of the channel in the horizontal plane.
  • T-shaped joining of fiber raceway sections of the same width.

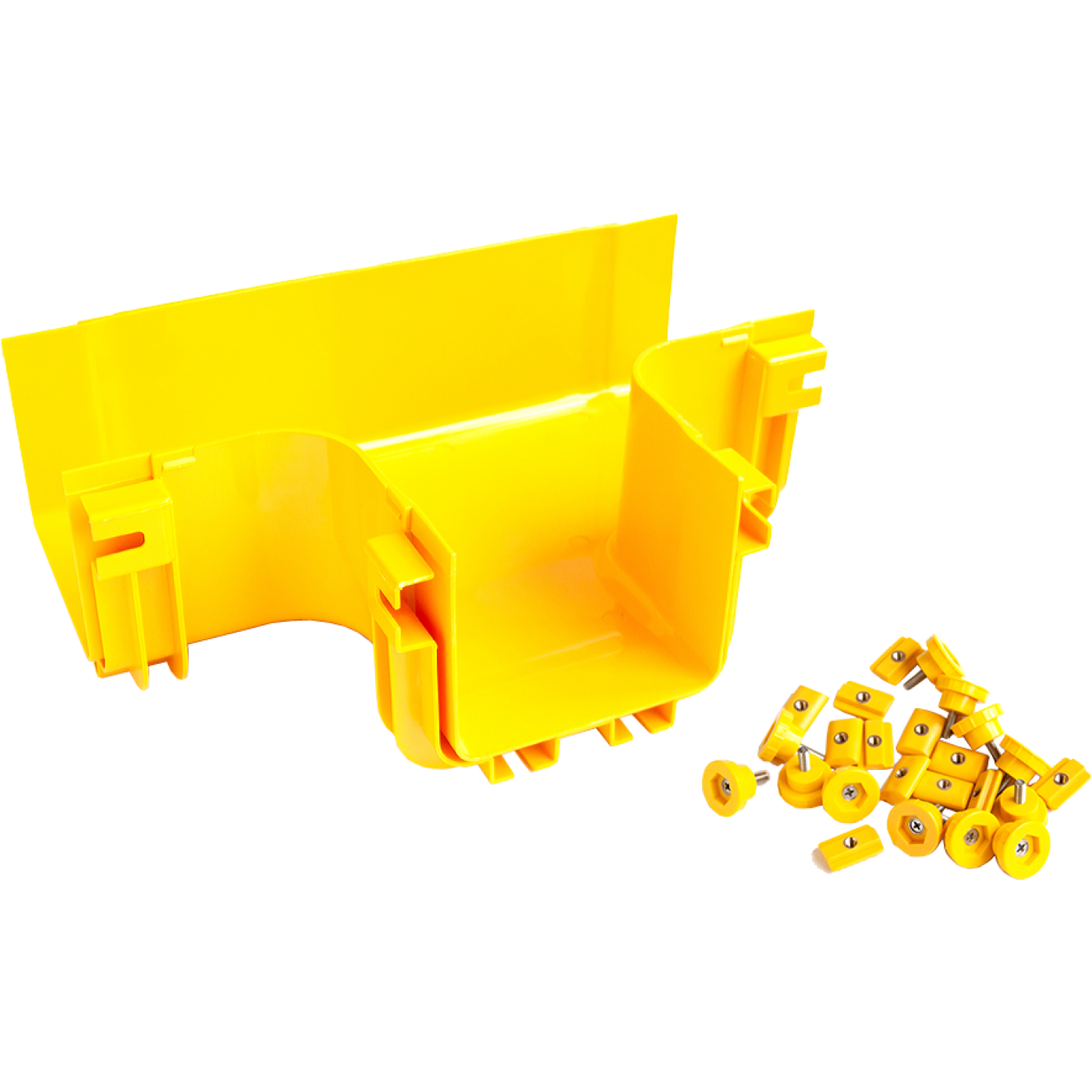

Package includes:

  • horizontal tee - 1 pc,
  • plastic head cap bolt and plastic nut and plastic nut - 12 pcs.

Frequently Asked Questions

What is the LAN-OTxxx-ET/NC fitting for?

The fitting creates a T-shaped branch in a horizontal optical tray run, the same as LAN-OTxxx-ET, but it attaches to the adjoining sections without separate LAN-OTxxx-CN connectors — the fastening for the joint is already built into the fitting.

What is the difference between LAN-OTxxx-ET/NC and the regular LAN-OTxxx-ET?

The "/NC" designation means installation without connectors: the LAN-OTxxx-ET/NC kit includes plastic screws and nuts for attaching directly to the adjoining tray sections, while LAN-OTxxx-ET requires separately purchased LAN-OTxxx-CN connectors.

What widths is the fitting available in?

The fitting is made for tray widths of 120, 240, and 360 mm (LAN-OT120-ET/NC, LAN-OT240-ET/NC, LAN-OT360-ET/NC).

What does the kit include?

The kit includes one yellow T-shaped element and plastic screws with nuts for attaching to the adjoining tray sections directly, without extra connectors.

Does this fitting need a cover?

The cover is purchased separately — LAN-OTxxx-ETC of the matching width fits this fitting.

Does this route element need to be grounded?

The element is made of plastic and is not electrically conductive. The bonding requirement applies to metallic cable trays that support power conductors — it does not apply to LANMASTER's nonmetallic optical trays.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-OT120-ET/NC pcs 350 × 140 × 240 0.59 0.01176
LAN-OT240-ET/NC pcs 470 × 130 × 370 1.04 0.022607
LAN-OT360-ET/NC pcs 600 × 500 × 120 2.4 0.036
LAN-OT600-ET/NC pcs 780 × 880 × 120 4.67 0.082368

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-OT120-ET/NC box 500 × 500 × 500 8.78 0.125
LAN-OT240-ET/NC box 500 × 500 × 500 7.81 0.125

Product Codes (4)

Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
