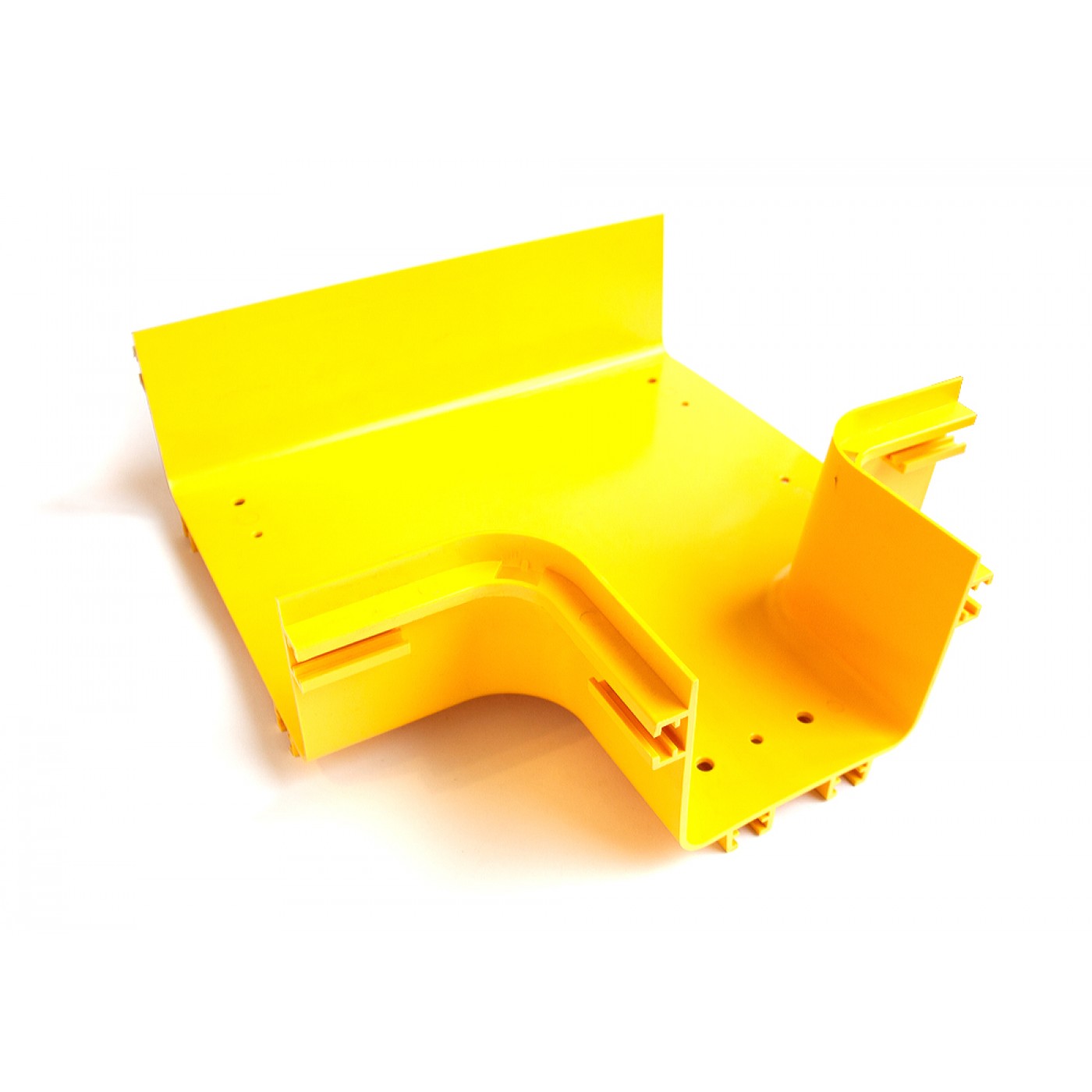

240 mm fiber raceway horizontal tee/reducer, yellow

240 mm fiber raceway horizontal tee/reducer, yellow
LAN-OT240-HT120

Purpose:

  • Creates a horizontal T-branch from a 240 mm fiber raceway to a 120 mm fiber raceway.

Features:

  • Fast installation.
  • High load capacity.
  • Maintains a controlled fiber routing path at the branch point.

Package includes:

  • Horizontal tee/reducer - 1 pc.

Typical application:

  • Joining two 240 mm straight sections with one 120 mm branch section.

Frequently Asked Questions

What is the LAN-OT240-HT120 fitting for?

The fitting creates a T-shaped branch of a 120 mm-wide route off a 240 mm-wide route in the horizontal plane.

How is a joint assembled with this fitting?

A typical assembly uses one LAN-OT240-HT120 fitting, one LAN-OT120-CN connector on the branch side, and two LAN-OT240-CN connectors on the 240 mm main route.

How does LAN-OT240-HT120 differ from LAN-OT240-HT120/NC?

LAN-OT240-HT120 attaches to the adjoining sections through separate LAN-OTxxx-CN connectors. LAN-OT240-HT120/NC makes the same branch but installs without extra connectors — the fastening is already included in the kit.

Does this fitting need a cover?

The cover is purchased separately — LAN-OT240-HT120C fits this fitting.

Can this fitting be used for a branch to a different tray width?

No, the fitting is built specifically for a 120 mm branch off a 240 mm route. For other width combinations, use the matching accessory in the same series, such as LAN-OT360-HT120 or LAN-OT600-HT360/NC.

Does this route element need to be grounded?

The element is made of plastic and is not electrically conductive. The bonding requirement applies to metallic cable trays that support power conductors — it does not apply to LANMASTER's nonmetallic optical trays.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-OT240-HT120 pcs 360 × 100 × 350 0.704 0.0126

Product Codes (1)

  • 240 mm fiber raceway horizontal tee/reducer, yellow
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
