High-density OM3 MPO cassette, 12xLC, polarity B, low loss, black

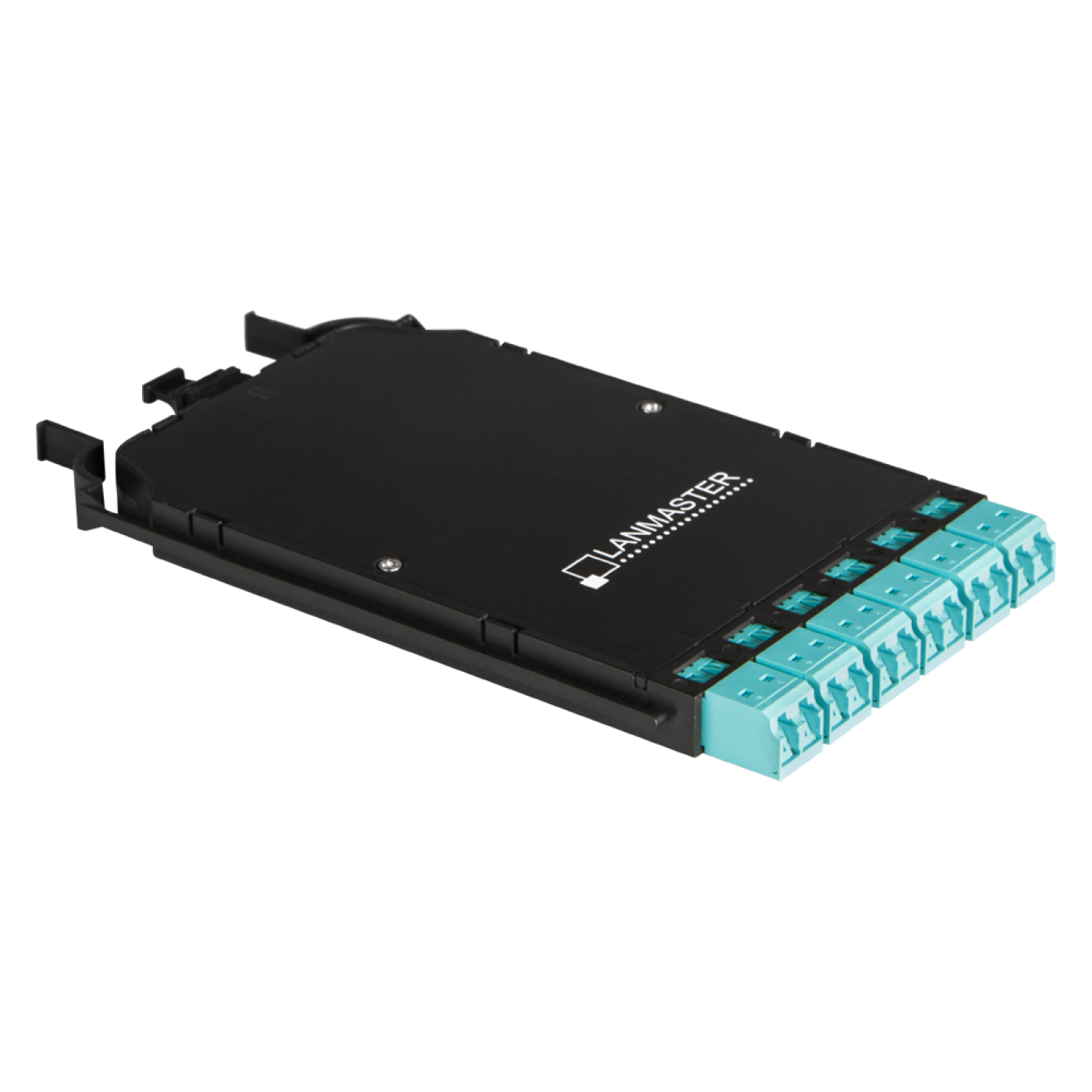

There is a 12-fiber breakout assembly inside the cassette. The cassette has 12-fiber MPO connector on the back and optical LC connectors on the front.
Compact cassettes are 12.2 mm thick. Due to such a compact size of the cassettes and the use of special enclosures (LAN-FOBM-12MCC-1U and LAN-FOBM-48MCC-4U) a high port density is achieved:
- 12 MPO cassettes (144 LC connectors) per 1U
- 48 MPO cassettes (576 LC connectors) per 4U

Highly efficient modular solution supports future-oriented 40 and 100 Gigabit Ethernet transmission speeds. Convenient design and a complete set of modular components ensure that the system is easy to maintain and upgrade. To connect new elements you do not need a special tool or the involvement of skilled technicians. These factors are especially important for SCS in Data Centers.
Excellent performances are achieved using new polishing processes and tight requirements for the geometry of the fiber ends in the connector. Each element of the system undergoes a series of diagnostic tests. The quality of polishing is checked using a 3D-interferometer against industry standards.
Polarity: B
Fiber type: OM3
Insertion Loss:
MPO connector ≤ 0,35dB
LC connectors ≤ 0,30dB
Frequently Asked Questions
What is the LAN-MCCB-1M-12LC/OM3 compact cassette used for?
The LAN-MCCB-1M-12LC/OM3 compact cassette is used to transition from an MPO (Multi-fiber Push-On, multi-fiber connector) trunk assembly to 12 LC (Lucent Connector) connectors in high-density panels. Inside the housing there is a 12-fiber breakout assembly (multimode OM3 fiber): MPO connectors at the rear and LC connectors at the front. The solution supports the advanced 40 and 100 Gigabit Ethernet data transmission formats.
How many LAN-MCCB-1M-12LC/OM3 cassettes fit in a panel and how many LC (Lucent Connector) ports does this give?
Compact cassettes are installed in LAN-FOBM-12MCC-1U panels (12 cassettes, 144 LC (Lucent Connector) ports per 1U) and LAN-FOBM-48MCC-4U panels (48 cassettes, 576 LC ports per 4U). Close free slots with LAN-MCC-XX blanking plates.
What polarity does the LAN-MCCB-1M-12LC/OM3 cassette have?
The LAN-MCCB-1M-12LC/OM3 cassette uses polarity scheme type B (Key-up/Key-up). Connect type B MPO (Multi-fiber Push-On, multi-fiber connector)–MPO trunk assemblies to it and use type B MPO adapters.
What losses does the LAN-MCCB-1M-12LC/OM3 cassette add?
For all fiber types the insertion loss (IL) is no more than 0.35 dB at the MPO (Multi-fiber Push-On, multi-fiber connector) connector and no more than 0.30 dB at the LC (Lucent Connector) connectors. Take these values into account when calculating the loss budget of the line.
Which patch cords should be connected to the LAN-MCCB-1M-12LC/OM3 cassette?
Connect LC (Lucent Connector) patch cords with OM3 fiber to the front LC connectors.
How should MPO (Multi-fiber Push-On, multi-fiber connector) polarity be selected for компактной кассеты LAN-MCCB-1M-12LC/OM3?
Polarity errors with MPO (Multi-fiber Push-On, multi-fiber connector) are among the most frequent causes of a missing link in multi-fiber connector lines. Before installation draw a diagram of the line and check that the transmitter at one end is connected to the receiver at the other. For cassettes, adapters and trunk assemblies of polarity type B (Key-up/Key-up) use type B components throughout the line.
How should the connectors of LAN-MCCB-1M-12LC/OM3 be cleaned before connecting?
Before each connection inspect the end faces of MPO (Multi-fiber Push-On, multi-fiber connector) and LC (Lucent Connector) connectors and clean them if they are dirty. Use the LAN-FT-CL/MPO tool for MPO connectors and LAN-FT-CL/OK1 for LC connectors. Do not touch the end faces with your fingers and close unused connectors with caps.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-MCCB-1M-12LC/OM3 | pcs | 230 × 140 × 30 | 0.055 | 0.000966 |
