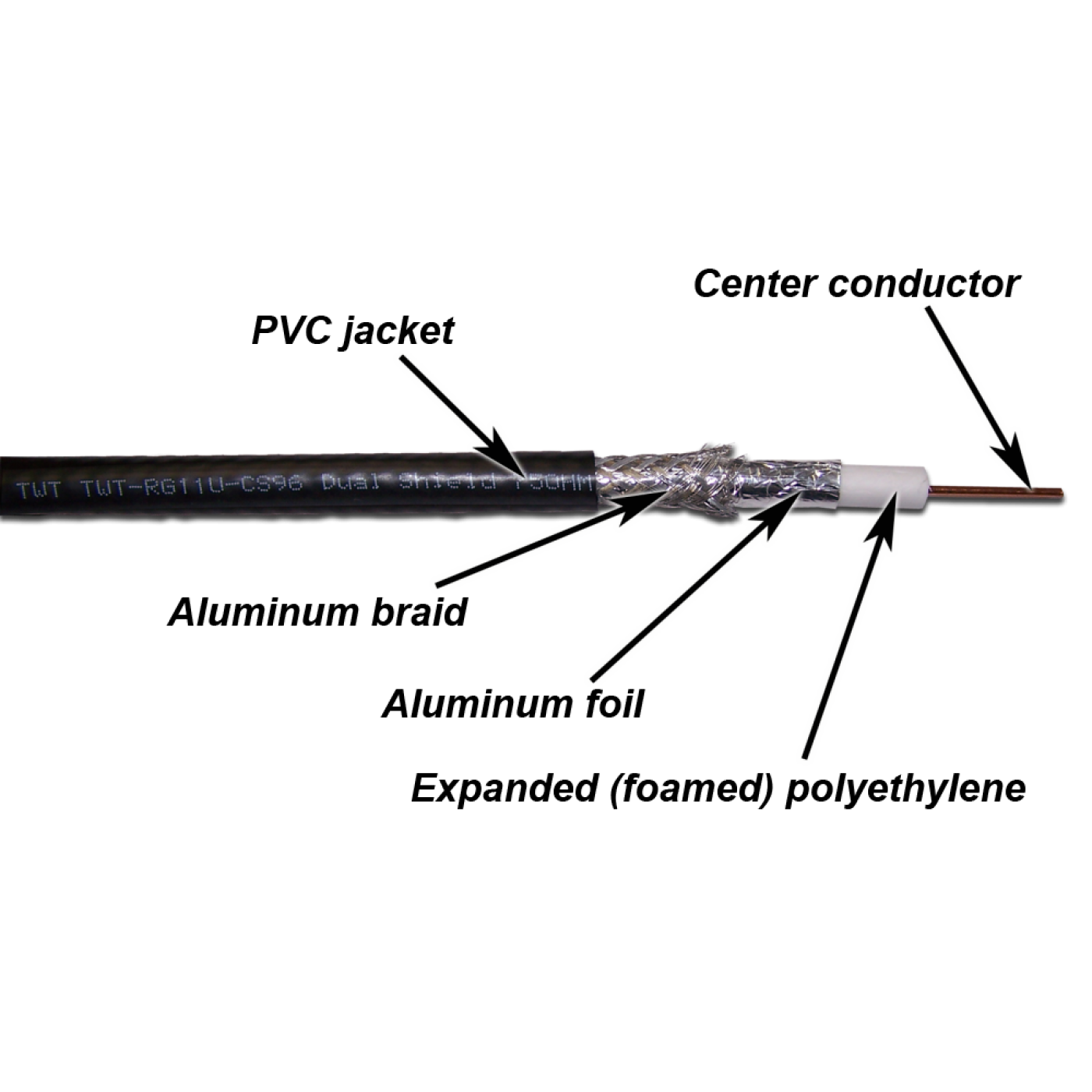

It is used for satellite and cable TV networks, analog video surveillance. Used for indoor installation. Center conductor: copper clad steel wire (CCS), solid Center conductor insulation: low density expanded (foamed) polyethylene Shield: aluminum laminated foil and aluminum braid Outer jack: PVC (polyvinyl chloride) Color: Black Packaging: 305 m on a reel
Physical characteristics of the cable:
Characteristics
Value
Center conductor
Diameter
1.63+/-0.01 (14AWG)
Material
Copper Clad Steel (CCS)
Conductor insulation
Diameter
7.20+/-0.13 mm
Centering
>=90 %
Shield
№1
Material
Aluminum foil
Shield density
100%
Thickness
0,16 mm
№2
Number of wires
6/16
Shield density
60%
Material
Aluminum
Cable diameter by shield
7,91 mm
Jacket
Diameter
10.20±0.10 мм
Material
PVC
Dielectric strength of the outer jacket
3000Vac
Color
Black
Temperature
Operating
from -40°С to +70°С
Weight
Of 1 km of cable
101 kg
Electrical (transmission) characteristics of the cable:
Characteristics
Value
Wave impedance
75±3 Ohm
Electrical capacitance
53±2 pF/m
Nominal velocity propagation
83 %
Return loss at 5 - 1000 MHz
≥20 dB
Attenuation, dB/100m (20°С)
55 MHz
0,96
211 MHz
1,9
450 MHz
2,75
600 MHz
3,18
870 MHz
4,06
1000 MHz
4,35
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
Model range (1)
Code
Name
TWT-RG11-CS96/3-BK
TWT RG11U 75 Ohm Coaxial cable, CCS, 96*0.16 mm AL braid, PVC, black, 305 m
