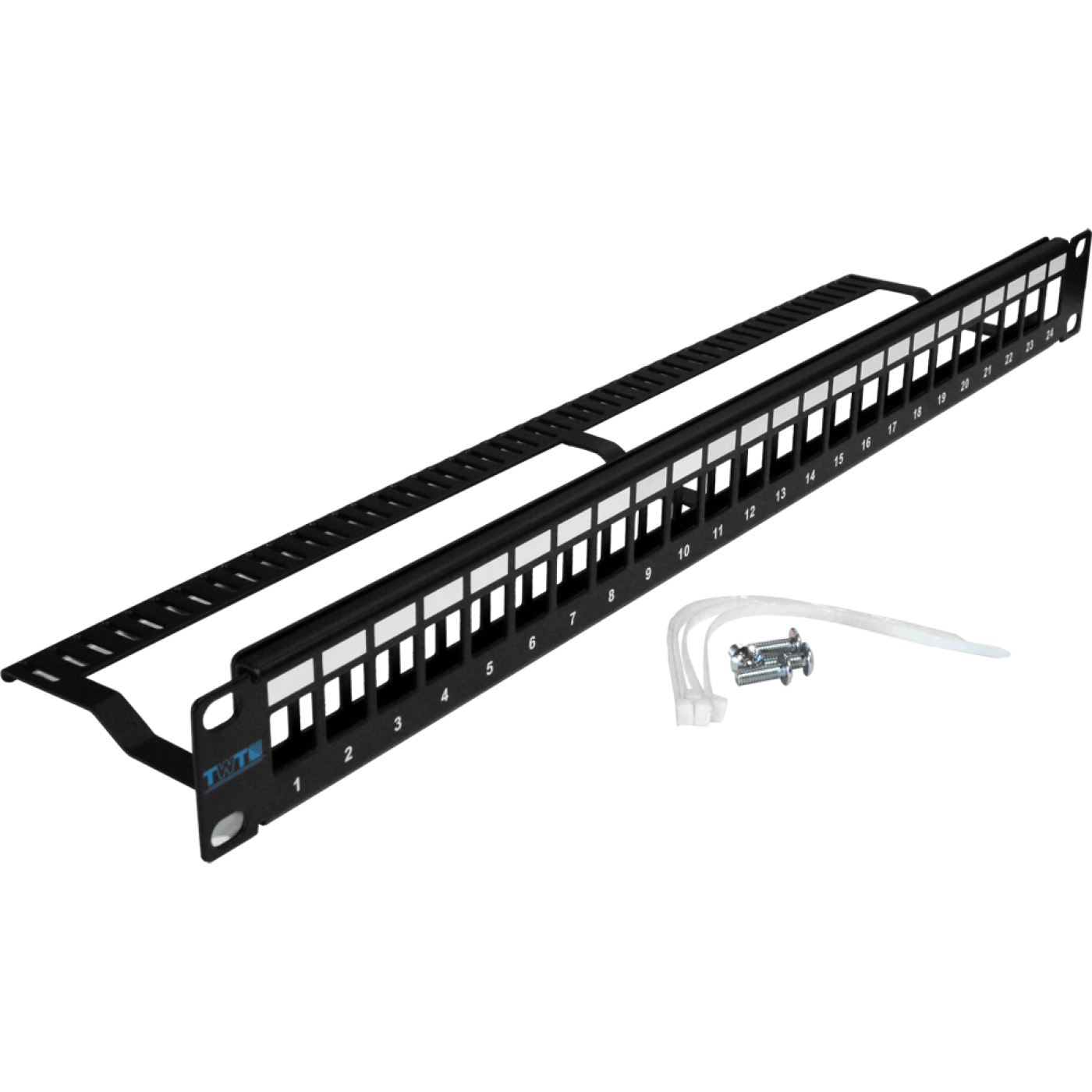

TWT modular patch panel, 24 port, UTP, 1U

Product Code: TWT-PP24OK-UTP

TWT modular patch panel, 24 port, UTP, 1U

19" 24 port modular patch panel is intended for installation of RJ-45, optical, audio, video, and other modules of Keystone form.

The width of the Keystone module back side installed in the patch panel must not exceed 17.2mm (see compatible items).

The ports are numbered on the front side of the panel, there are also areas for additional port labels.

For ease of installation and additional fixation of the cable, the panel has a retention bracket. The use of the bracket provides the required bending radius and reliable fastening of cables during termination and subsequent operation. The cable is fastened with plastic tie using special holes in the bracket.

Package included:

  • Patch panel with retention bracket - 1 pc.
  • Mounting kit for cabinet rails - 4 pcs.
  • Cable tie - 4 pcs.
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-PP24OK-UTP TWT modular patch panel, 24 port, UTP, 1U Add to list
