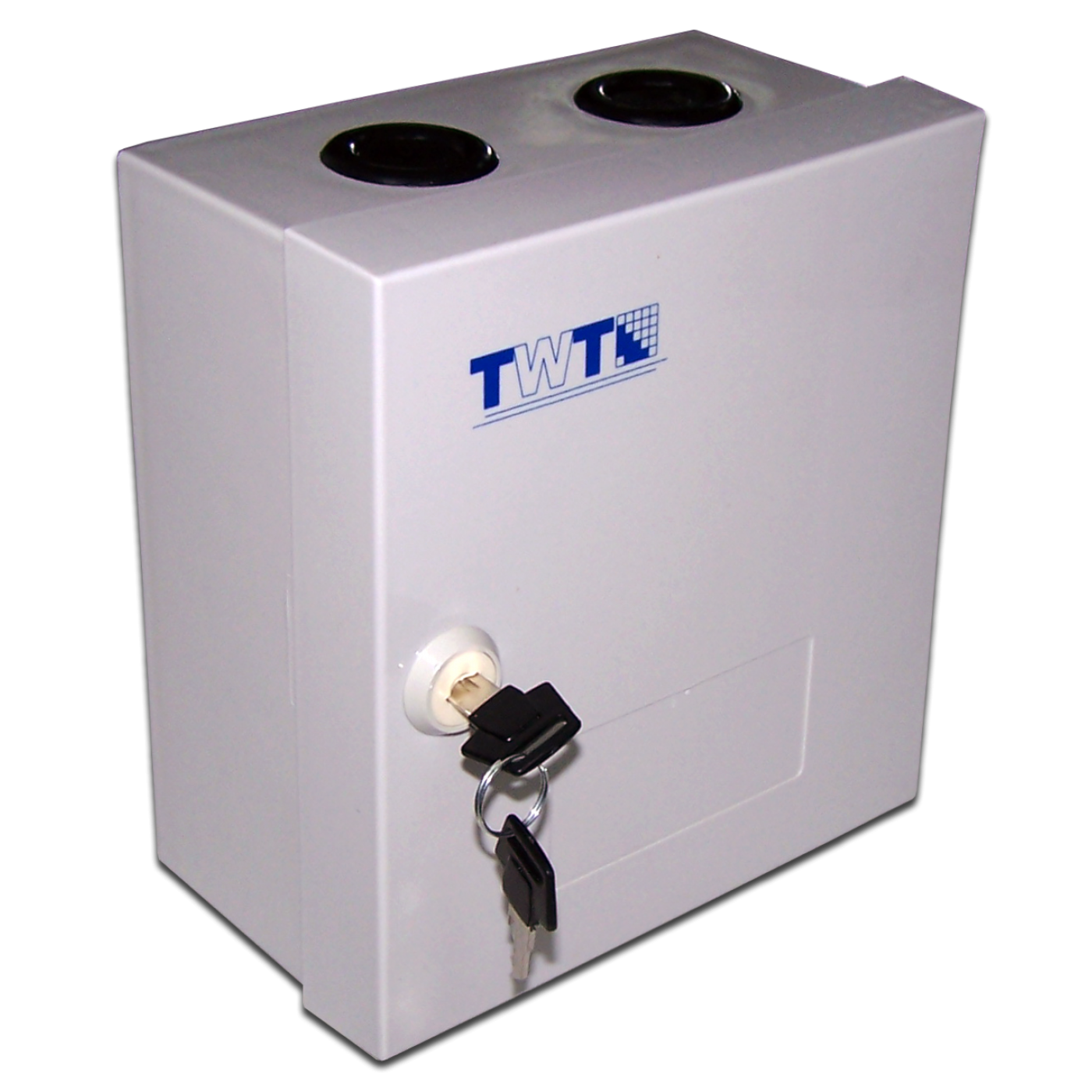

Wall-mounted distribution boxes are designed forinstallation of 10-pair LSA-PLUS connection modules.
Boxes are completed with backmount frames forinstallation of connection modules with a capacity from 30 to 100 pairs.
The door is equipped with a lock with two keysincluded.
The increased depth of the door allows theinstallation of protection magazines.
The box is non-separable, cable entry is possible fromabove and below.
Made of PVC.
Color is light grey.
Where D – cabinet depth
H – cabinet height
W – cabinet width
(see product code table)
Product code
Description
Depth,
mm
Width,
mm
Height,
mm
TWT-DB10-3P/L
Wall mounted plastic box for 3 LSA-PLUS connection modules, non-separable
93
165
180
TWT-DB10-5P/L
Wall mounted plastic box for 5 LSA-PLUS connection modules, non-separable
105
190
203
TWT-DB10-10P/L
Wall mounted plastic box for 10 LSA-PLUS connection modules, non-separable
105
205
275
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
Model range (3)
Code
Name
TWT-DB10-3P/L
Wall-mounted simplified distribution box for 3 connection modules, 30 pairs, with lock
