Backlight for 19" wall enclosures, 8W, white light, 1 m power cord

Backlight for 19" wall enclosures, 8W, white light, 1 m power cord

Product Code: TWT-CBW-LAMP

Backlight for 19" wall enclosures, 8W, white light, 1 m power cord
Model range

Luminaire with fluorescent lamp is designed for installation on 19” rails of a wall enclosure or floor telecommunication cabinet.

The luminaire is mounted on a 19" panel of 0.5U height.

Several luminaires can be combined into a single circuit using the connecting adapters included in the kit.

Supplied with a cool white lamp with a power of 8W (type T5).

There is a mini switch on the lamp body.

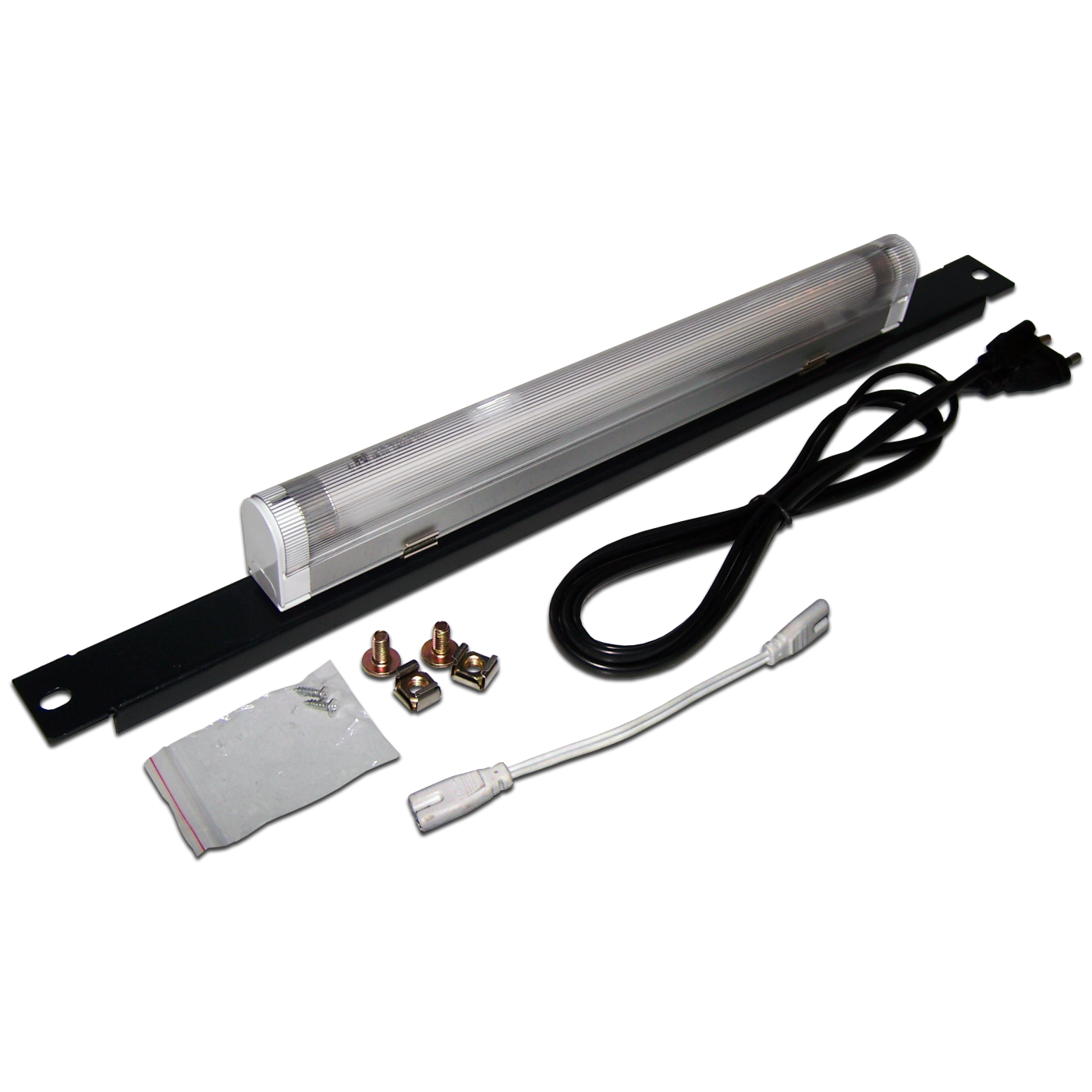

Base kit includes power cord with Euro plug (2 terminals), mounting brackets and mounting screws, and fasteners for mounting rail.

Body materials are PVC and duralumin.

The base panel made of cold-rolled steel.

Panel painting is powder coating.

Lamp is fluorescent of 8 W made of glass.

The luminaire is manufactured according to GB7000.10-1999 and GB7000.1-2007.

Specification
 Value
Luminaire dimensions (Width х Height х Depth, mm) 313 х 24 х 39
Panel dimensions (Width х Height х Depth, mm) 484 х 29 х 12
Supply voltage (Volt, AC) 220 ±10%
Power consumption (Watt) 8 ±5%
AC Frequency (Herz) 50 / 60
Relative humidity (%) 20% - 85%
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
