Sliding shelf

Product Code: TWT-CBB-SM-xx/20

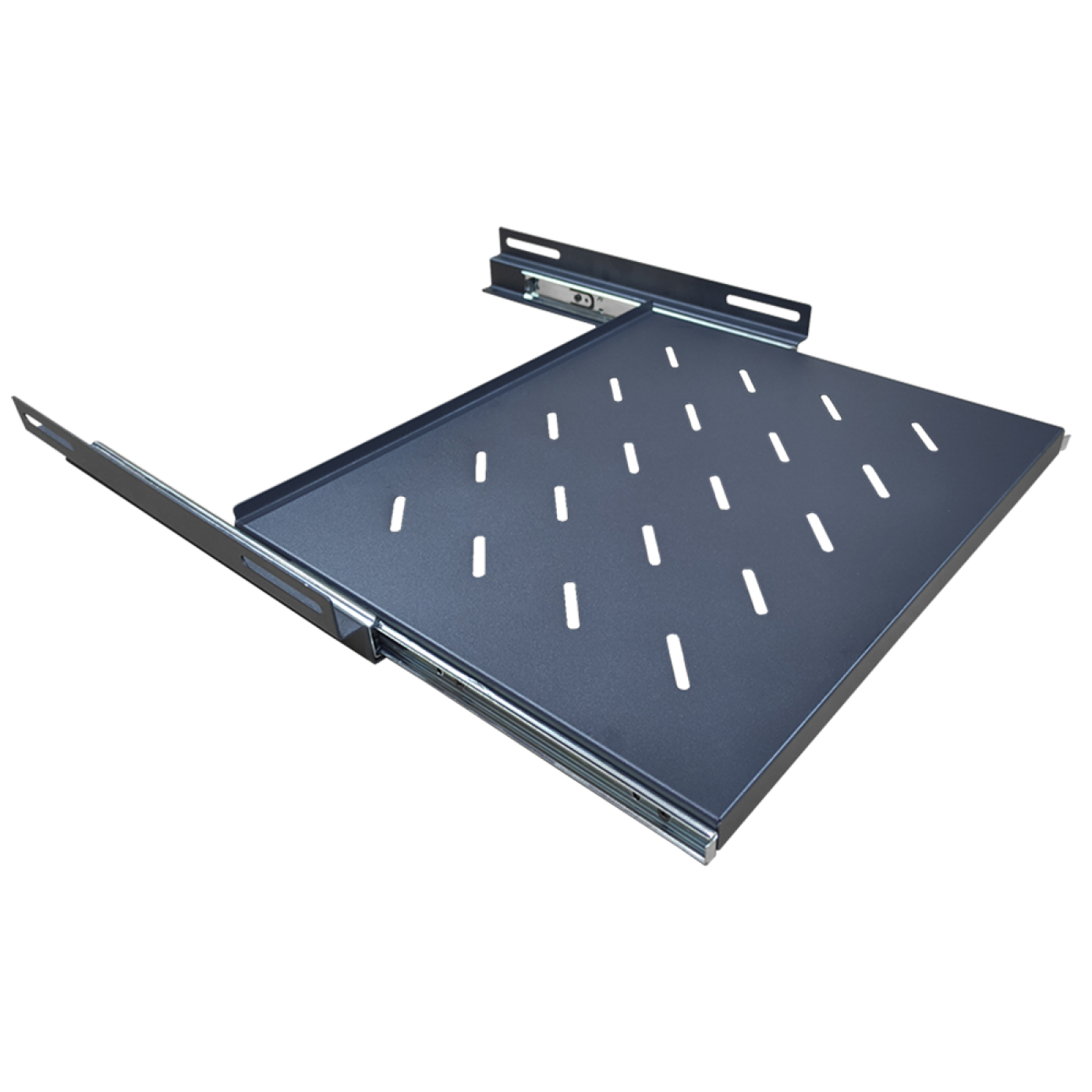

Sliding shelf

The sliding shelf is designed for quick and easy access to the equipment placed on it.

Shelf's perforation provides additional ventilation and heat dissipation.

The shelf has a 4-post mounting (on four mounting rails) with lateral fastening.

Telescopic guides (slides) allow you to move out the shelf up to 228 mm.

Maximum load is 20 kg.

The package includes shelf, slides, mounting screws.

Made of steel.

Powder coating painting.

Color is black (RAL 9004).

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (4)

Code Name
TWT-CBB-SM-6/20 4-post sliding shelf for 600 mm deep floor cabinets, 20 kg acceptable load Add to list
TWT-CBB-SM-8/20 4-post sliding shelf for 800 mm deep floor cabinets, 20 kg acceptable load Add to list
TWT-CBB-SM-10/20 4-post sliding shelf for 1000 mm deep floor cabinets, 20 kg acceptable load Add to list
TWT-CBB-SM-12/20 4-post sliding shelf for 1200 mm deep floor cabinets, 20 kg acceptable load Add to list
