TWT UTP cable , 4 pairs, category 5e, PVC, grey, 305 meters

TWT UTP cable , 4 pairs, category 5e, PVC, grey, 305 meters

Product Code: TWT-5EUTP

TWT UTP cable , 4 pairs, category 5e, PVC, grey, 305 meters
Model range

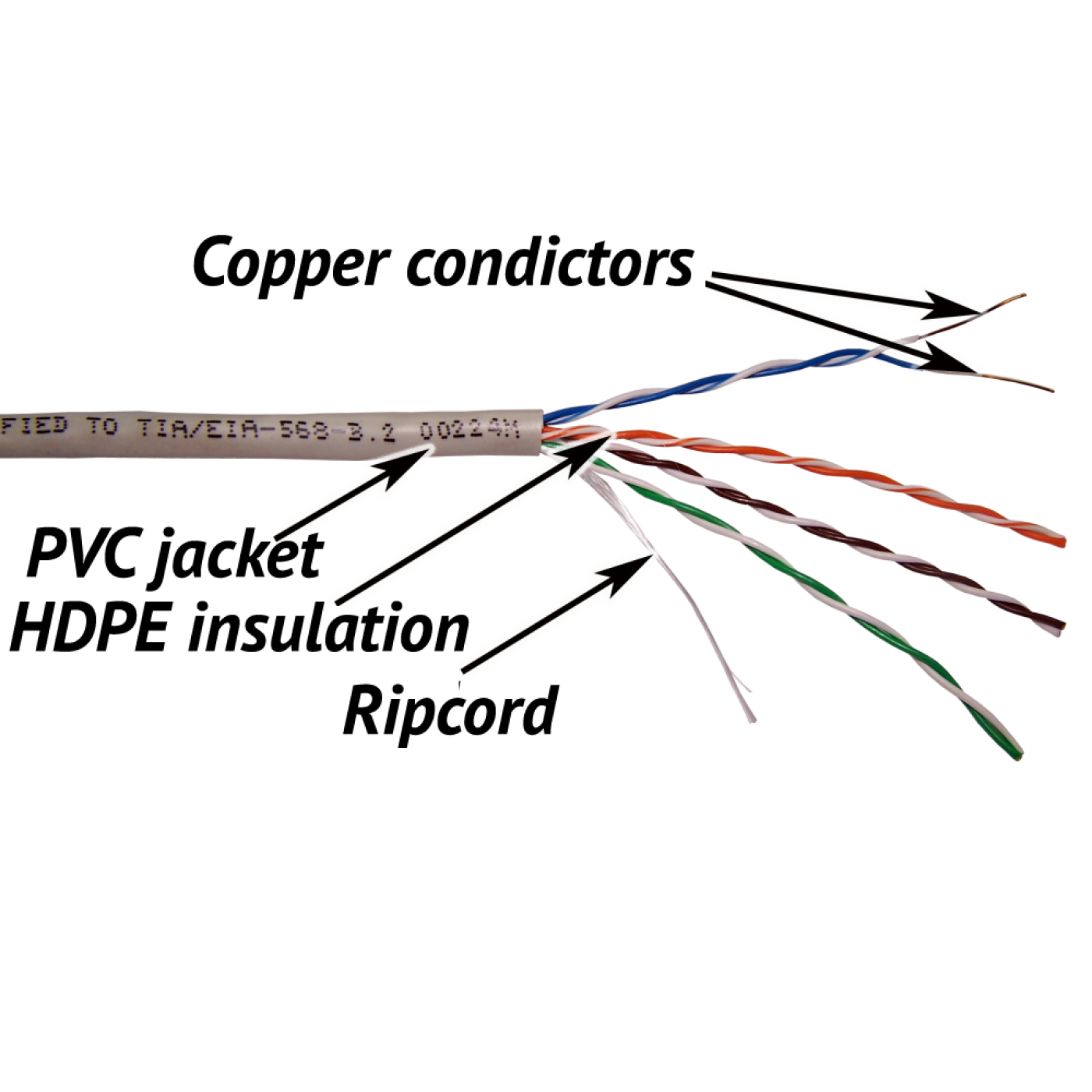

Four pairs UTP cable has a following design:
Conductor is a solid 24 AWG wire with HDPE (high density polyethylene) insulation. Two conductors comprise a single twisted pair.

The cable consists of four pairs, each pair twisted with different but specially selected step. There is a ripcord under cable jacket for termination process convenience. The jacket is cut when ripcord is pulled. The cable jacket has per meter length marks.


Specification Value
Jacket Color Grey
Jacket Material PVC (polyvinyl chloride)
Insulation Material HDPE (high density polyethylene)
Conductor Gauge, single 24 AWG
Conductor Type Solid
Cable Diameter 4,8mm ± 0,3
Operating Temperature -20 ºC to 75 ºC
Cable Length per Box 100 m, 305 m, 500 m
Nominal velocity propagation (NVP) 67%
Regulatory Certifications UL, ETL VERIFIED
Regulatory Compliance

TTIA/EIA 568-D.2 cat. 5E,

ISO/IEC 11801-1:2017;

EN 50173

The cable has better transmission characteristics then defined in standards for 1-100 MHz frequency band.

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (3)

Code Name
TWT-5EUTP TWT UTP cable , 4 pairs, category 5e, PVC, grey, 305 meters Add to list
TWT-5EUTP/100-GY TWT UTP cable , 4 pairs, category 5e, PVC, grey, 100 meters Add to list
TWT-5EUTP/500-GY TWT UTP cable , 4 pairs, category 5e, PVC, grey, 500 meters Add to list
