TWT FTP cable, two pairs, category 5е, PVC, 305 meters, grey

TWT FTP cable, two pairs, category 5е, PVC, 305 meters, grey

Product Code: TWT-5EFTP2-GY

TWT FTP cable, two pairs, category 5е, PVC, 305 meters, grey
Model range

Two pairs cables are budget solution for voice, fire alarm, security and Ethernet network (except Gigabit Ethernet which requires 4-pairs cable) cabling, for connecting xDSL modems.

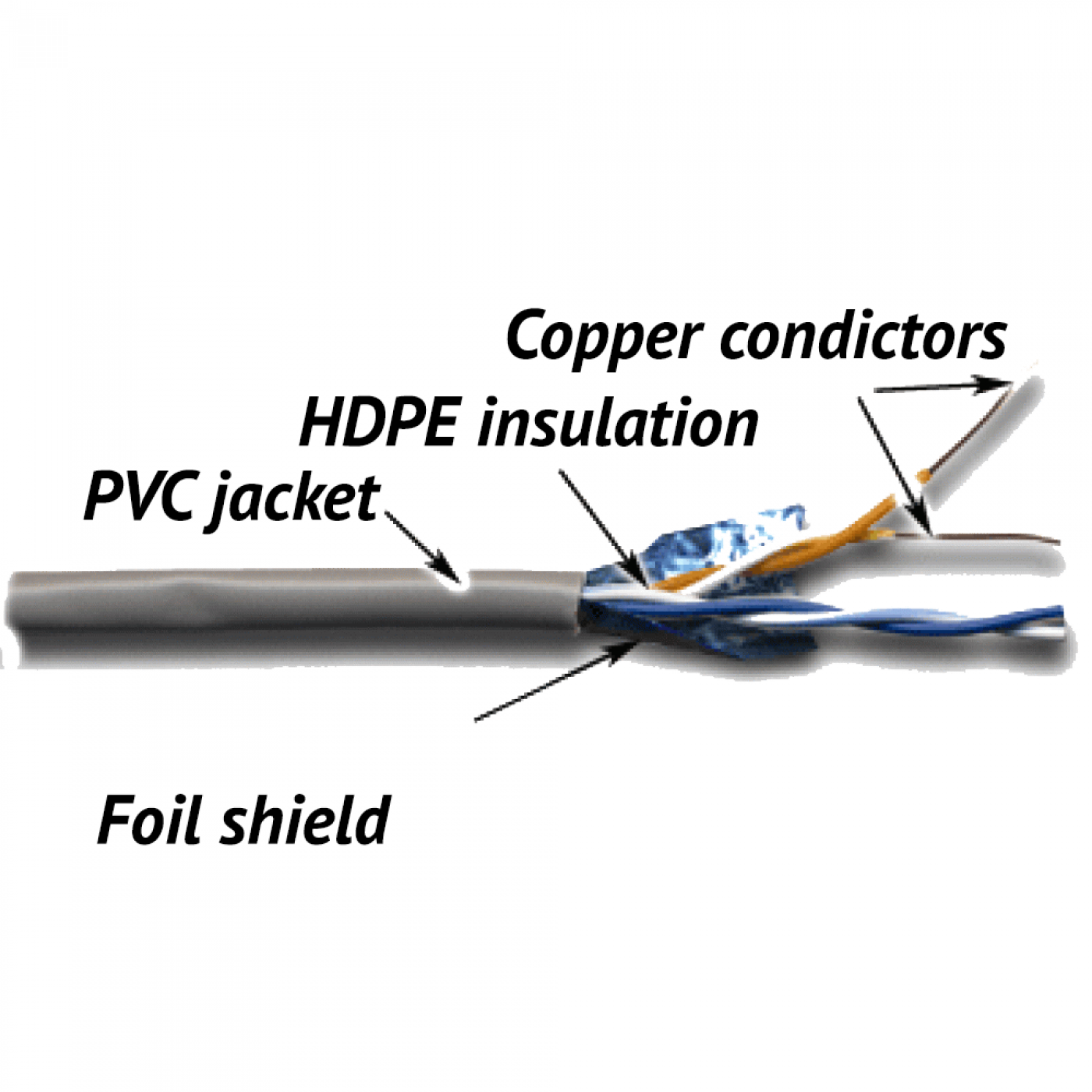

The cable comprises two pairs of solid copper 24 AWG conductors.

Each conductor is insulated with HDPE (high density polyethylene).

Two conductors are twisted with specially selected step in a single twisted pair.

Cable has a common aluminum polyester foil shield under outer jacket.

Two twisted pairs are covered with single PVC jacket.

Specification Value
Jacket Color Grey
Jacket Material PVC (polyvinyl chloride)
Insulation Material HDPE (high density polyethylene)
Conductor Gauge, single 24 AWG
Conductor Type Solid
Shield Material Aluminum polyester foil over two pairs
Cable Diameter 4,5 mm
Operating Temperature -20 ºC to +75 ºC
Cable Length per Box 305 m
Nominal Velocity Propagation (NVP) 67%
Regulatory Certifications ETL VERIFIED
Regulatory Compliance TIA/EIA 568-D.2 cat. 5e
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
