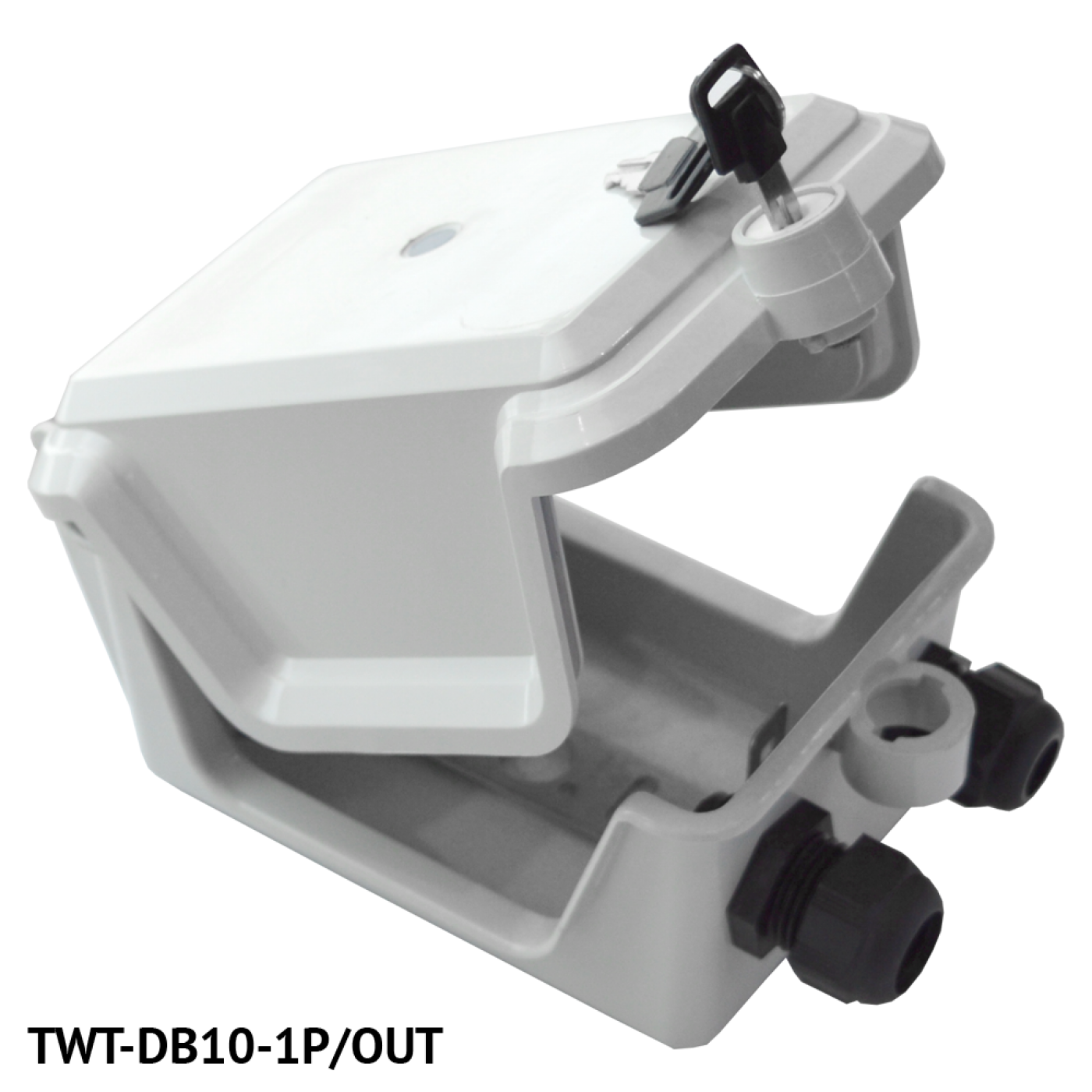

Outdoor distribution box for one connection module, 10 pairs

Product Code: TWT-DB10-1P/OUT

Outdoor distribution box for one connection module, 10 pairs

The outdoor distribution boxes are designed for outdoor installation and can be completed with one 10-pair TWT-LSA10-xxx connection module (module is supplied separately). Backmount frames for modules with a capacity of 10 pairs are installed in the boxes. The tightness of the lid is ensured by a rubber seal. The lid is equipped with a key lock. A wire seal can be used.

Protection rating is IP55.

Made of ABS.

Color is light grey.

Has two pressure seal glands: from 6 to 12 mm and from 8 to 16 mm

Operating temperature range: -40 to +70 °С

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-DB10-1P/OUT Outdoor distribution box for one connection module, 10 pairs Add to list
