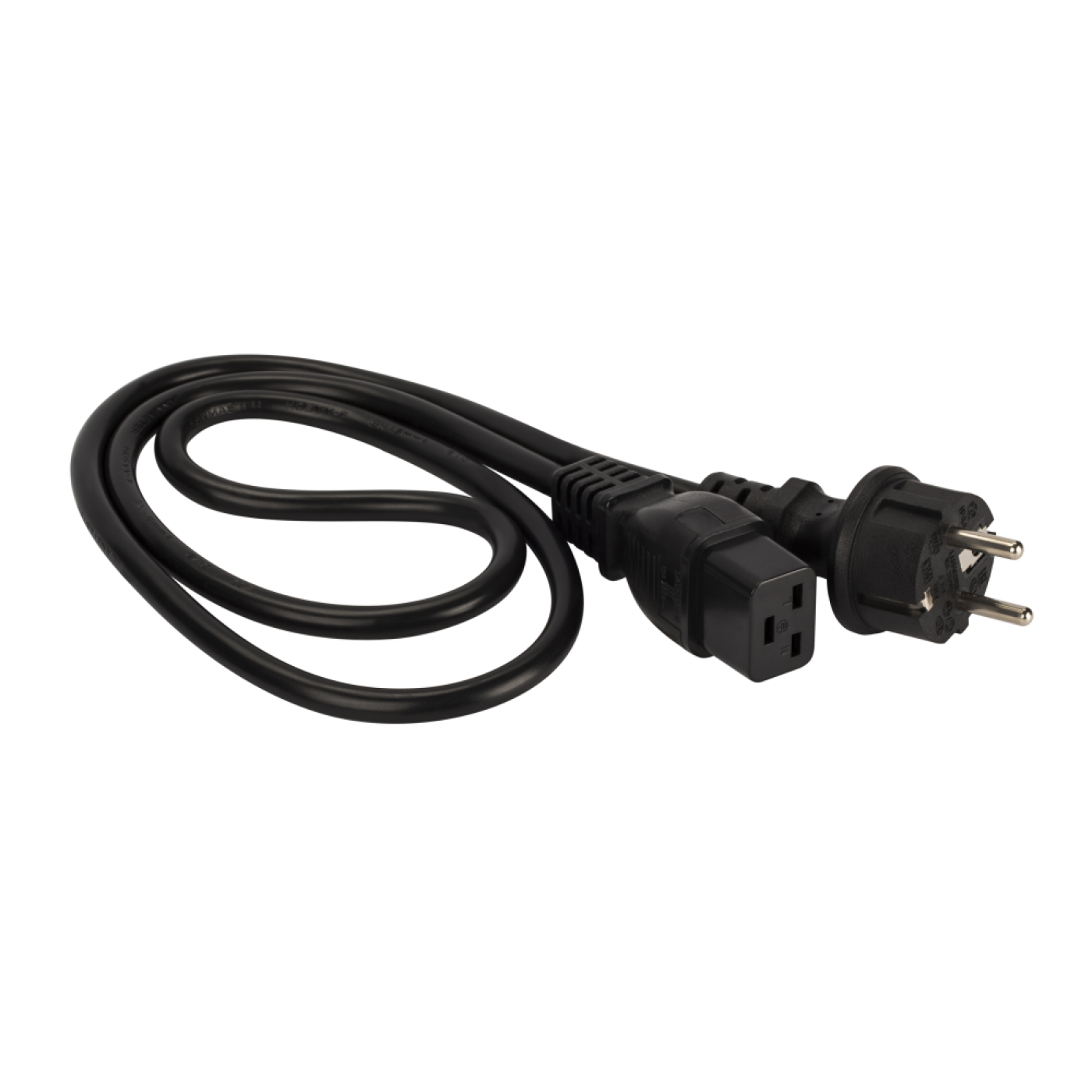

Power cord, C19-Schuko, straight, 3х1.5, 220V, 16A

Product Code: LAN-PP19/SH-x.x-yy

Power cord, C19-Schuko, straight, 3х1.5, 220V, 16A

The power cord is intended to connect electrical equipment with IEC 60320 C20 inlet to AC mains up to 250V.

The cord is made of stranded PVC insulated 3 x 1.5 wire.

Plug А (plug Schuko) is DIN49441 connector molded from flame retardant PVC.

The connector on the opposite side (side B) is IEC 60320 C19 molded from flame retardant PVC.

Cable type 3х1.5 PVC
Jacket material PVC (polyvinyl chloride)
Jacket color Black
Cord length 0.5 m, 1 m, 2 m, 3 m, 5 m
Wire cross-section 1,5 mm2
Wire type Stranded
Maximum current 16 А
Maximum voltage ~250 V
Connector А DIN49441
Connector В IEC 60320 С19
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (5)

Code Name
LAN-PP19/SH-3.0-BK Power cord, C19-Schuko, straight, 3х1.5, 220V, 16A, 3 meters Add to list
LAN-PP19/SH-0.5-BK Power cord, C19-Schuko, straight, 3х1.5, 220V, 16A, 0.5 meters Add to list
LAN-PP19/SH-1.0-BK Power cord, C19-Schuko, straight, 3х1.5, 220V, 16A, 1 meter Add to list
LAN-PP19/SH-2.0-BK Power cord, C19-Schuko, straight, 3х1.5, 220V, 16A, 2 meters Add to list
LAN-PP19/SH-5.0-BK Power cord, C19-Schuko, straight, 3х1.5, 220V, 16A, 5 meters Add to list
