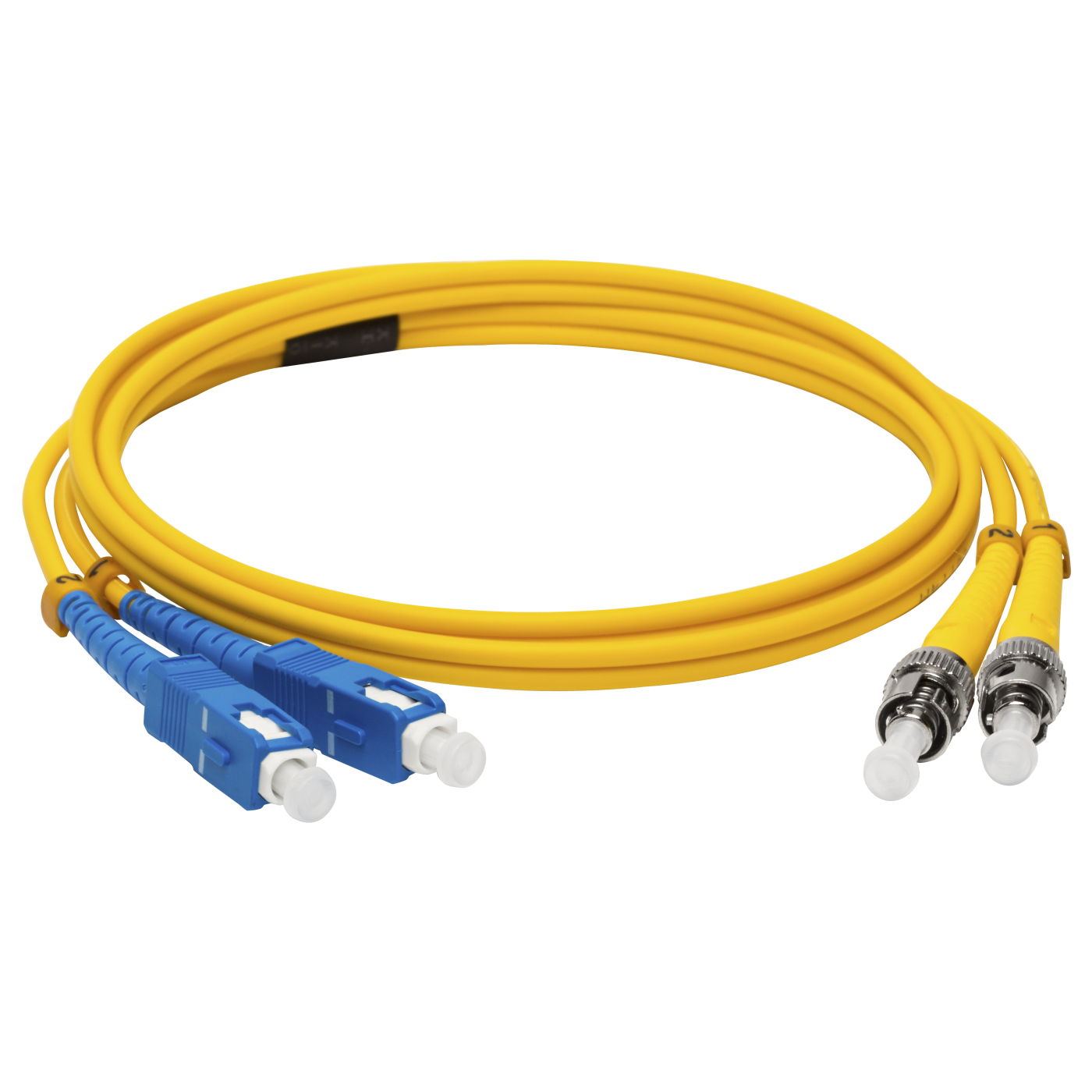

LANMASTER optical patch cord, LSZH, ST/UPC-SC/UPC, SM

Product Code: LAN-ST-SC-SM

LANMASTER optical patch cord, LSZH, ST/UPC-SC/UPC, SM

SC-ST 9/125 patch cord - a piece of optical cable with one or two fibers (with a 3 mm buffer coating), each of which is terminated on one side with an SC optical connector and on the other side with an ST connector.

The patch cord is used for connection between various network devices or between a network device and a fiber optic cross or inside a fiber optic cross.

LANMASTER optical patch cords are manufactured from quality components in accordance with international standards. All products are factory tested. Test results included.

Installed connectors are numbered.

Each patch cord comes individually packaged.

Specifications

Insertion loss≤ 0.2 дБ
Return loss≥ 50 дБ
Number of fibers (cord type)1, 2 fibers (simplex, duplex)
Fiber optic type9/125 (ОS2)
Buffer coatingLow smoke halogen free compound (LSZH)
JacketLow smoke halogen free - LSZH (Low Smoke Zero Halogen)
Connector typeSC, 2SC (duplex), ST, 2ST (duplex)
Polish style
PC, UPC, APC
Buffer coating thickness3 mm

Patch cords with a length of 1, 2, 3 and 5 meters are constantly in stock. Patch cords of other lengths are also available on request as simplex or duplex structure with various polishing options (PC, UPC, APC).

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (4)

Code Name
LAN-2ST-2SC/SU-1.0 LANMASTER optical patch cord, LSZH, duplex, ST/UPC-SC/UPC, SM OS2, 1.0 m Add to list
LAN-2ST-2SC/SU-2.0 LANMASTER optical patch cord, LSZH, duplex, ST/UPC-SC/UPC, SM OS2, 2.0 m Add to list
LAN-2ST-2SC/SU-3.0 LANMASTER optical patch cord, LSZH, duplex, ST/UPC-SC/UPC, SM OS2, 3.0 m Add to list
LAN-2ST-2SC/SU-5.0 LANMASTER optical patch cord, LSZH, duplex, ST/UPC-SC/UPC, SM OS2, 5.0 m Add to list
