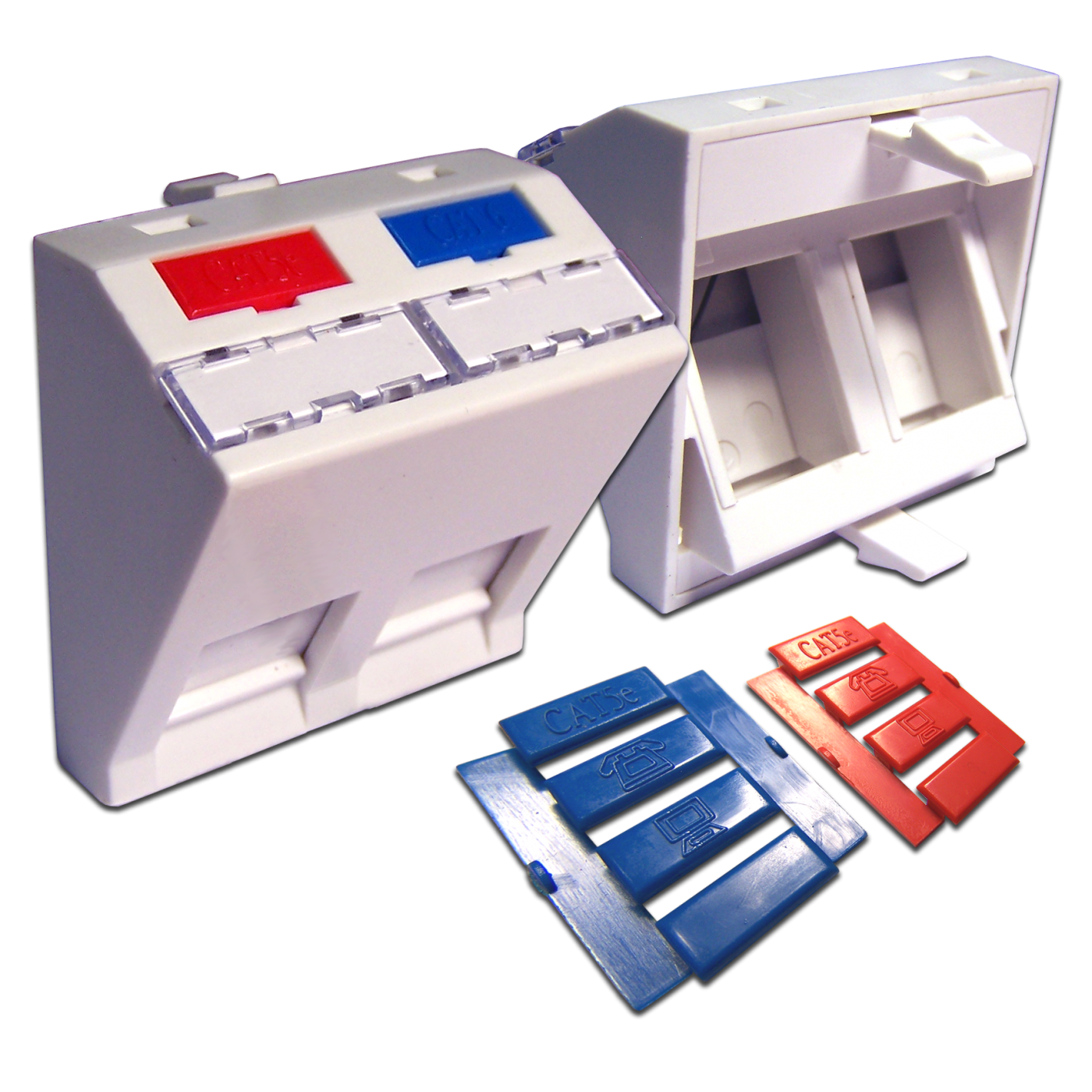

45x45 insert for 2 Keystones, angled, with shutter, labels and icons, white

Product Code: LAN-SIP-24A-WH

45x45 insert for 2 Keystones, angled, with shutter, labels and icons, white

Inserts are used to install Keystone form-factor telecommunication modules in a French socket.

The insert is made in the form of a convex corner, while the label areas and icons are located on the upper edge.

The angular shape of the insert provides additional functionality and convenience when installing in and servicing the socket:

  • Easy reading of labels; additional space for placing keystones;
  • Additional space inside the insert allows mounting information sockets in shallow cable ducts and junction boxes;
  • Connecting patch cords at an angle to the wall surface reduces the stress on the patch cord at the connection point.

There are shutters to protect the module contacts from damage and dust. There is also a place for installing the colored icons that are included in the kit, and fields for a paper label covered with transparent plastic.

Inserts must be installed by one in the 45x45 frame.

Can be used with unshielded and shielded Keystone modules.

The insert design provides a fastening element for fixing the incoming from the back side cable with a tie.

Insert Dimensions
View of installation with the inserts



Package included:

  • Insert;
  • Pre-installed plexiglass cover (2 pcs.);
  • Paper label (2 pcs.);
  • Red and blue color icon pack.
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
LAN-SIP-24A-WH 45x45 insert for 2 Keystones, angled, with shutter, labels and icons, white Add to list
