LANMASTER, Category 6, RJ45 keystone jack, 180-degree, 45-degree, shielded, unshielded, shutterless
The module can be used to complete unshielded telecommunication sockets installed in wall trunks, in a wall box, also for installation in modular patch panels (see the compatibility items).
Category 5e compliant.
The main advantage of this module over similar LANMASTER products is the presence of a built-in shutter, which is automatically recessed when patch cord inserts in the module. The width of this module allows it to be installed in high density patch panels from LANMASTER and other manufacturers. Color coding of the entire panel or its individual elements allows for visual identification of ports. Therefore, multi-colored Keystone modules can be used to increase the efficiency of SCS administration.

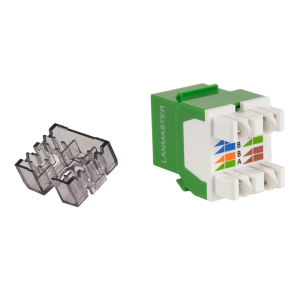

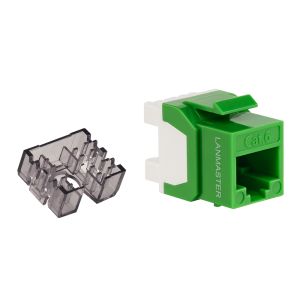

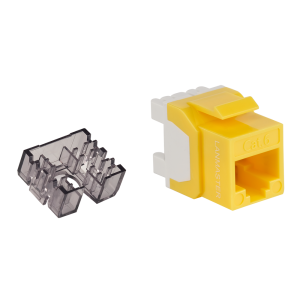

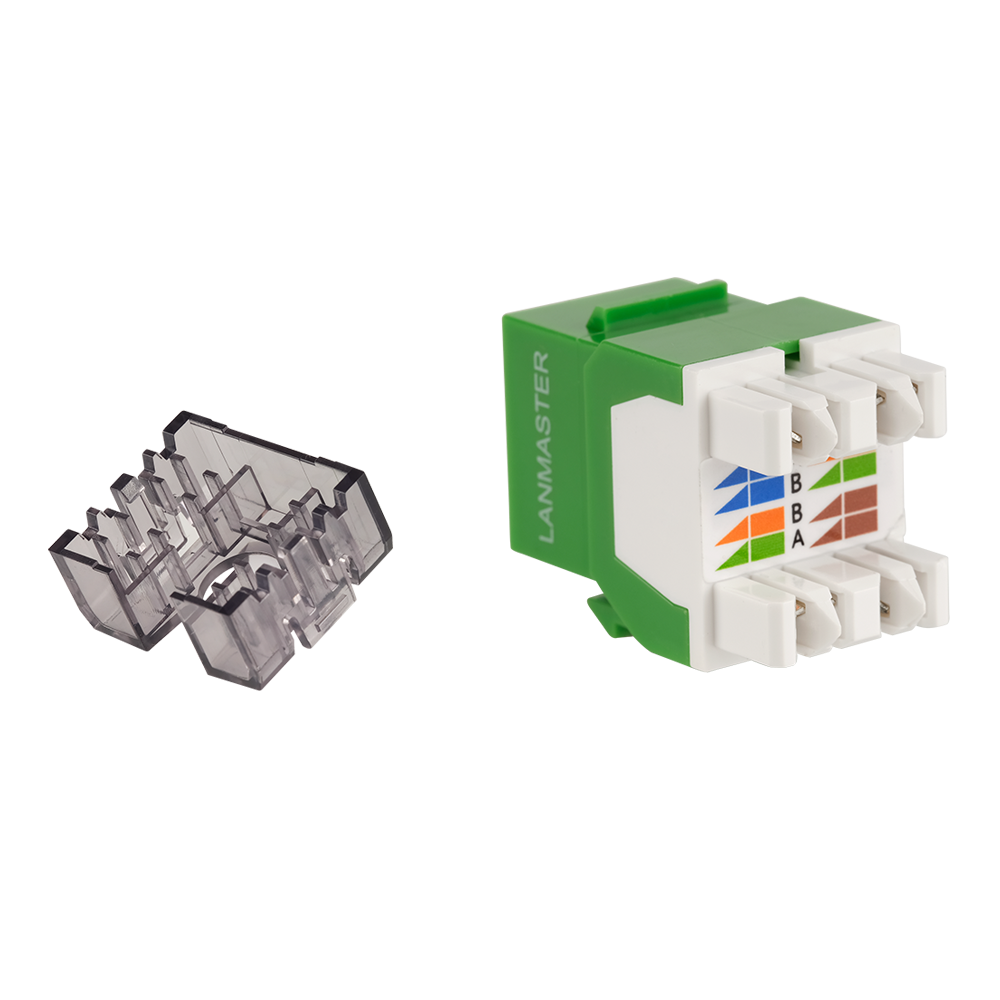

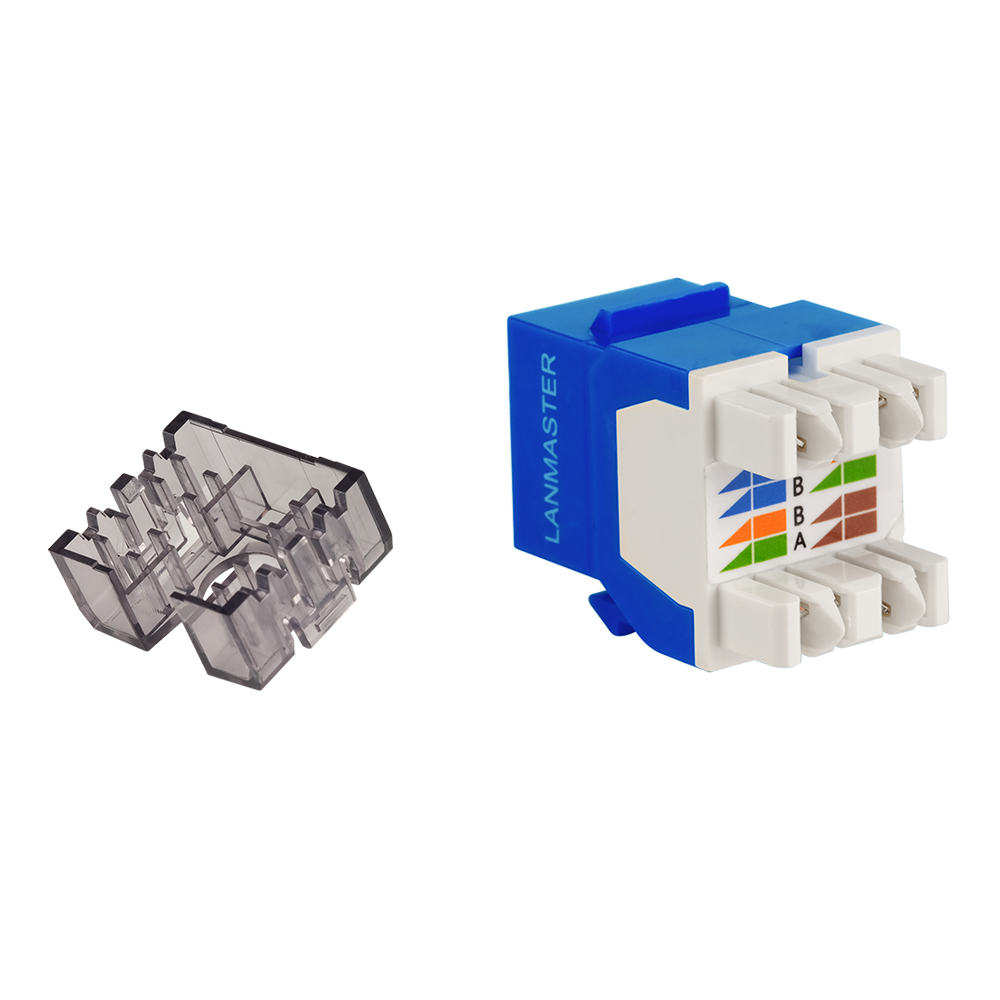

There is an eight-pin RJ-45 socket on the front side of the module, and there is a block for eight contacts of the IDC110 type on the back side, located at an angle of 180˚ to the front surface of the module.

The insulation displacement contact method is used (IDC) to terminate incoming cable.

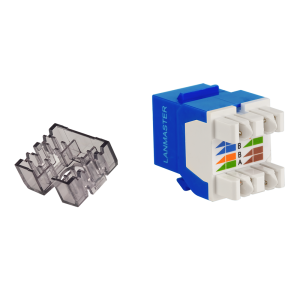

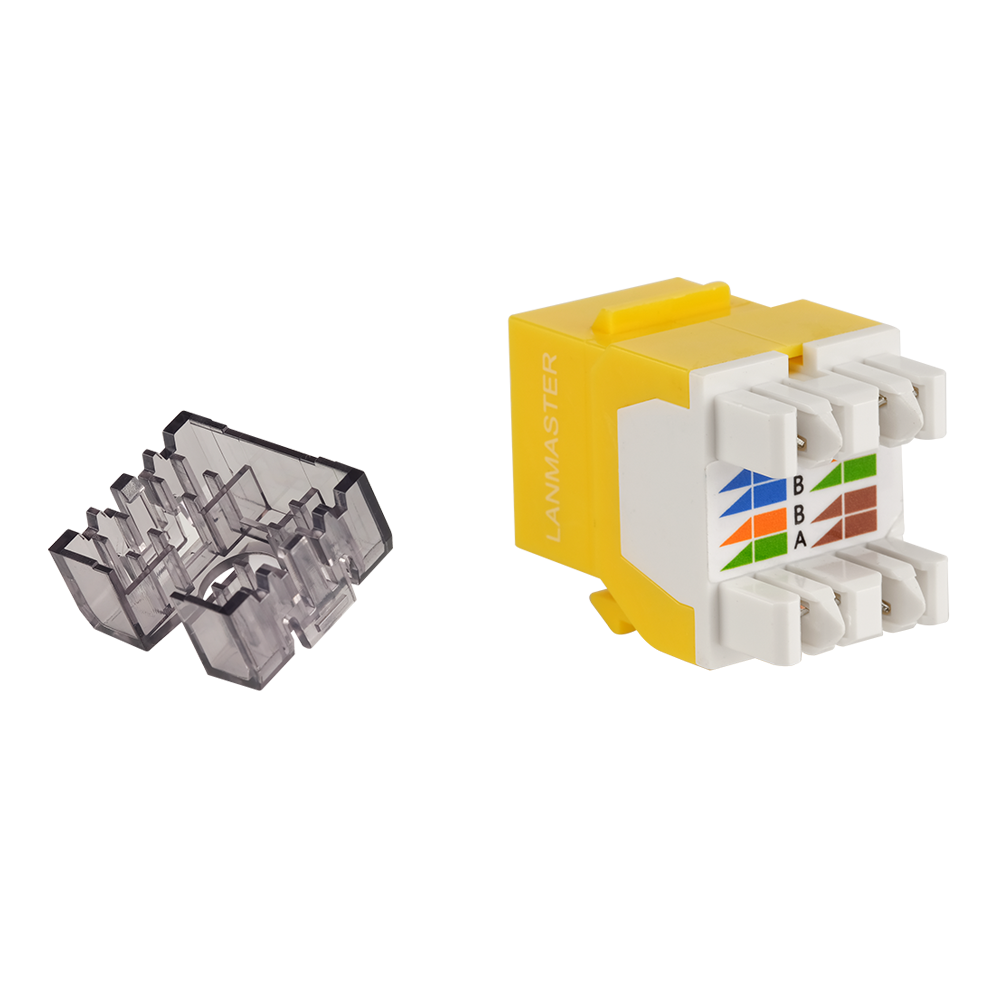

There is a wiring diagram for the cable conductors between the IDC pins in accordance with the T568A and T568B wire map for ease of installation.

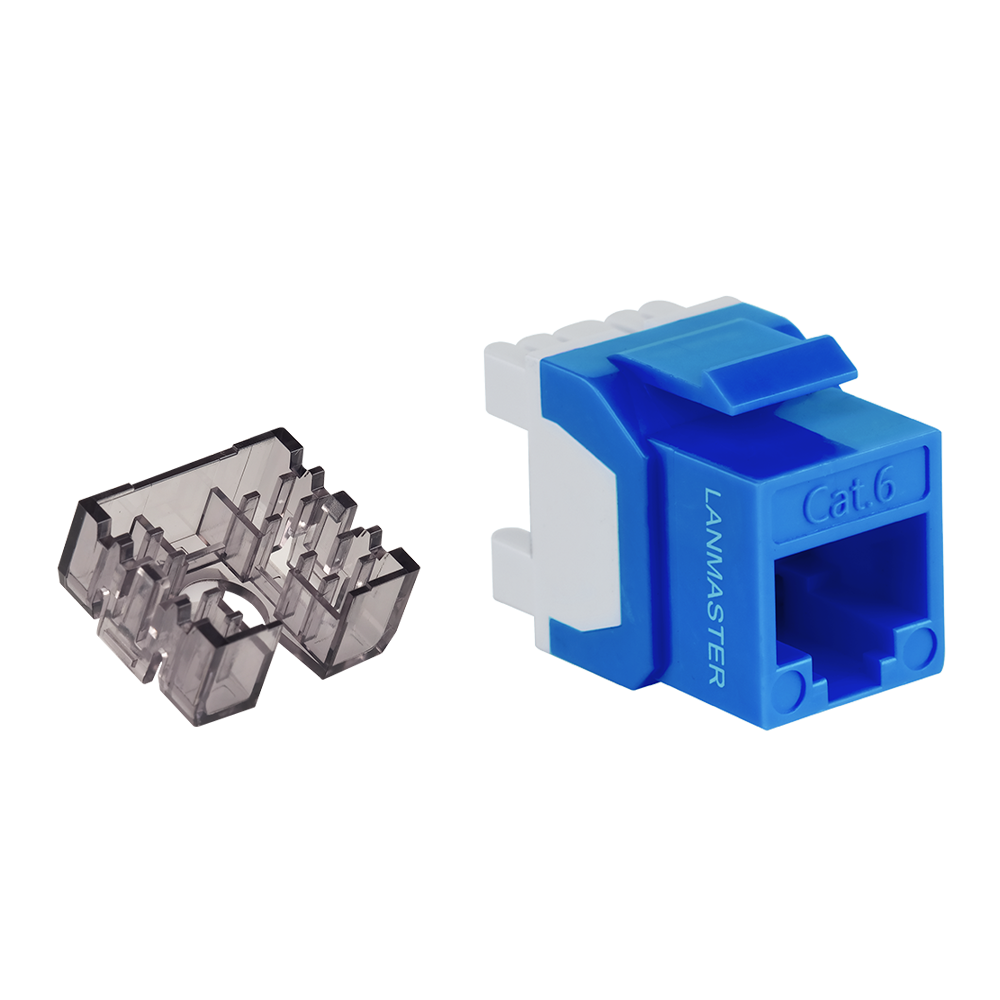

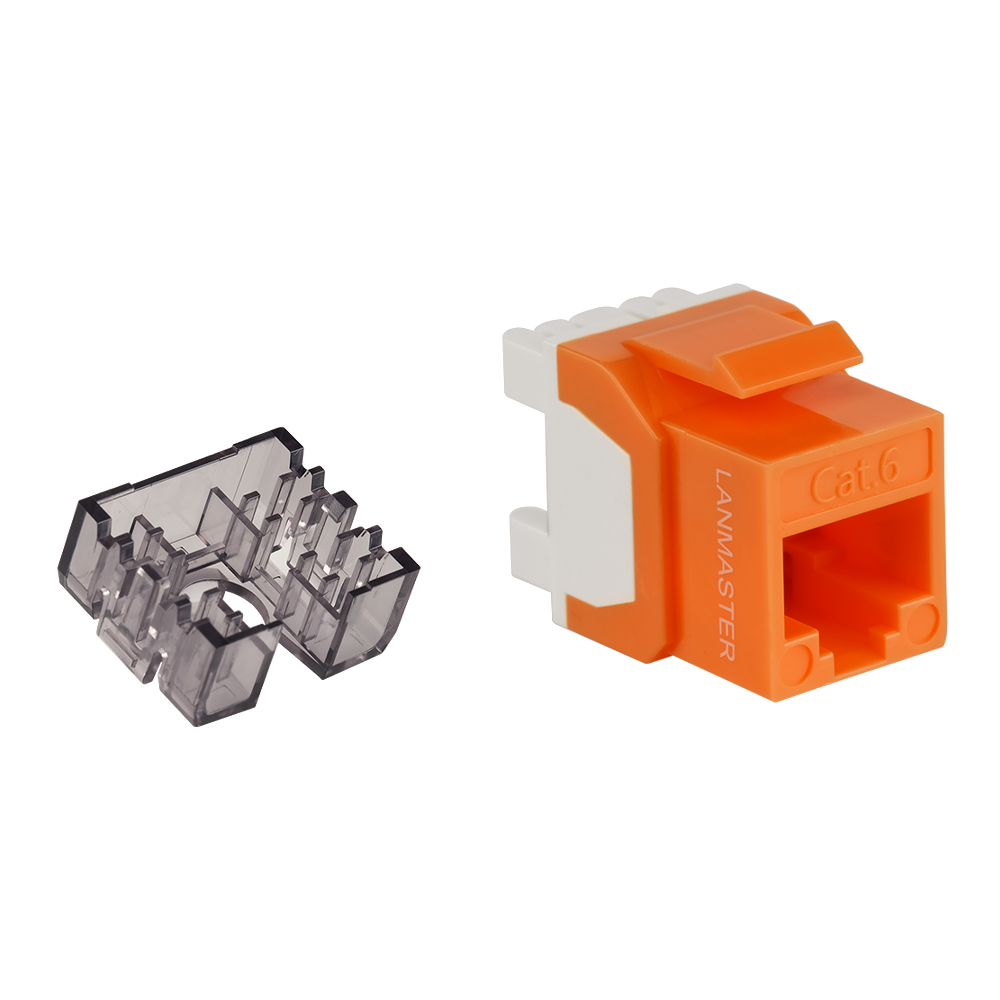

The module is equipped with a protective insert that provides additional fixation of cable conductors terminated in IDC block and prevents the conductors from being pulled out when the cable is overstretched. And provides anchor for fixing the cable jacket with a tie.
Most frequently asked questions and answers
What is the LAN-OK45U6/180N-xx Keystone module used for?

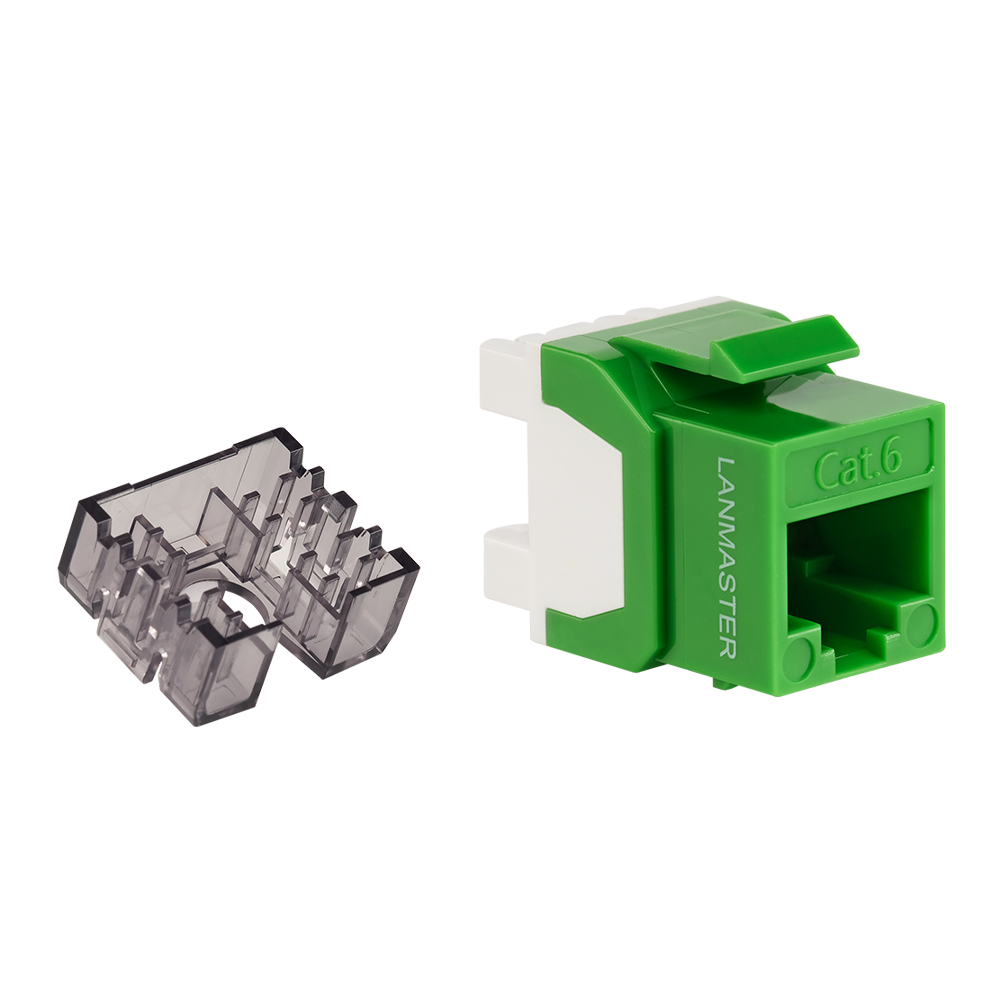

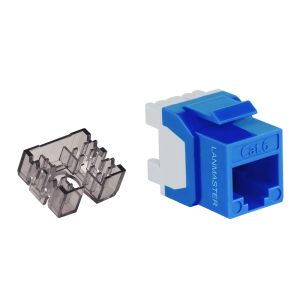

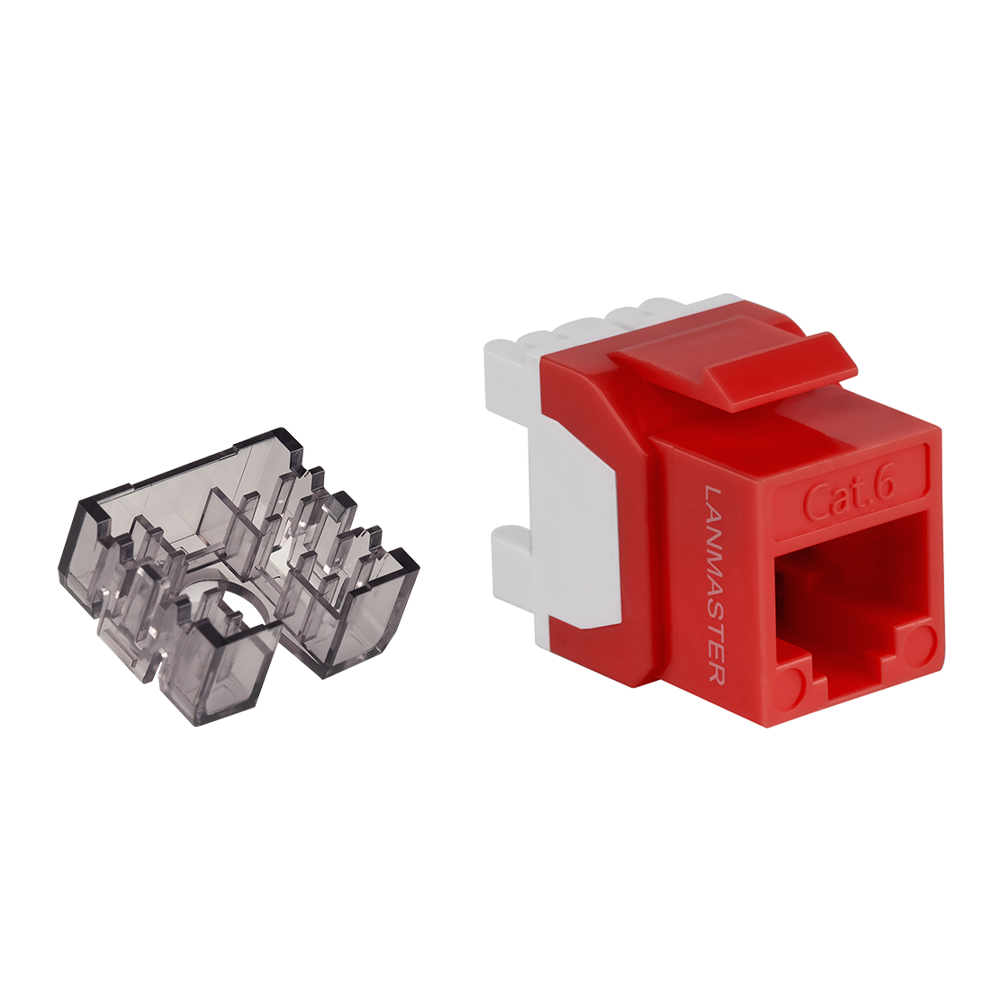

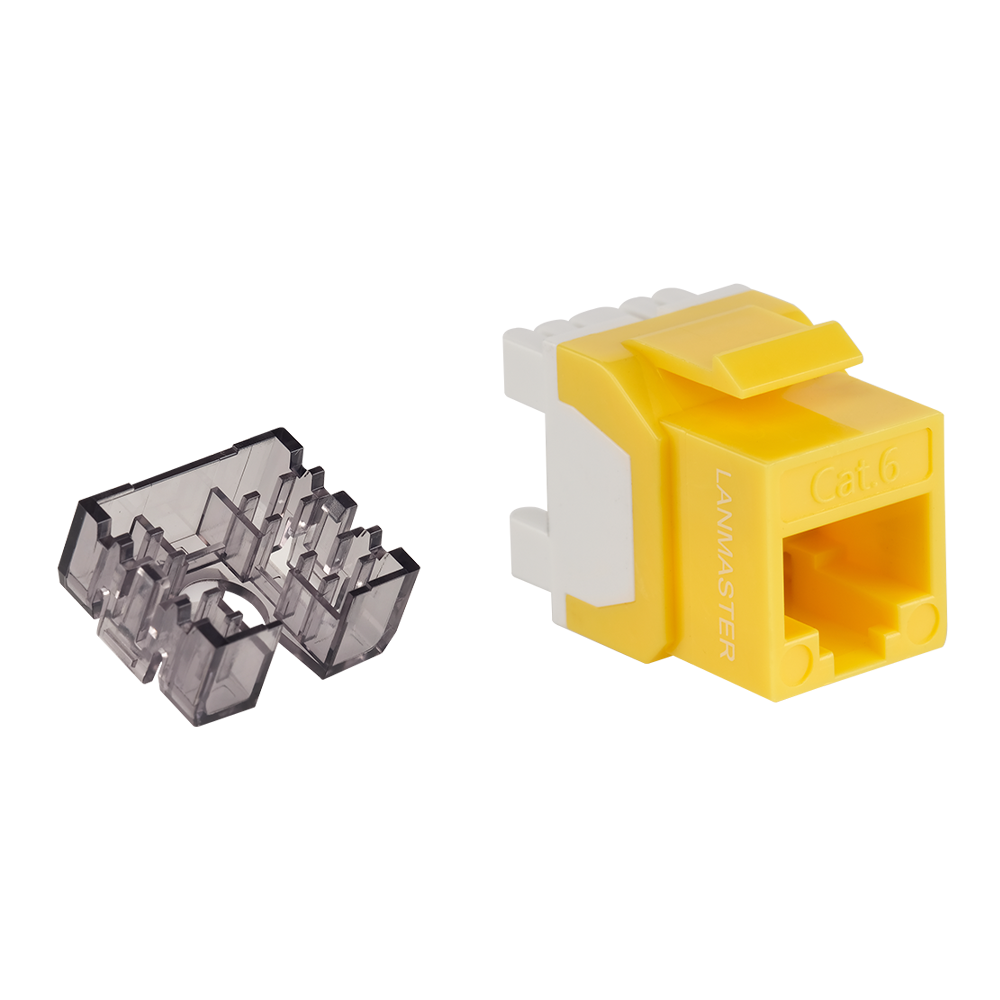

The Keystone module with an RJ-45 socket (8P8C, eight-contact connector) is used for equipping unshielded telecommunication outlets installed in a box, on a wall or in a wall, as well as in modular patch panels (see the compatibility table). The module has the standard Keystone size and suits products of other manufacturers of this format. It complies with the requirements of category 6. Features: the IDC110 contact block is at 180° to the front surface; there is no shutter.
Which speed does the LAN-OK45U6/180N-xx module support?
The module complies with category 6 and is intended for links for Gigabit Ethernet networks and, over a limited link length, 10GBASE-T. The link category is determined by its weakest component, so the cable, patch panels and cords must be of the same or a higher category.
How do I terminate a cable in the LAN-OK45U6/180N-xx Keystone module?
Strip the cable sheath, arrange the conductors according to the diagram printed on the module (T568A or T568B; use one scheme along the whole link) and punch them down to the IDC (insulation displacement contact) contacts with a 110-type punch-down tool. The IDC contacts cut through the insulation, so the conductors need not be stripped. Fit the protective insert if it is included: it holds the conductors and protects them from being pulled out when the cable is tensioned.
Why are LAN-OK45U6/180N-xx modules of different colours needed?

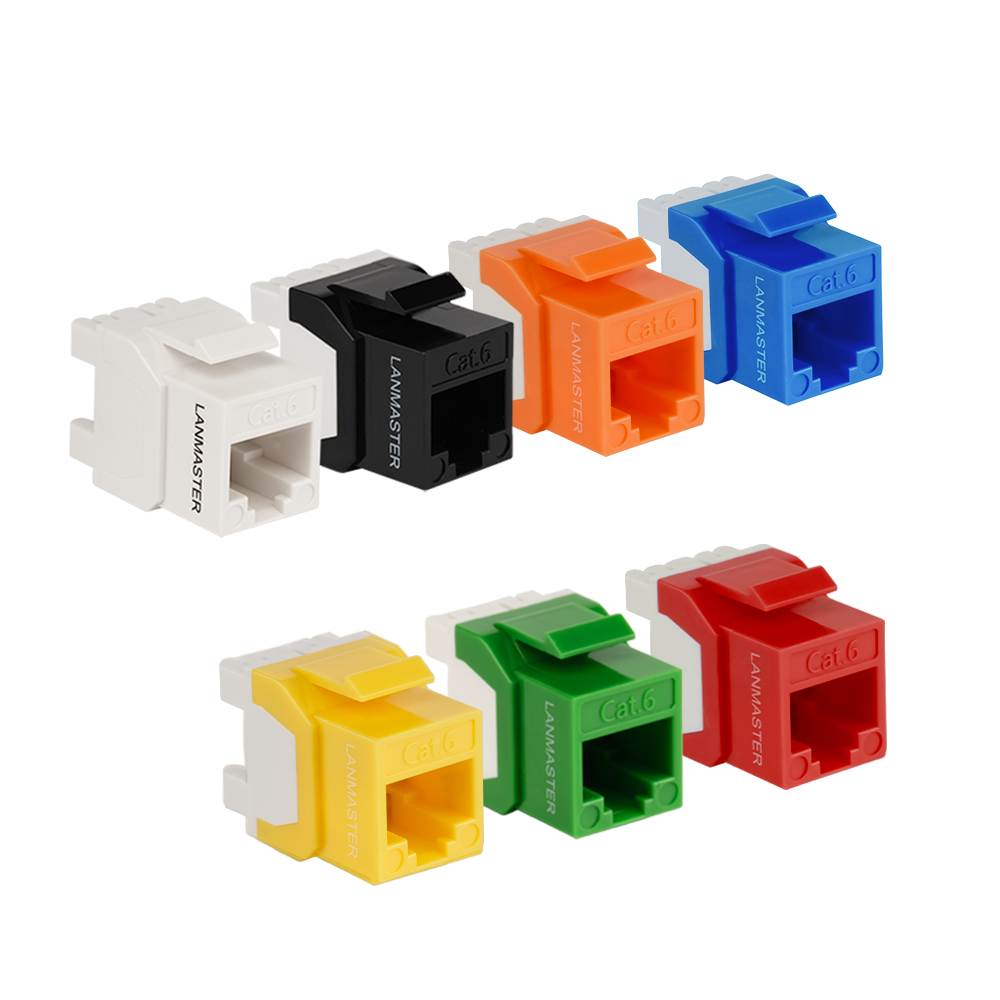

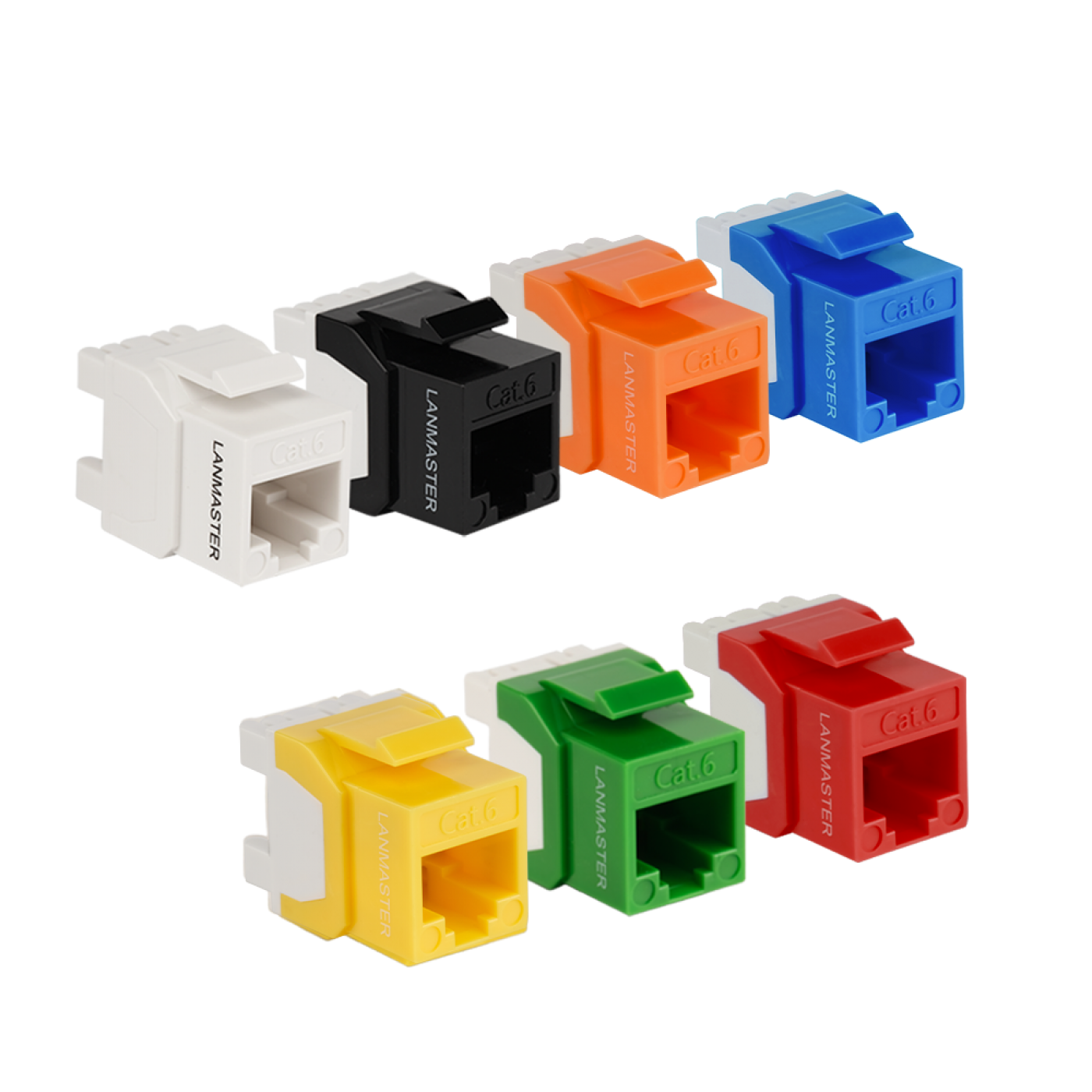

Colour marking of the whole panel or of individual elements allows ports to be identified visually, so multi-coloured Keystone modules are used to improve the administration of the SCS (structured cabling system). For example, telephone, computer and service lines are marked with different colours. Colours of this item: black, blue, red, orange, white, green, yellow.
Which patch panels and outlets is the LAN-OK45U6/180N-xx module compatible with?
The module is installed in Keystone-format modular patch panels and outlets. The compatibility of specific panels is given in the compatibility table on the product page; the module width corresponds to the standard Keystone size.
What should I do if a link with the LAN-OK45U6/180N-xx module is unstable?
Check that the conductors are terminated by the same scheme (T568A or T568B) at both ends of the link, that there is no open or short circuit and that the pairs are not untwisted beyond the length required for termination. Check the link with a tester, redo the termination if necessary and make sure the category of all components is not lower than required.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-OK45U6/180N-BK | pcs | 100 × 70 × 10 | 0.003 | 0.00007 |
| LAN-OK45U6/180N-WH | pcs | 100 × 70 × 10 | 0.003 | 0.00007 |
Package
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| LAN-OK45U6/180N-BK | box | 320 × 200 × 100 | 1 | 0.0064 |
| LAN-OK45U6/180N-WH | box | 320 × 200 × 100 | 1 | 0.0064 |
Product Codes (7)
-
LANMASTER, Category 6, RJ45 keystone jack, 180-degree, 45-degree, shielded, unshielded, shutterless, black
-
LANMASTER, Category 6, RJ45 keystone jack, 180-degree, 45-degree, shielded, unshielded, shutterless, blue
-
LANMASTER, Category 6, RJ45 keystone jack, 180-degree, 45-degree, shielded, unshielded, shutterless, red
-
LANMASTER, Category 6, RJ45 keystone jack, 180-degree, 45-degree, shielded, unshielded, shutterless, orange
-
LANMASTER, Category 6, RJ45 keystone jack, 180-degree, 45-degree, shielded, unshielded, shutterless, white
-
LANMASTER, Category 6, RJ45 keystone jack, 180-degree, 45-degree, shielded, unshielded, shutterless, green
-
LANMASTER, Category 6, RJ45 keystone jack, 180-degree, 45-degree, shielded, unshielded, shutterless, yellow
