10" modular patch panel, unshielded, 12 port, 1U

10" modular patch panel, unshielded, 12 port, 1U

Product Code: LAN-PP12OK-UTP/10

Model range

The modular patch panel is designed for installation of Keystone modules, no more than 17.2 mm wide (see compatibility chart).

Product code LAN-PP16OK-UTP
 LAN-PP24OK-UTP LAN-PP48OK-UTP LAN-PPL24-OK-STP
LAN-OK45U5E/90-WH ✔


LAN-OK45U5E/180-WH ✔ ✔ ✔ ✔
LAN-OK45S5E/90 ✔


LAN-OK45UTP5E-xx ✔


LAN-OK45UTP5E/N-WH
 ✔


LAN-OK45STP5E
 ✔


LAN-TK45UTP5E-xx ✔ ✔ ✔ ✔
LAN-OK45UTP6-WH ✔


LAN-OK45U6/90-WH ✔ ✔ ✔ ✔
LAN-OK45U6/180-WH ✔ ✔ ✔ ✔
LAN-OK45S6/180 ✔ ✔ ✔ ✔
LAN-OK45STP6 ✔


LAN-OK45S6A/180 ✔ ✔ ✔ ✔
TWT-OK45UTP-110WH ✔


TWT-OK45STP-110WH ✔


TWT-OK12UTP-110WH ✔


TWT-OK11UTP-110WH ✔


TWT-OK-BNC ✔


TWT-OK-SC ✔


TWT-OK-ST ✔ ✔ ✔ ✔
TWT-OK-TV/F ✔ ✔ ✔ ✔

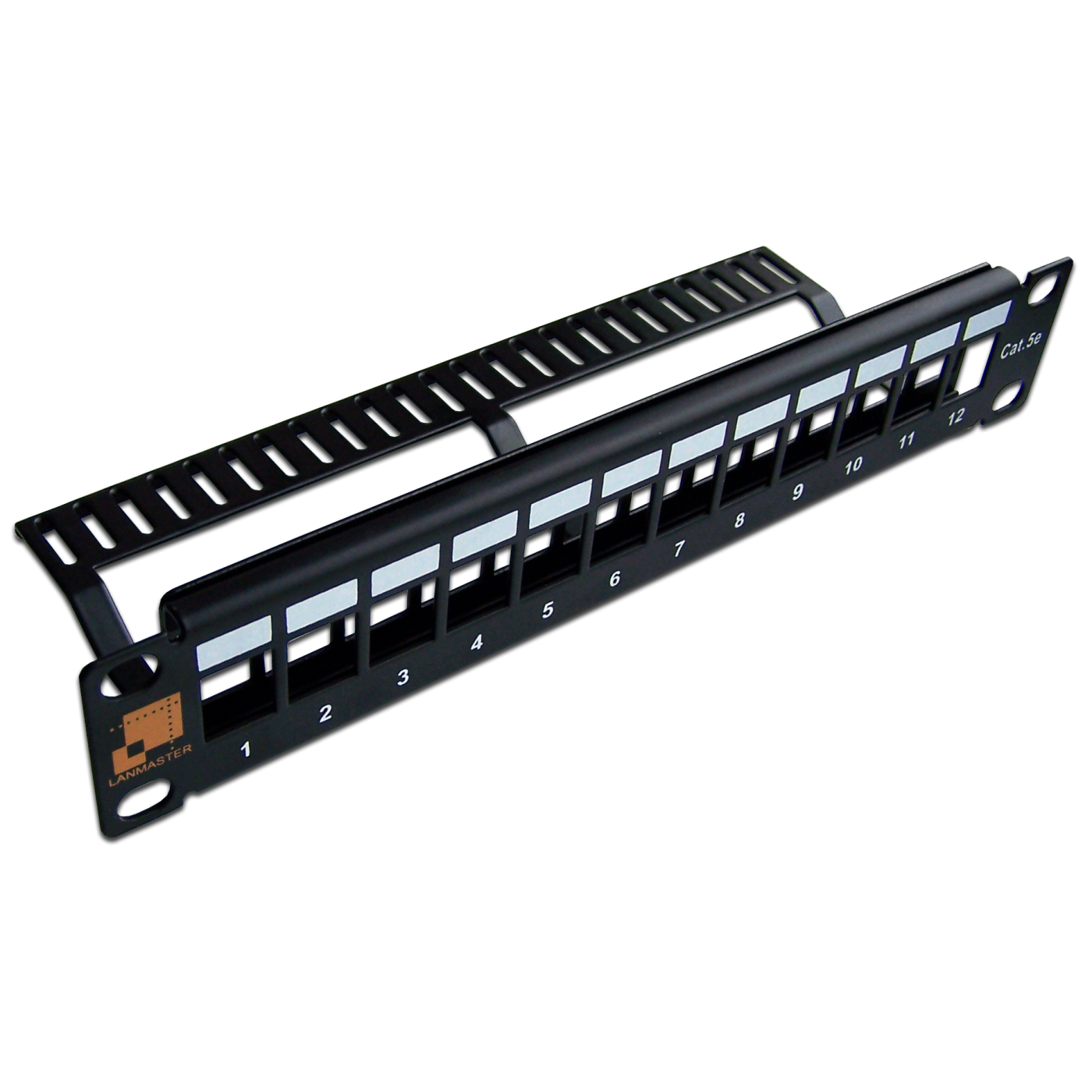

The panel has 12 ports and can be installed in a 10" cabinet with a 254 mm mounting distance between rails. On the front side, the panel ports are numbered and have areas for additional port labels.

Package included:

  • Patch panel - 1 pc.
  • Cable relief bracket - 1 pc.
  • Mounting kit for cabinet rails - 1 pc.

It is possible to use a panel with the following types of connectors for multimedia systems:

  • BNC connectors
  • Fiber optics connectors
  • Audio connectors
  • Video connectors
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
