Product Code: LAN-PRO-L/TPK-N

Cable tester with length measurement and cable tracer, one remote identifier
Model range

The LAN-PRO-L/TPK-N tester is designed to detect all types of conductors and faults in cables and connections.

The instrument is suitable for phone lines, computer networks, communication lines, other wired circuits, and other applications.

Device capabilities:

  • Universal cable tester for checking the continuity and length of twisted pair and coaxial cables.
  • Determining the length of the cable line.
  • Find and identify the line, check its condition, trace, identify the closed pair.
  • A detailed examination of twisted pair: closed, reversed, crossed, and split pairs, reverse connection.
  • Detection of all types of conductors using a tone generator and an inductive probe (SCAN jack).


Head unit emitter technical specifications

Display type LCD
Display size 53 х 25 mm
Maximum fault detection distance 1000 m
Tested cables

Twisted pair: UTP, STP, cat. 5е, 6

Coaxial cables

Phone twisted pair cables

USB–cable
Tone frequency 225 Hz
Battery type 9V, 6F22 type
Measurement accuracy 5%
Body material Plastic
Operating temperature range -10ºC ~ +40ºC
Dimensions 185 х 80 х 32 mm

Inductive probe technical specifications

Battery type 9V, 6F22 type
Probe maximum current consumption Less than 70 mA
Dimensions 218 х 46 х 29 mm

Remote identifier technical specifications

Compatible connectors RJ45, BNC
Maximum distance300 m
Dimensions107 х 30 х 24 mm

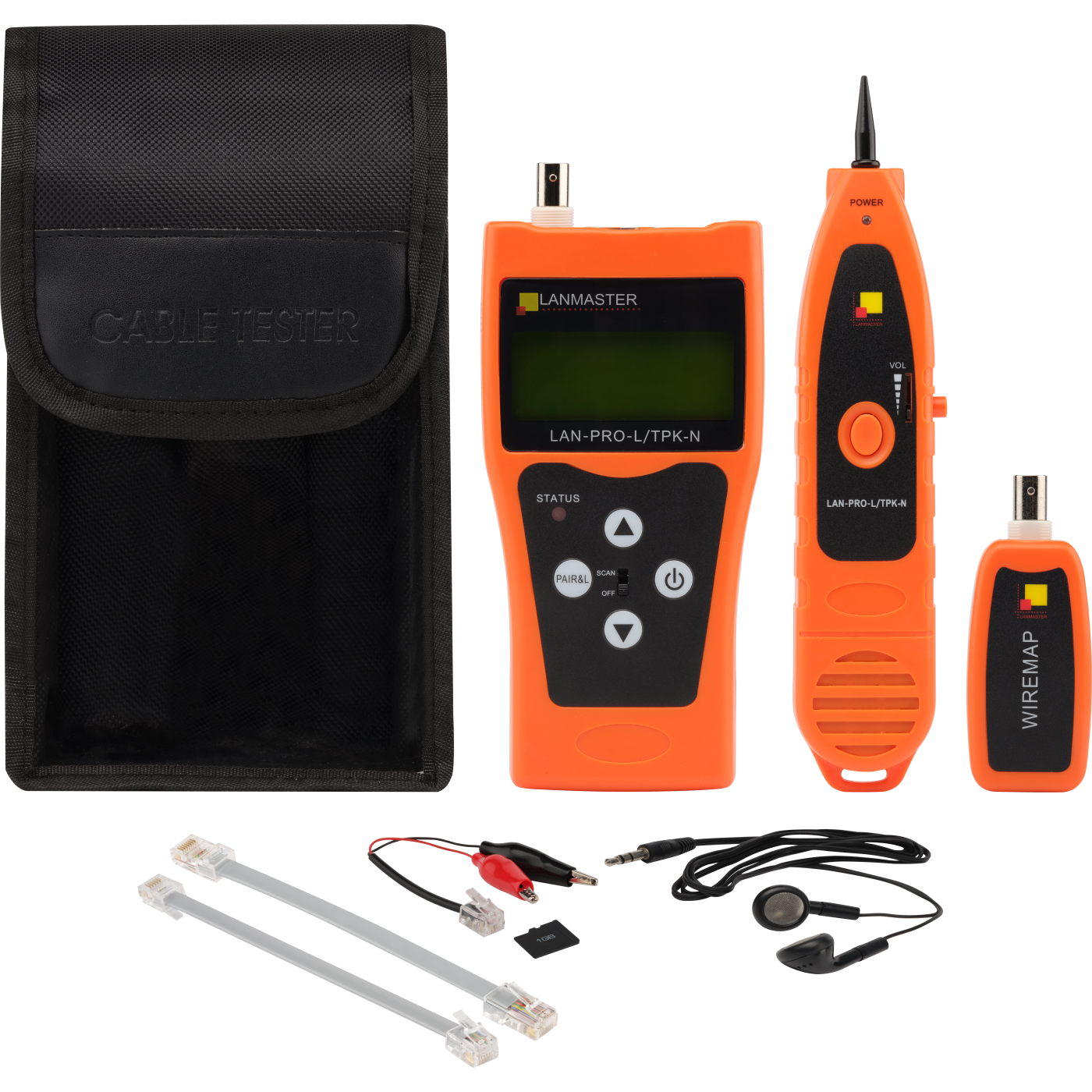

Package includes:

  • Main unit (emitter) — 1 pc.,
  • Inductive probe — 1 pc.,
  • Remote identifier — 1 pc.,
  • 9V 6F22 battery — 2 pcs.,
  • RJ45 - RJ45 jumper — 1 pc.,
  • RJ11 - RJ11 jumper — 1 pc.,
  • RJ-11 - "crocodile" clip adapter — 1 pc.,
  • Earphones — 1 pc.,
  • Belt pouch — 1 pc.,
  • User manual — 1 pc.


Warning!

The body of the LAN-PRO-L/TPK-N tester has undergone some changes in design in 2022.

The devices of the old version of the product are still covered by the factory warranty from the manufacturer according to the specified rules.

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
