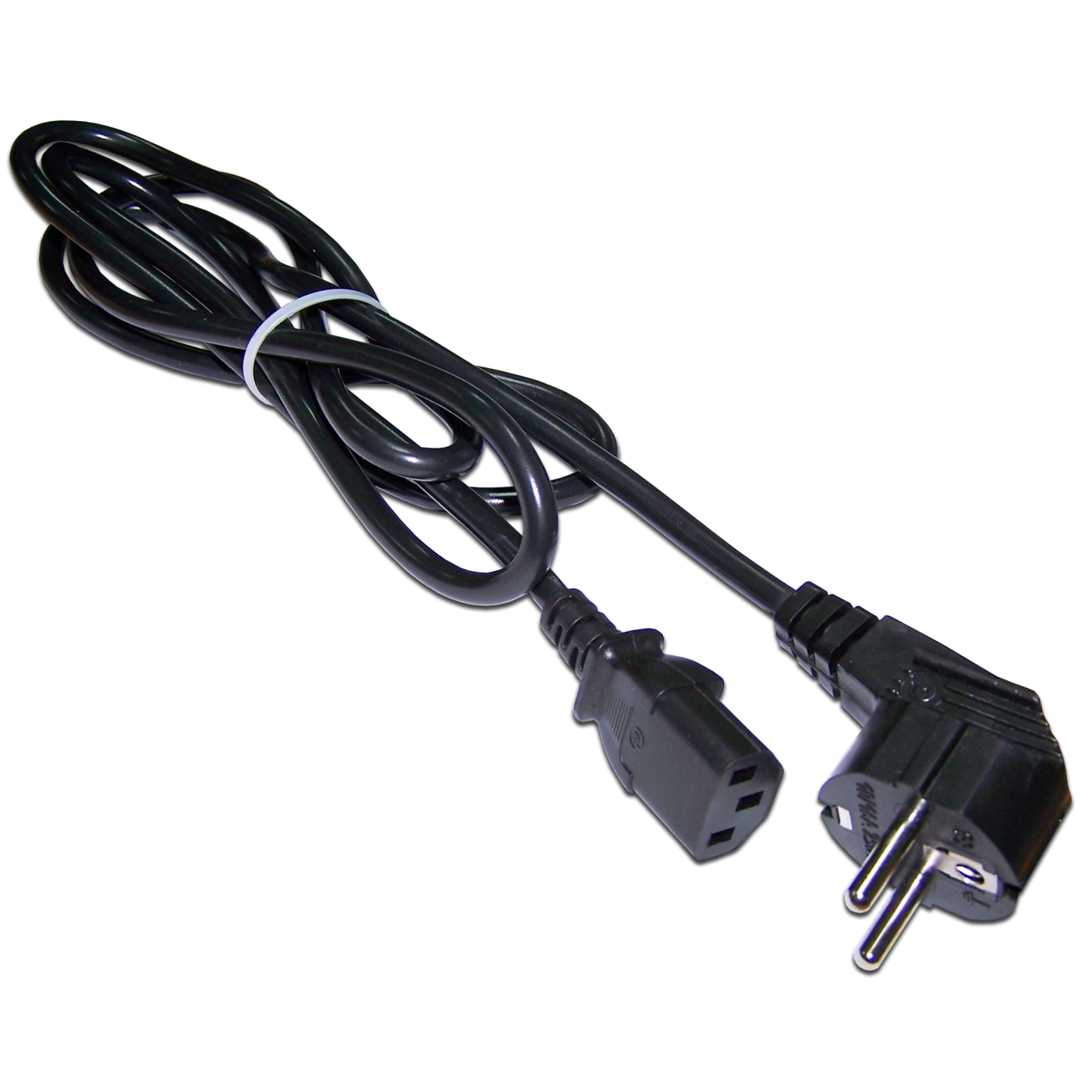

The power cord is intended to connect electrical equipment with IEC 60320 C14 inlet to AC mains up to 250V.
The cord is made of stranded PVC insulated 3 x 0.75 wire.
The cord is made of stranded PVC insulated 3 x 0.75 wire. Side A is DIN49441 connector molded from flame retardant PVC.
The connector on the opposite side (side B) is IEC 60320 C13 connector molded from flame retardant PVC.
Cable type
3х0.75 PVC
Jacket material
PVC (polyvinyl chloride)
Jacket color
Black, white
Cord length
0.5 m, 1 m, 1.5 m, 1.8 m, 2 m, 3 m, 5 m, 7 m, 10 m
Wire cross-section
0,75 mm2
Wire type
Stranded
Maximum current
10 А
Maximum voltage
~250 V
Connector А
DIN49441
Connector В
IEC 60320 C13
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
Model range (36)
Code
Name
LAN-PP13/SHA-1.0-BK
Power cord, C13-Schuko, angled, 3х0.75, 220V, 10A, black, 1 meter
