Power cord, С13-C20, 3х0.75, 220V, 10A

Power cord, С13-C20, 3х0.75, 220V, 10A

Product Code: LAN-PP13/20-x.x-yy

Power cord, С13-C20, 3х0.75, 220V, 10A
Model range

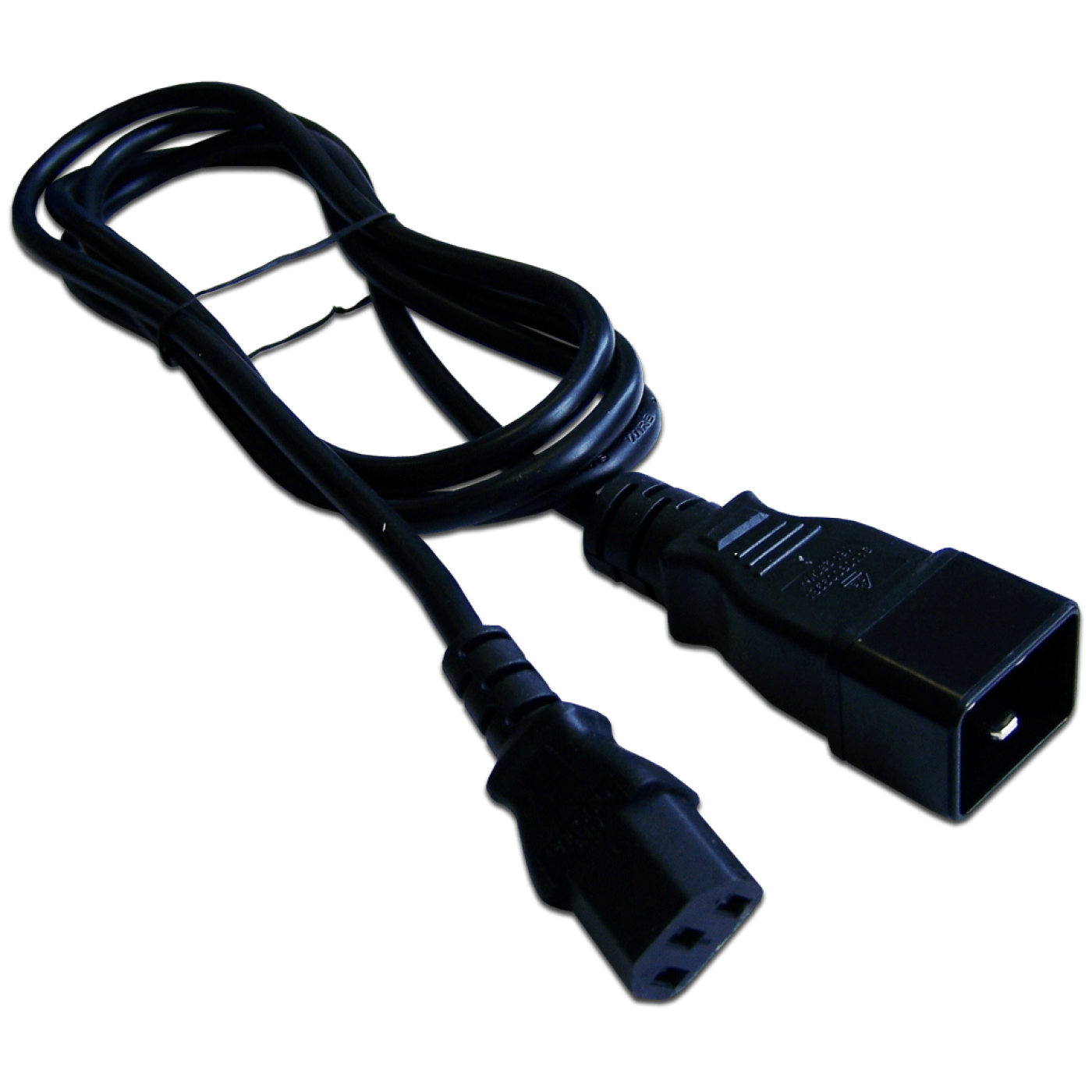

The power cord is intended to connect electrical equipment with IEC 60320 C20 inlet to AC mains up to 250V.

The cord is made of stranded PVC insulated 3 x 0.75 wire. Connector A is IEC 60320 C13 molded from flame retardant PVC. The inlet on the opposite side (side B) is IEC 60320 C20 molded from flame retardant PVC.

Cable type 3х0.75 PVC
Jacket material PVC (polyvinyl chloride)
Jacket color Black, white
Cord length 0.5 m, 1 m, 2 m, 3 m, 5 m
Wire cross-section 0,75 mm2
Wire type Stranded
Maximum current 10 А
Maximum voltage ~250 V
Connector А IEC 60320 C13
Connector В IEC 60320 C20
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (5)

Code Name
LAN-PP13/20-1.0-BK Power cord, С13-C20, 3х0.75, 220V, 10A, 1 meter Add to list
LAN-PP13/20-3.0-BK Power cord, С13-C20, 3х0.75, 220V, 10A, 3 meters Add to list
LAN-PP13/20-2.0-BK Power cord, С13-C20, 3х0.75, 220V, 10A, 2 meters Add to list
LAN-PP13/20-0.5-BK Power cord, С13-C20, 3х0.75, 220V, 10A, 0,5 meters Add to list
LAN-PP13/20-5.0-BK Power cord, С13-C20, 3х0.75, 220V, 10A, 5 meters Add to list
