Fiber optics cable, ZIP-cord

Product Code: LAN-OFC-ZI2-yy-zz

Fiber optics cable, ZIP-cord

Application:

Duplex optical cable for cabling indoors to the work areas and making patch cords.

Design:

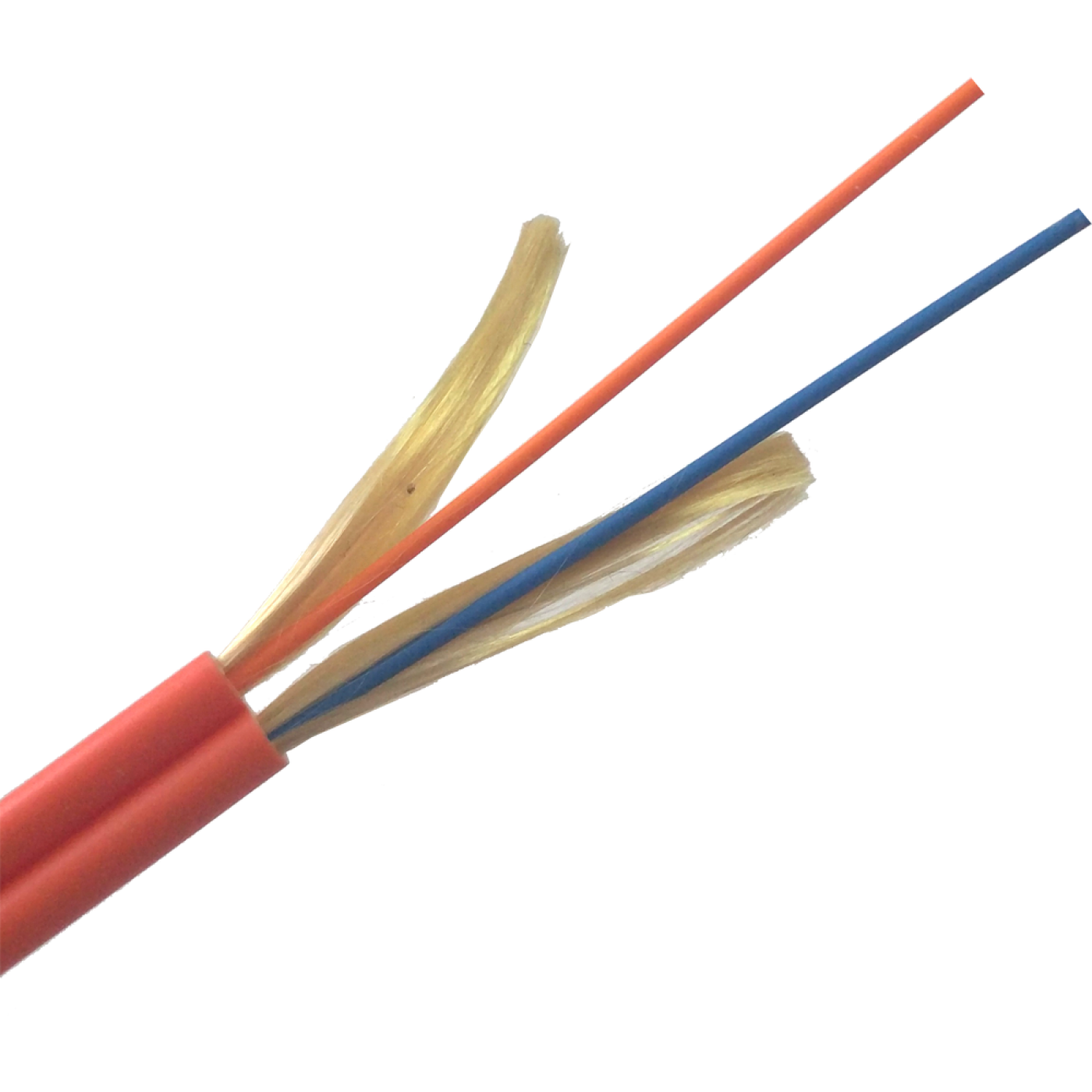

The cable consists of two optical fibers in a tight 900 µm buffer, surrounded by aramid yarn, each fiber is covered with a separate jacket.


Weight and Dimensions

Fiber count 2
Cable dimensions (±0.2) mm 2.85*5.8
Cable weight (±2) kg/km 15,6


Operating conditions

Minimum Bend Radius Without pulling tension 10 cable diameters
With maximum pulling tension 20 cable diameters
Temperature range(℃) Installation -20~+70
Storage -40~+70
Storage -40~+70


Physical specifications

Specification Value
1 Maximum pulling tension (short term impact) 100 N
2 Crush resistance (short term impact) 500 (N/100mm)


Attenuation:

Wavelength Units. G652D single-mode 50/125 multi-mode
850nm dB/km   3.0
1300nm dB/km   1.0
1550nm dB/km 0.3
1310nm dB/km 0.4


Applicable optical fibers:

Identifier Description
SU Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation)
S2 Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation)
S5 Single-mode positive non-zero dispersion shifted fiber (ITU-T G.655 recommendation)
S7 Single-mode with low bending loss (ITU-T G.657 recommendation)
M1 Multi-mode with core to cladding ratio 62,5/125 μm (IEC 60793-2-10 A1b type recommendation)
M2 Multi-mode with core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 type A1a.1 requirements)
M3 Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.2 type requirements)
M4 Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation)


Cable jacket color:

Fiber type Fiber type
Single-mode - SU, S2, S5, S7 Yellow
M2 Orange
M3 Aqua
M4 Purple
Product code Description
LAN-OFC-ZI2-yy-zz

FO cable, indoor, ZIP cord, LSZH, 2 fibers, SM G657/OS2 Ultra/OS2/OM1/OM2/OM3/OM4, color

yy – fiber type (SU, S2, S5, S7, M1, M2, M3, M4)

zz - jacket type - LS (LSZH)
