Application: Subscriber cable for FTTH networks, has small size and high flexibility. Used as a distribution cable for cabling inside buildings, in cable trays, in cable ducts, pipes, and tunnels. Design:

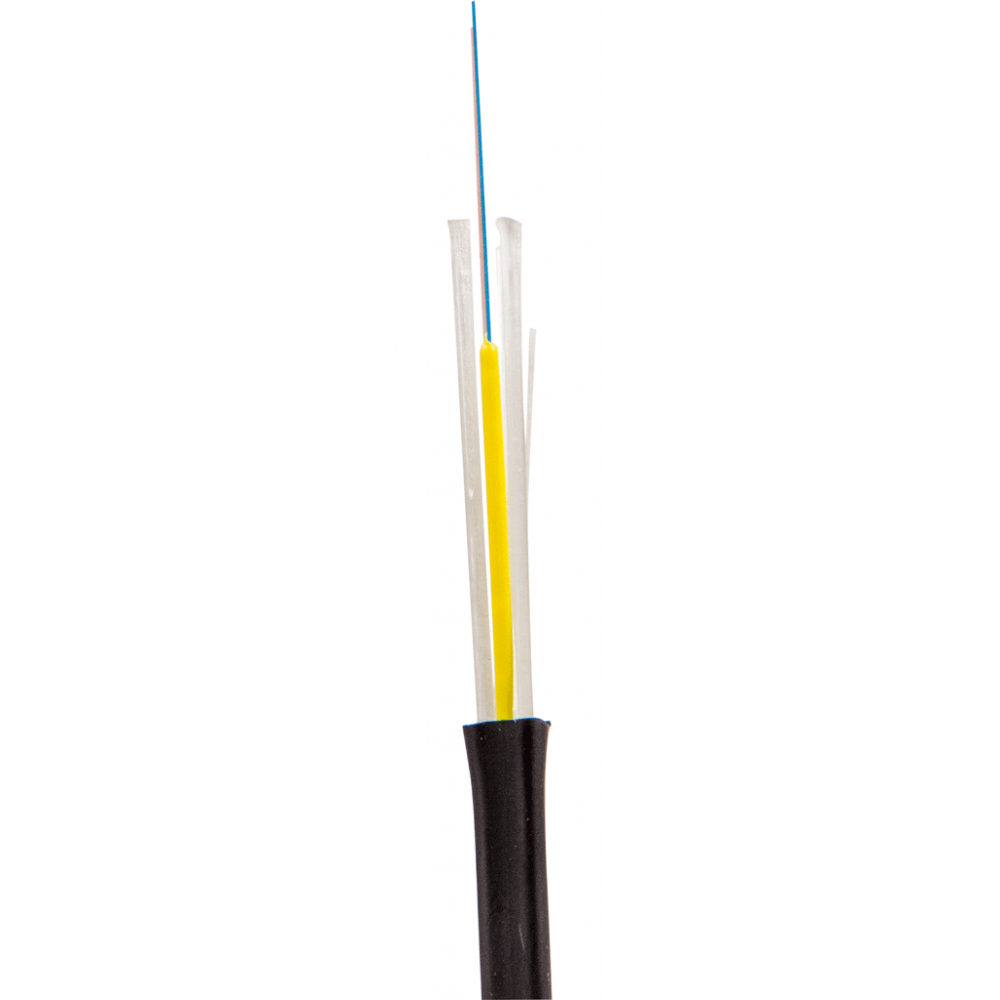

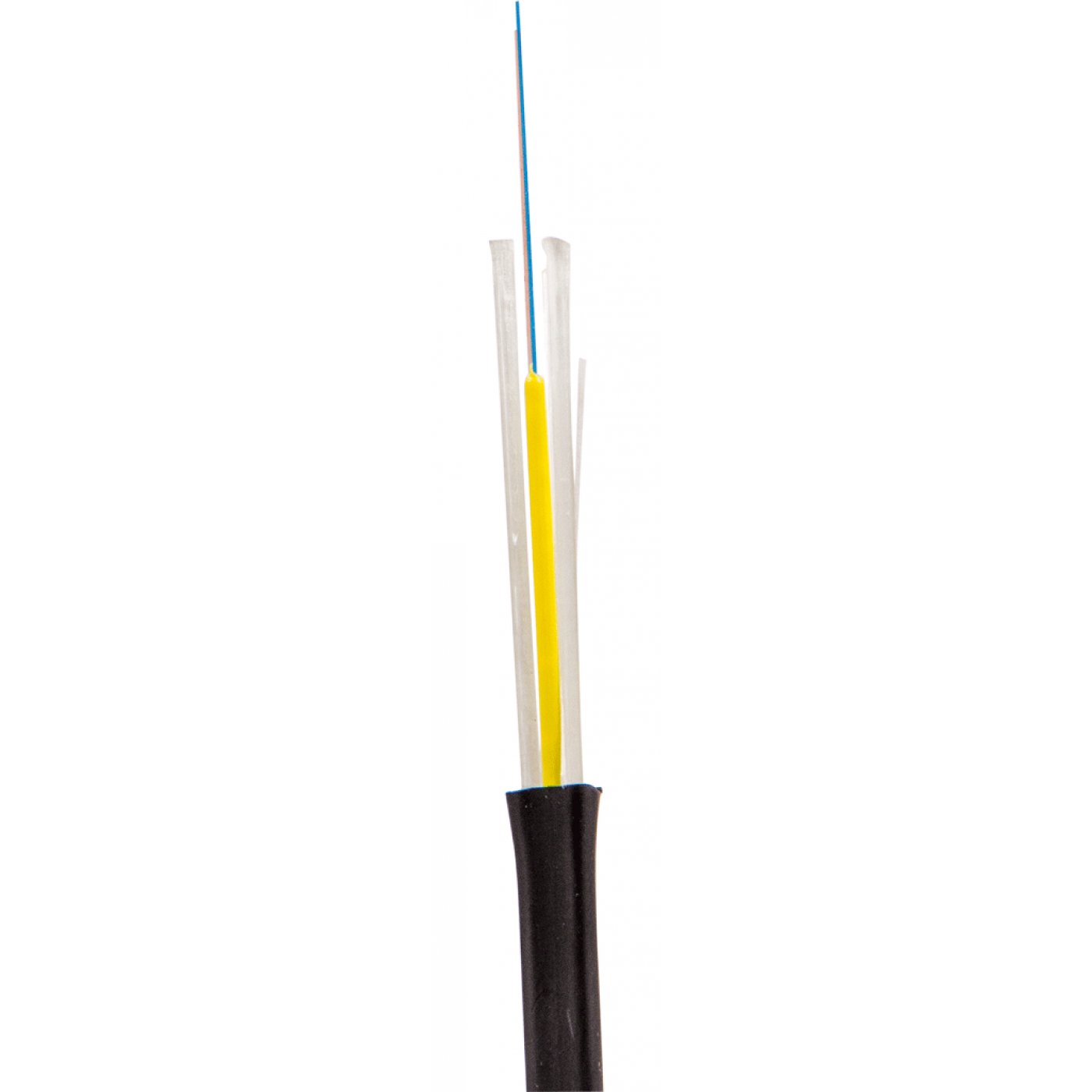

The cable contains multiple optical fibers. Fibers and strength members are covered with jacket. Two strength members provide protection against mechanical stress. The cable jacket is made of a flame retardant halogen-free polymer material with reduced smoke and gas emission. Color identification of optical fibers: | № | 1-4 Fibers | | 1 | Blue | | 2 | Orange | | 3 | Green | | 4 | Brown | Weight and dimensions: | Fiber count in the cable | Cable outer dimensions, mm | Cable weight, kg/km | | 1 | 2 х 3 | 13,5 | | 2 | 2 х 4 | 13,5 | | 4 | 2 х 4 | 13,5 | Operating conditions: | Temperature range（℃） | Installation | -10°С…+60°С | | Storage | -20°С…+60°С | | Operating | -20°С…+60°С | | Operating | 25 years | Physical specifications: | № | Specification | Value | | 1 | Maximum pulling tension | Short term impact | 80 N | | 2 | Maximum crush resistance | Short term impact | 1000 (N/100mm) | | Product code | Description | | LAN-OFC-FIFx-yy-LS | Indoor FTTH Drop cable, flat, FRP, LSZH, x fibers, SM G657/ OM1/OM2/OM3/OM4, white | F- FRP strength members (Fiberglass-Reinforced Plastic rods) x– fiber count yy – fiber type (SU, S2, S5, S7, M1, M2, M3, M4) Applicable optical fibers: | SU | Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation) | | S2 | Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation) | | S5 | Single-mode positive non-zero dispersion shifted fiber (ITU-T G.655 recommendation) | | S7 | Single-mode with low bending loss (ITU-T G.657 recommendation) | | M1 | Multi-mode with core to cladding ratio 62,5/125 μm (IEC 60793-2-10 A1b type recommendation) | | M2 | Multi-mode with core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 type A1a.1 requirements) | | M3 | Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.2 type requirements) | | M4 | Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.3 type requirements) | |
