Indoor/Outdoor Distribution Cable

Indoor/Outdoor Distribution Cable

Product Code: LAN-OFC-DUxx-yy-zz

Indoor/Outdoor Distribution Cable
Model range

Application:

Used as a distribution cable for cabling inside buildings, in cable trays, in cable ducts, pipes and tunnels, as well as for cabling on external facades of buildings.

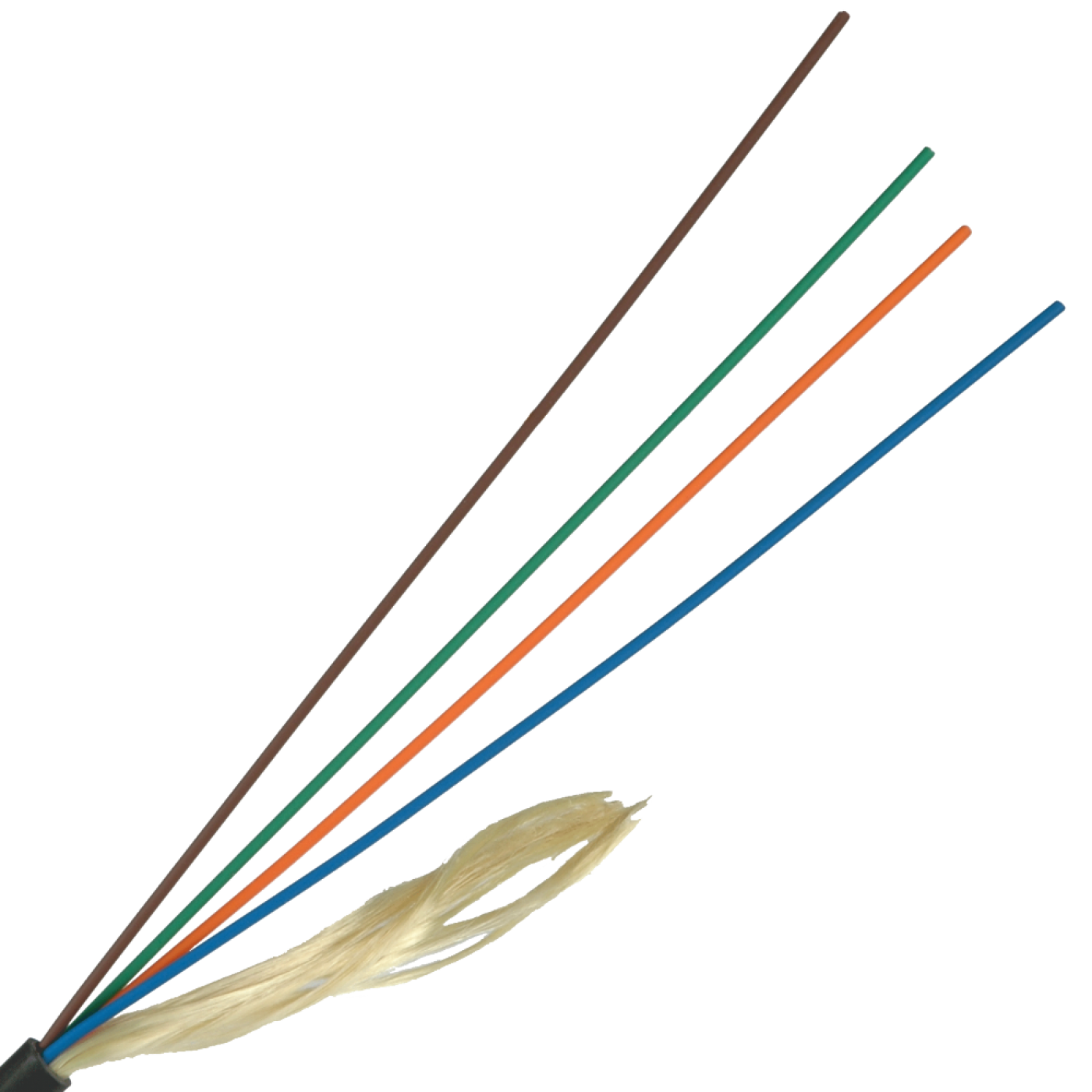

The cable contains a bundle of tight buffer fibers which is covered with a layer of strength aramid yarn. The cable jacket is made of a flame retardant, halogen-free, low-smoke polymer composition. The cable jacket is made of a black polymer composition resistant to ultraviolet radiation.

ПBy agreement with the customer, the color of the jacket can be changed.

The maximum count of optical fibers is 48.

№ Fibers 1-12 № Fibers 13-24 № Fibers 25-36 № Fibers 37-48
1 Blue 13 Blue + 1 mark 25 Blue + 2 marks 37 Blue + 3 marks
2 Orange 14 Orange + 1 mark 26 Orange + 2 marks 38 Orange + 3 marks
3 Green 15 Green + 1 mark 27 Green + 2 marks 39 Green + 3 marks
4 Brown 16 Brown + 1 mark 28 Brown + 2 marks 40 Brown + 3 marks
5 Grey 17 Grey + 1 mark 29 Grey + 2 marks 41 Grey + 3 marks
6 White 18 White + 1 mark 30 White + 2 marks 42 White + 3 marks
7 Red 19 Red + 1 mark 31 Red + 2 marks 43 Red + 3 marks
8 Black 20 Black + 1 mark 32 Black + 2 marks 44 Black + 3 marks
9 Yellow 21 Yellow + 1 mark 33 Yellow + 2 marks 45 Yellow + 3 marks
10 Violet 22 Violet + 1 mark 34 Violet + 2 marks 46 Violet + 3 marks
11 Pink 23 Pink + 1 mark 35 Pink + 2 marks 47 Pink + 3 marks
12 Turquoise 24 Turquoise + 1 mark 36 Turquoise + 2 marks 48 Turquoise + 3 marks

Weight and Dimensions:

Fiber count in the cable Cable diameter, mm Cable weight, kg/km Minimum Bend Radius, mm
2 5,1 29,8 51
4 5,6 35,1 56
6 6,0 39,7 60
8 6,3 43,7 63
12 6,9 51,6 69
16 7,5 60,2 75
24 8,5 75,4 85
32 10,5 95,2 105
36 11,0 102,0 110
48 12,1 121,4 121

Operating conditions:

Operating Temperature  -40°С…+60°С;
Installation Temperature  -10°С…+50°С
Storage Temperature  -50°С…+50°С
Minimum Bend Radius At least 10 cable diameters
Lifetime 25 years

Physical specifications:

Optical cable is resistant to the following impacts

Impact type Nominal value Criteria for evaluation
Installation pulling tension (IEC 794-1-93 Е1 test procedure) 1600 N Δα* ≤ 0,05 dB no damage
Long term pulling tension (IEC 794-1-93 Е1 test procedure) 800 N
Crush resistance (IEC 794-1-9З Е3 test procedure) 200 N/cm
Dynamic bending stresses (IEC 794-1-93 Е6 test procedure) 20 cycles at an angle ±90°
Axial twisting stresses (IEC 794-1-93 Е7 test procedure) - 10 cycles
  - at an angle of ± 360° at a length of 4 m
Impact (IEC 794-1-93 Е4 test procedure) Impact energy is 3 J
Climatic impact** (IEC 794-1-93 F1 test procedure) - temperature range from minus 40 to 60 °С Δα ≤ 0,05 dB/km
- 2 cycles
- cycle duration ≥ 16 hours

* - increase in attenuation of an optical fiber in a cable at specific wavelengths.

** - by agreement with the customer, the operating temperature range can be changed.

Product code Description
LAN-OFC-DUxx-yy-HF Indoor/Outdoor FO cable, Distribution, нг(А)-HF, xx fibers, OS2 Ultra/OM1/OM2/OM3/OM4, black

xx – fiber count

yy – fiber type (SU, S5, S7, M1, M2, M3, M4)

HF – нг(A)-HF jacket is made of polymeric material that is flame retardant in bundles, with reduced smoke and gas emission and does not contain halogens.

Applicable optical fibers:

SU Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation)
S5 Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation)
S7 Single-mode positive non-zero dispersion shifted fiber (ITU-T G.655 recommendation)
M1 Single-mode with low bending loss (ITU-T G.657 recommendation)
M2 Multi-mode with core to cladding ratio 62,5/125 μm (IEC 60793-2-10 A1b type recommendation)
M3 Multi-mode with core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 type A1a.1 requirements)
M4 Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.2 type requirements)
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
