Used as a distribution cable for cabling in cable trays, in cable ducts, pipes, tunnels, and for cabling on the external facades of buildings.
Design:

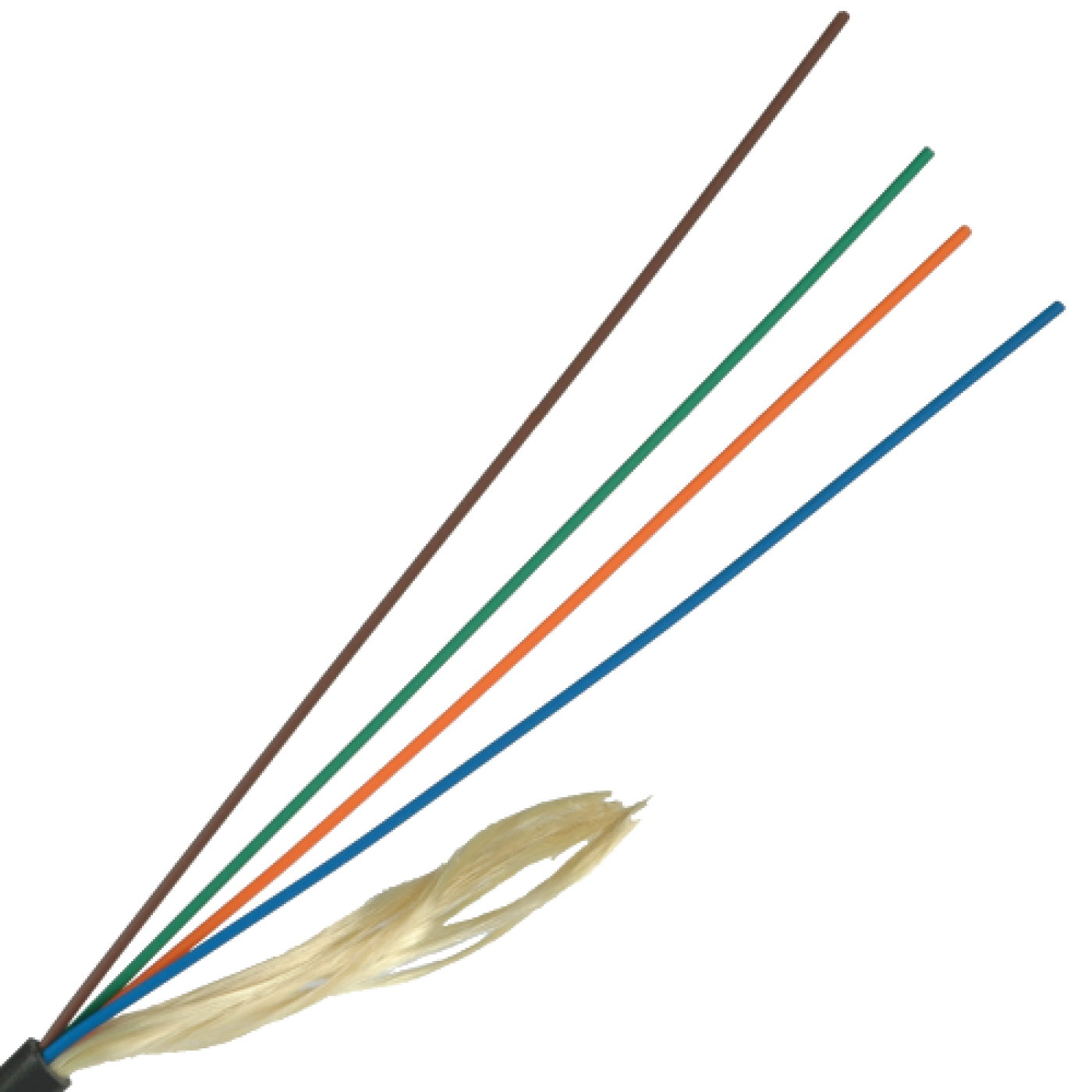

The cable contains a bundle of optical fibers in a tight buffer coating which is covered with a layer of reinforcing aramid yarn. The cable jacket is made of polyethylene.
Cable jacket color is black.
Color identification of tight buffer optical fibers:
№
Fibers 1-12
№
Fibers 13-24
1
Blue
13
Blue + 1 метка
2
Orange
14
Orange + 1 mark
3
Green
15
Green + 1 mark
4
Brown
16
Brown + 1 mark
5
Grey
17
Grey + 1 mark
6
White
18
White + 1 mark
7
Red
19
Red + 1 mark
8
Black
20
Black + 1 mark
9
Yellow
21
Yellow + 1 mark
10
Violet
22
Violet + 1 mark
11
Pink
23
Pink + 1 mark
12
Turquoise
24
Turquoise + 1 mark
Weight and dimensions:
Fiber count in the cable
Cable diameter, (±0.2) mm
Cable weight, (±5) kg/km
2
4,0
14,1
4
4,5
18,0
8
5,0
30,0
16
7,0
40,0
24
7,2
55,0
Operating conditions:
Minimum bend radius
Without pulling tension
10 cable diameters
With maximum pulling tension
20 cable diameters
Temperature range（℃）
Installation
-10°С…+60°С
Storage
-20°С…+60°С
Operating
-20°С…+60°С
Lifetime
25 years
Physical characteristics:
№
Characteristic
Value
1
Maximum pulling tension
Short term impact
660 N
2
Maximum crushing strength
Short term impact
1000 (N/100mm)
Applicable optical fibers:
SU
Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation)
S2
Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation)
Single-mode with low bending loss (ITU-T G.657 recommendation)
M1
Multi-mode with core to cladding ratio 62,5/125 μm (IEC 60793-2-10 A1b type recommendation)
M2
Multi-mode with core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 type A1a.1 requirements)
M3
Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.2 type requirements)
M4
Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.3 type requirements)
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
Model range (5)
Code
Name
LAN-OFC-DO2-S7-PE
Outdoor FO cable, Distribution, PE, 2 fibers, SM, G.657, black
