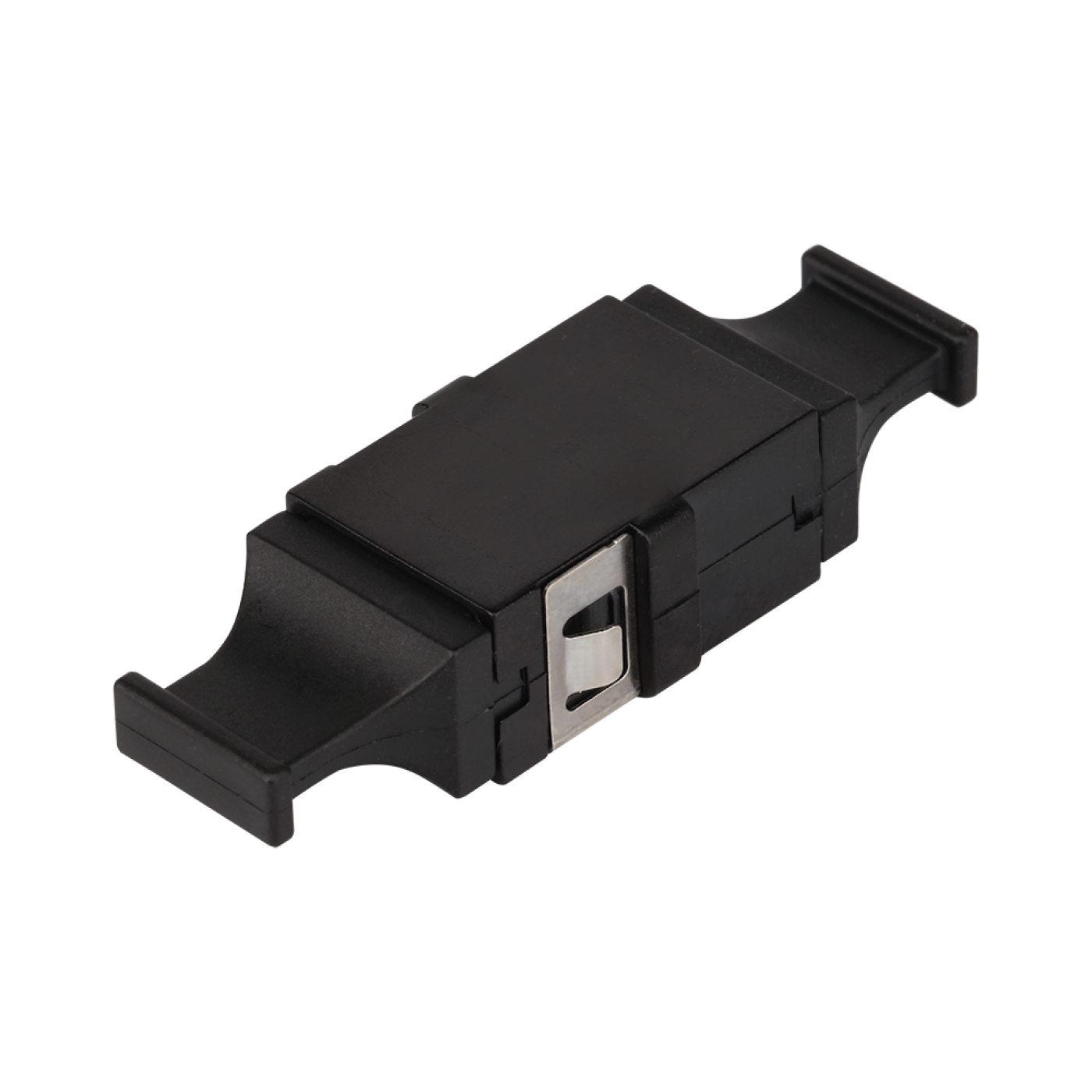

LANMASTER MPO Optical Adapter Without Flanges, Black

LANMASTER MPO optical adapter without flanges, black. Connect MPO-MPO cables, Hydra cables. A/B polarity. Includes dust caps.
LAN-MPO/NF-xM-MM

Adapters serve as pass-through couplers, ensuring precise alignment of connector ferrules and securing connectors in a mated state.

Pass-through adapters enable connection between two MPO connectors, allowing interconnection of MPO-MPO cable trunks and Hydra-style cables. Available in A and B polarity types.

Adapters are secured in faceplates or cassette assemblies using spring-loaded clips. Dust caps are included in the kit to protect connectors from dust and debris.

Frequently Asked Questions

What are the LAN-MPO/NF-xM-MM adapters used for?

The LAN-MPO/NF-xM-MM adapters are flangeless pass-through sockets for joining two MPO (Multi-fiber Push-On, multi-fiber connector) connectors. They align the ferrules, hold the connectors pressed against each other and join MPO–MPO trunk assemblies and breakout cables. Plastic caps are supplied.

LAN-MPO/NF-xM-MM product
LAN-MPO/NF-xM-MM product
What is the difference between LAN-MPO/NF-AM-MM and LAN-MPO/NF-BM-MM?

LAN-MPO/NF-AM-MM is type A (Key-up/Key-down) and LAN-MPO/NF-BM-MM is type B (Key-up/Key-up). Choose the type according to the polarity diagram of the line and use one type throughout the line.

How are the flangeless LAN-MPO/NF-xM-MM adapters secured?

The adapters are secured in a front insert or cassette with snap-in clips — without screws. For adapters with flanges use LAN-MPO-xM-MM.

How should MPO (Multi-fiber Push-On, multi-fiber connector) polarity be selected for адаптеров LAN-MPO/NF-xM-MM?

According to discussions on specialist network engineering forums, polarity errors with MPO (Multi-fiber Push-On, multi-fiber connector) are among the most frequent causes of a missing link in multi-fiber connector lines. Before installation draw a diagram of the line and check that the transmitter at one end is connected to the receiver at the other. For cassettes, adapters and trunk assemblies of polarity type B (Key-up/Key-up) use type B components throughout the line.

How should the LAN-MPO/NF-xM-MM adapters be cleaned?

Before connecting, remove the caps and inspect the MPO (Multi-fiber Push-On, multi-fiber connector) connector end faces; clean them with the LAN-FT-CL/MPO tool if they are dirty. Close unused adapters with the supplied caps.
