Plinth for DC series cabinets

Plinth for DC series cabinets LAN-DC-CB-x-10-PL2: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.

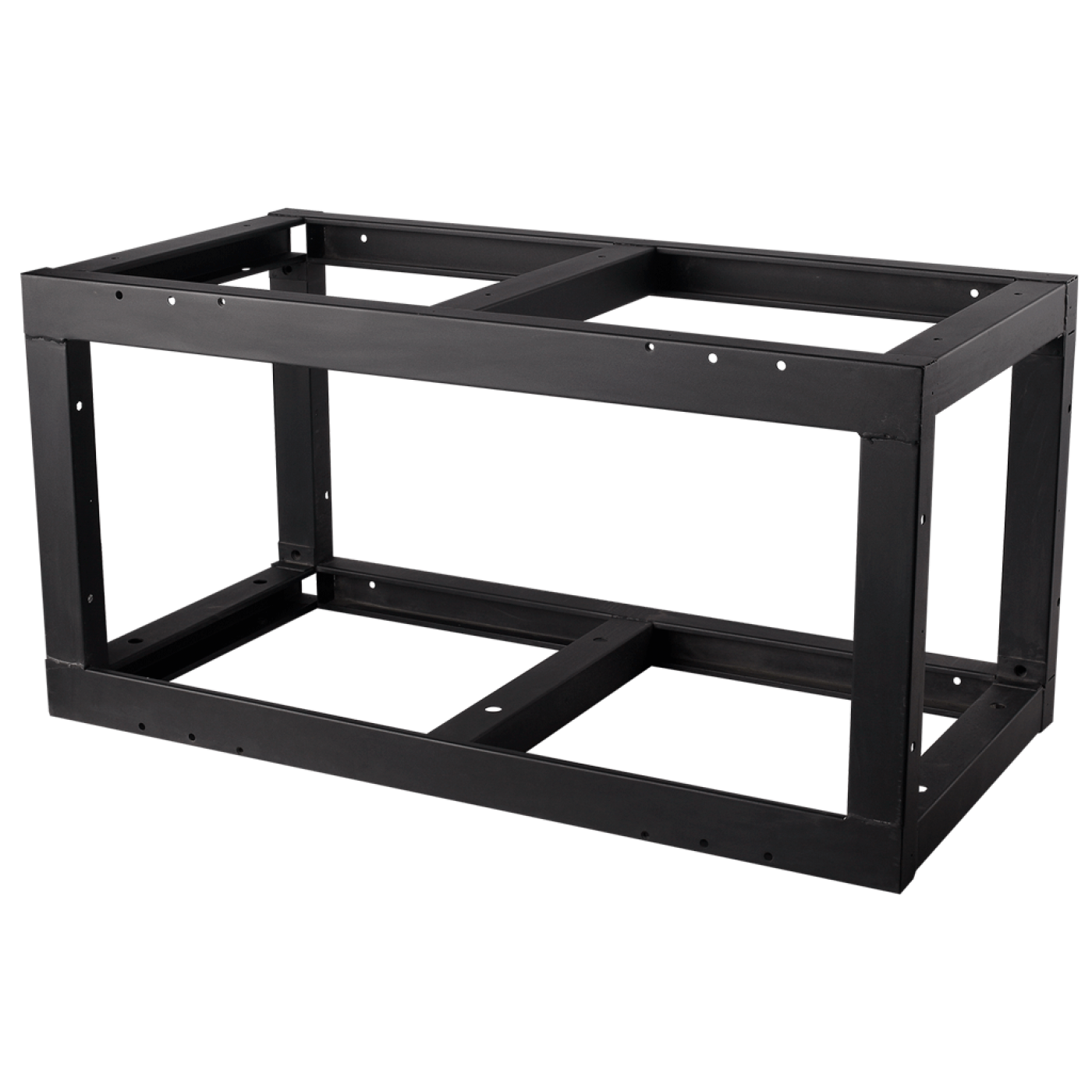

LAN-DC-CB-x-10-PL2

The plinth is used to install cabinets in rooms with a raised floor that is not designed for a large static load. When installing the cabinet on the plinth, in the gap between the raised floor tiles, the weight of the cabinet is evenly distributed over the surface of the main floor of the room.

Plinth height is 200mm, it is delivered assembled. Production of plinths of various height is possible under the order. It has a reinforced structure, can withstand a total load of up to 1500 kg. It fixes to the cabinet body with screws.

As an option, a plinth side panels kit can be installed. Plinths can also be used instead of castors and feet to increase the stability of the cabinet, and to store an excess of cable. In contrast to installing the cabinet on feet (castors), the pressure per surface area unit is significantly reduced.

Frequently asked questions and answers

What is the LAN-DC-CB-x-10-PL2 plinth designed for?

The plinth is designed for installing a cabinet in rooms with a raised floor that is not rated for a heavy static load: the cabinet's weight is spread onto the main floor through the gaps between the raised-floor tiles.

What other function does the plinth serve besides spreading the load?

The plinth can replace rollers or legs to improve cabinet stability and provides storage space for spare cable; compared with rollers or legs it greatly reduces the pressure per unit of floor area.

What maximum load can the plinth support?

The plinth's reinforced construction supports a total load of up to 1500 kg.

What height is the plinth, and can a different height be ordered?

The standard height is 200 mm, supplied assembled; other heights are made on request.

What sizes is the plinth available in?

Variants of 300×1070, 600×1070, 800×1070, 600×1200, and 800×1200 mm (width x depth) are available, all 200 mm high without side panels.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-CB-3x10-PL2 pcs 1080 × 220 × 320 22 0.076032
LAN-DC-CB-6x10-PL2 pcs 1080 × 220 × 620 32 0.147312
LAN-DC-CB-8x10-PL2 pcs 1100 × 820 × 220 26 0.19844
LAN-DC-CB-6x12-PL2 pcs 1210 × 220 × 620 26 0.165044
LAN-DC-CB-8x12-PL2 pcs 1210 × 220 × 820 31.5 0.218284

Product Codes (5)

  • LANMASTER DC plinth, 300x1070 mm, 200 mm height, without side panels
  • LANMASTER DC plinth, 600x1070 mm, 200 mm height, without side panels
  • LANMASTER DC plinth, 800x1070 mm, 200 mm height, without side panels
  • LANMASTER DC plinth, 600x1200 mm, 200 mm height, without side panels
  • LANMASTER DC plinth, 800x1200 mm, 200 mm height, without side panels
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
