Side panels kit for DC series cabinet plinth

Side panels kit for DC series cabinet plinth LAN-DC-CB-xxyy-PL2SP: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
LAN-DC-CB-xxyy-PL2SP

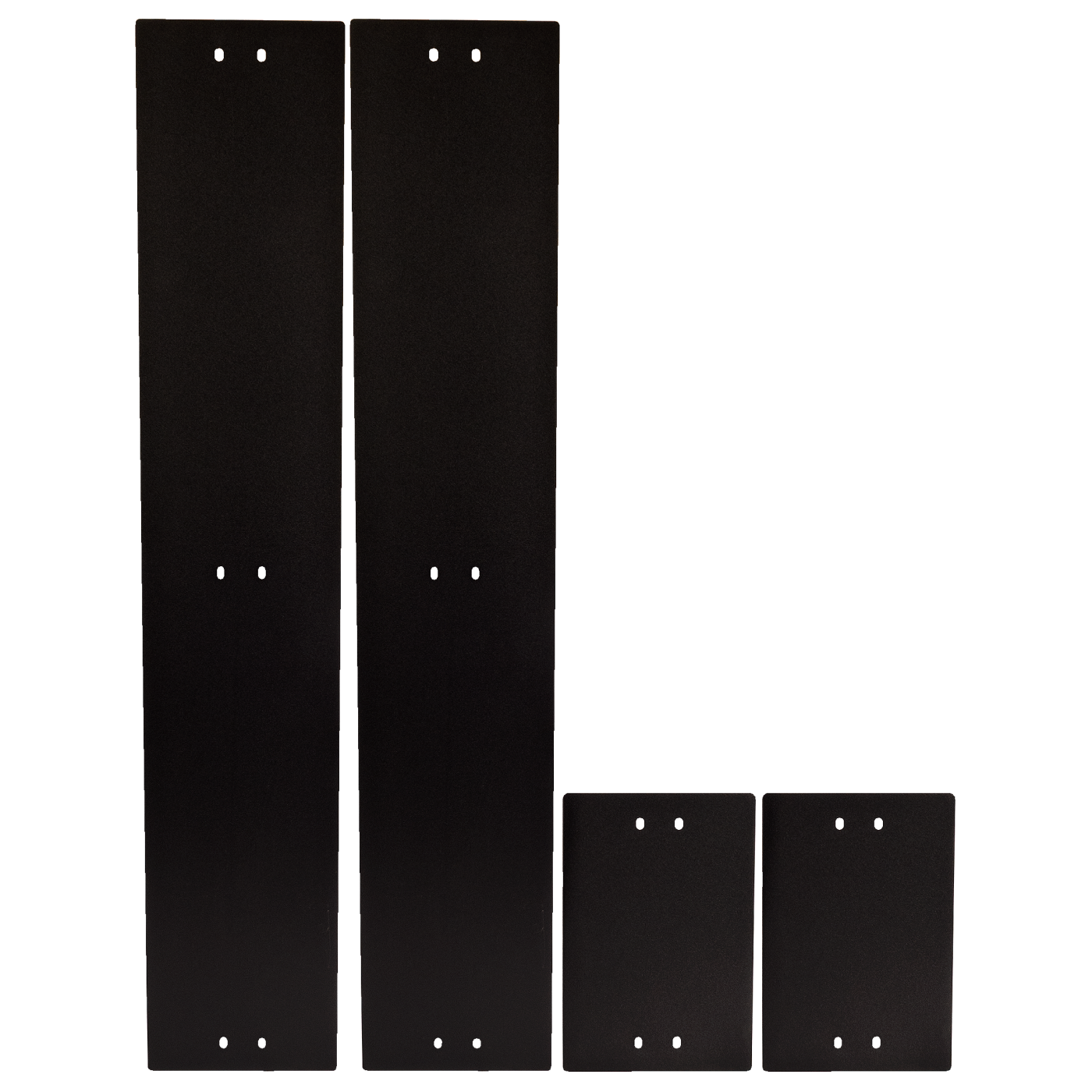

The kit is designed for installation on the side surfaces of the LAN-DC cabinet plinths.


The design of the plinths allows you to install side panels even when the cabinet is already installed on the plinth.

Frequently asked questions and answers

What are the LAN-DC-CB-xxyy-PL2SP panels designed for?

These side panels cover the side surfaces of the LAN-DC-CB-x-10-PL2 plinth installed under a LANMASTER DC series cabinet.

Can these panels be installed if the cabinet is already mounted on the plinth?

Yes, the plinth's design allows the side panels to be installed even after the cabinet is already mounted on the plinth.

What height are the panels?

All panel variants are sized for a 200 mm high plinth.

What sizes is the kit available in?

Variants are available for plinths sized 300×1070, 600×1070, 600×1200, 800×1070, and 800×1200 mm (cabinet width x depth).

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
LAN-DC-CB-3x10-PL2SP pcs 1110 × 40 × 230 5.4 0.010212
LAN-DC-CB-6x10-PL2SP pcs 1110 × 70 × 300 13.1 0.02331
LAN-DC-CB-6x12-PL2SP pcs 1230 × 50 × 250 14.3 0.015375
LAN-DC-CB-8x10-PL2SP pcs 1110 × 80 × 270 14.6 0.023976
LAN-DC-CB-8x12-PL2SP box 1220 × 60 × 220 17 0.016104

Product Codes (5)

  • Side panels kit for LANMASTER DC cabinet, 300x1070 mm, 200 mm height
  • Side panels kit for LANMASTER DC cabinet, 600x1070 mm, 200 mm height
  • Side panels kit for LANMASTER DC cabinet, 600x1200 mm, 200 mm height
  • Side panels kit for LANMASTER DC cabinet, 800x1070 mm, 200 mm height
  • Side panels kit for LANMASTER DC cabinet, 800x1200 mm, 200 mm height
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
