LANMASTER FTP cable, 4 pairs, cat. 6A, with separator, 500Mhz, HFLT, 305 m

LANMASTER FTP cable, 4 pairs, cat. 6A, with separator, 500Mhz, HFLT, 305 m

Product Code: LAN-6AFTP-HFLT

LANMASTER FTP cable, 4 pairs, cat. 6A, with separator, 500Mhz, HFLT, 305 m
Model range

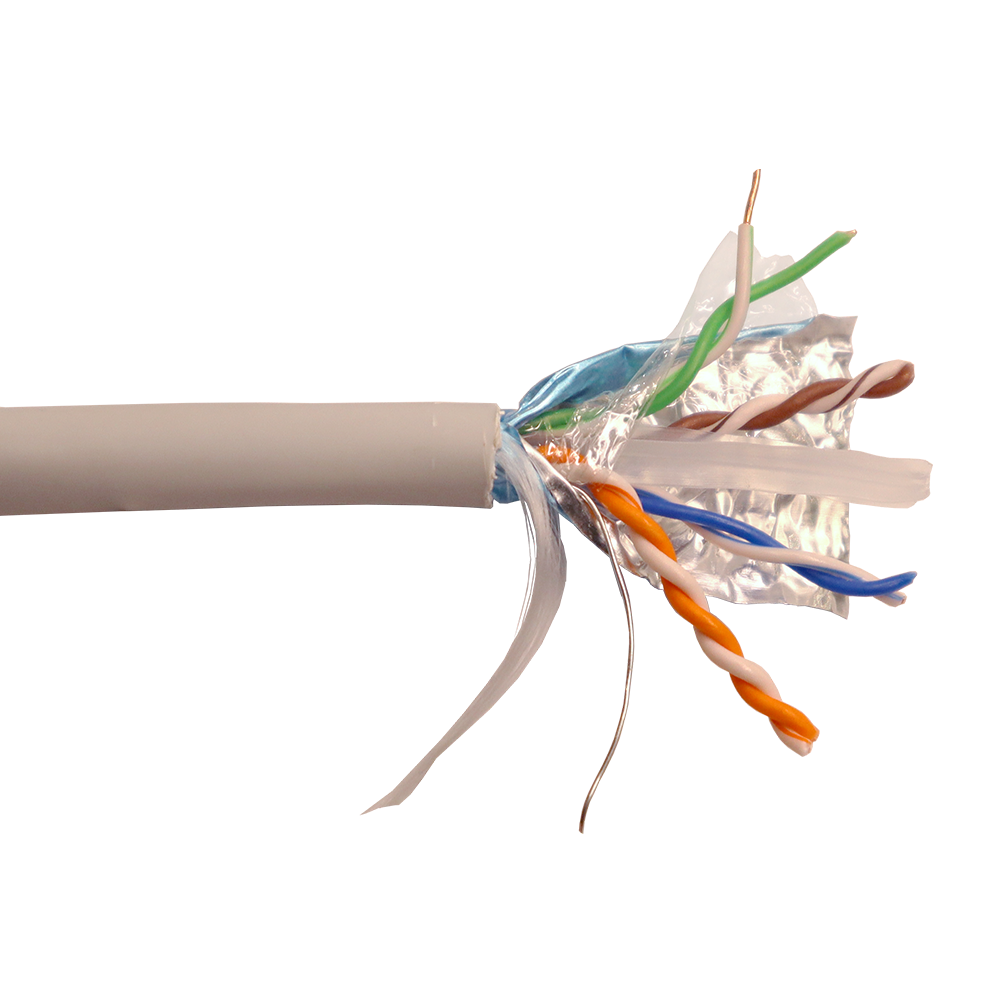

The cable consists of 4 pairs of single copper conductors.
The diameter of the conductor is 23AWG. Each conductor is protected with HDPE (high density polyethylene) insulation.

Two conductors stranded with a specially selected step make up one twisted pair.

The pairs are separated from each other by a cross-shaped partition increasing the transient attenuation between the pairs.

4 twisted pairs and partition are wrapped in polyethylene film and together with a solid copper grounding conductor are enclosed in a common laminated foil screen and HFLT jacket.
Sequential meter length marks are printed on the cable jacket.


Characteristic of the cable:

Characteristic Value
Type of conductor Solid
Conductor Diameter 23 AWG
Insulation Type HDPE (High Density Polyethylene)
Outer jacket HFLT
Sheath color Violet
FTP screen type laminated aluminum foil around 4 pairs
Cable diameter 7,4 mm
Operating temperature range to +60oС
Impedance 100 ± 15 Ohm
Fire resistance level CM
DC Resistance Unbalance of a pair 5%
Capacitance Unbalance pair to Ground 330 pF / 100 m
Propagation Delay Skew 1 ~ 500 MHz 45nS/100m MAX.
Nominal velocity propagation 67%
Certified by the laboratory 3P
Complies with TIA/EIA 568-С.2-1 cat. 6А; ISO/IEC 11801; EN 50173

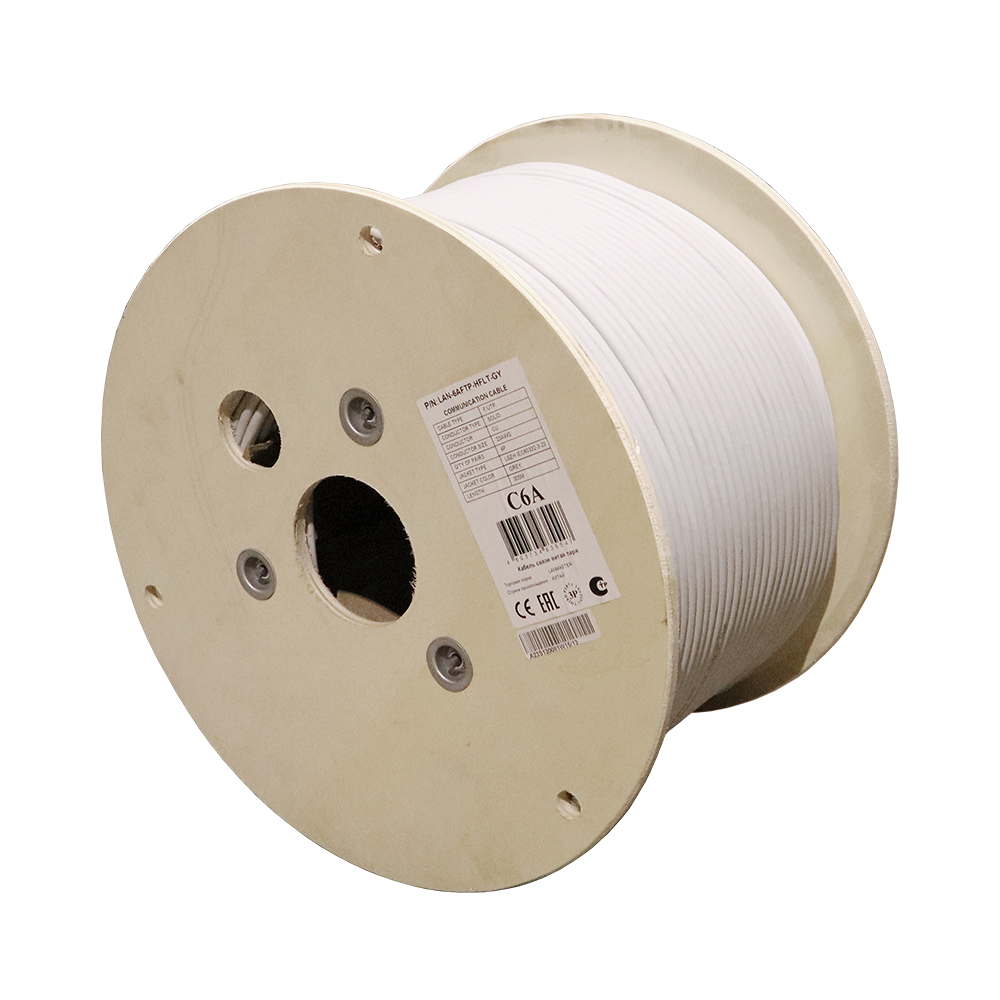

Meters in a box 305 м
Frequency range 1-500 Mhz
Color coding Pair 1 "blue/white-blue";
Pair 2 "orange/white-orange";
Pair 3 "green/white-green";
Pair 4 "brown/white-brown".

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
