LANMASTER UTP cord cable, 4x2, cat. 5E, 350 MHz, LSZH, 305 m

Product Code: LAN-5EUTP-PT-LSZH-xx

LANMASTER UTP cord cable, 4x2, cat. 5E, 350 MHz, LSZH, 305 m

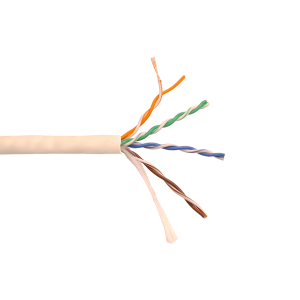

The cable consists of 4 pairs of copper multiple conductors.
The diameter of the conductor is 24AWG.
Each conductor is put in HDPE (high density polyethylene) insulation.

Two conductors stranded with a specially selected step make up one twisted pair.
4 twisted pairs are wrapped with a LSZH (low smoke, zero halogen) sheath.

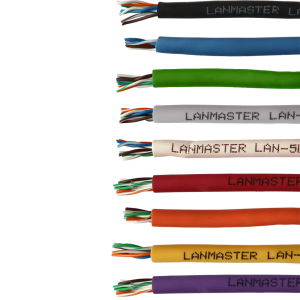

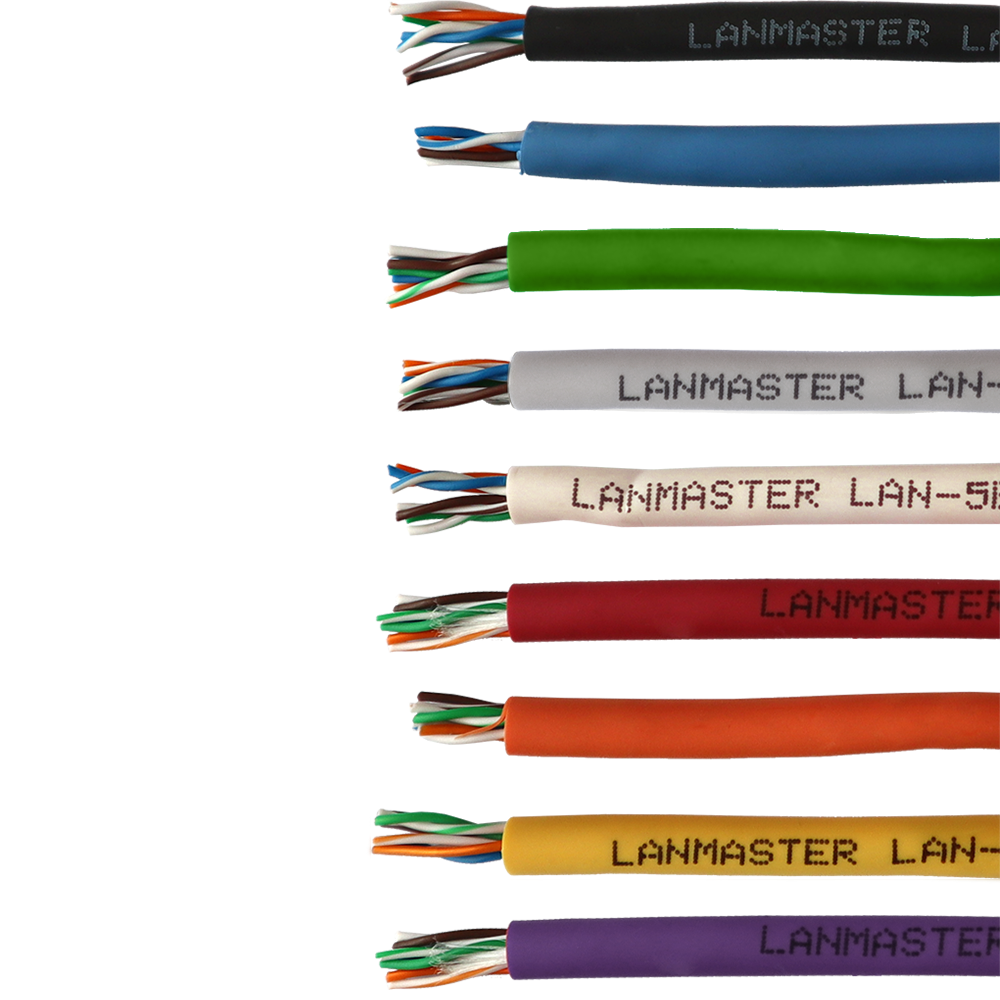

Jacket color options:

  • White

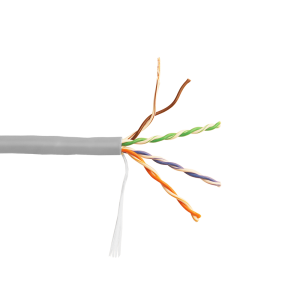

  • Gray
  • Yellow

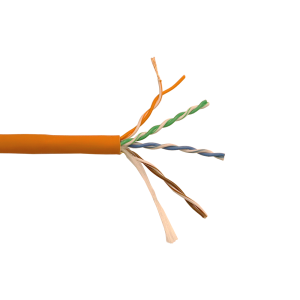

  • Orange
  • Green
  • Red

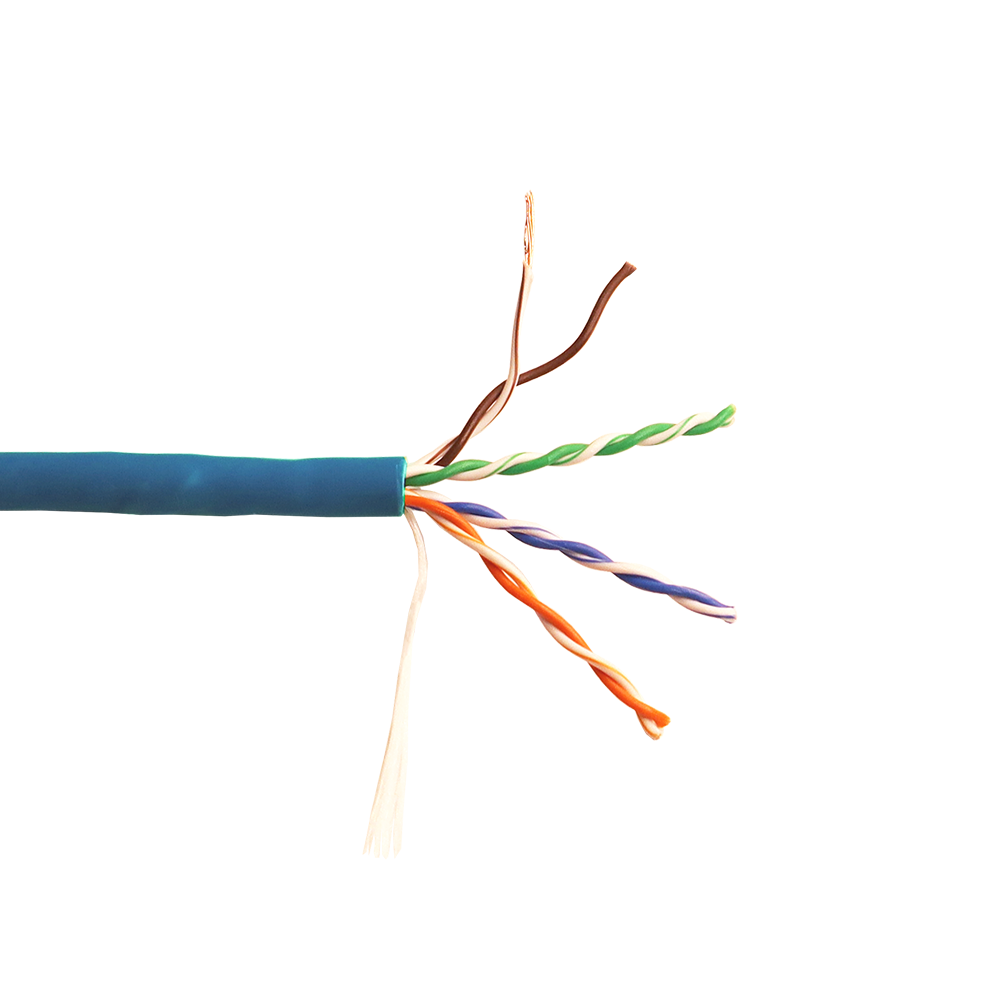

  • Blue
  • Brown

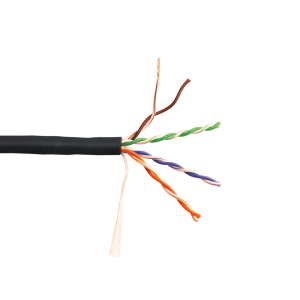

  • Black

Modern high-speed networks’ requirements are very high regarding cable management system.

Therefore, it cannot be used without patch cords of various colors.

The color identification of patch cords is very effective regarding a multiport system management.

Professional system administrators have been using the principle of connecting different types of equipment for a long time, including the equipment serving different user groups, or from different floors, with patch cords of their color.

Thus, it saves your time for connecting and switching users and minimizing the downtime of high-speed networks.

Characteristic of the cable:

Characteristic Value
Type of conductor Stranded
Conductor Diameter 24 AWG
Insulation Type HDPE (High Density Polyethylene)
Outer jacket
LSZH
Cable diameter 5.3 mm
Impedance 100 ± 15 Ohm
Mutual Capacitance 17.1 nF / 1000 ft
DC Resistance 28.6 ohm / 1000 ft
DC Resistance Unbalance of a pair 5%
Capacitance Unbalance pair to Ground 330 pF / 100m
Propagation Delay Skew 45 nS / 100m
Nomal velocity propagation 71%
Attenuation to crosstalk ratio at 100 MHz min. 8.9 dB std 13.9 dB
at 155 MHz min. 11.1 dB
at 200 MHz min. 4.8 dB
Certified by the laboratory 3P and ETL Certified
Complies with TIA / EIA 568-B.2 cat. 5E

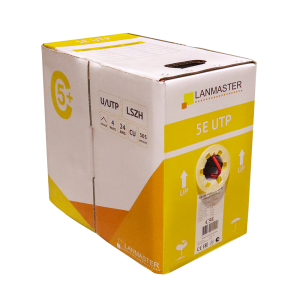

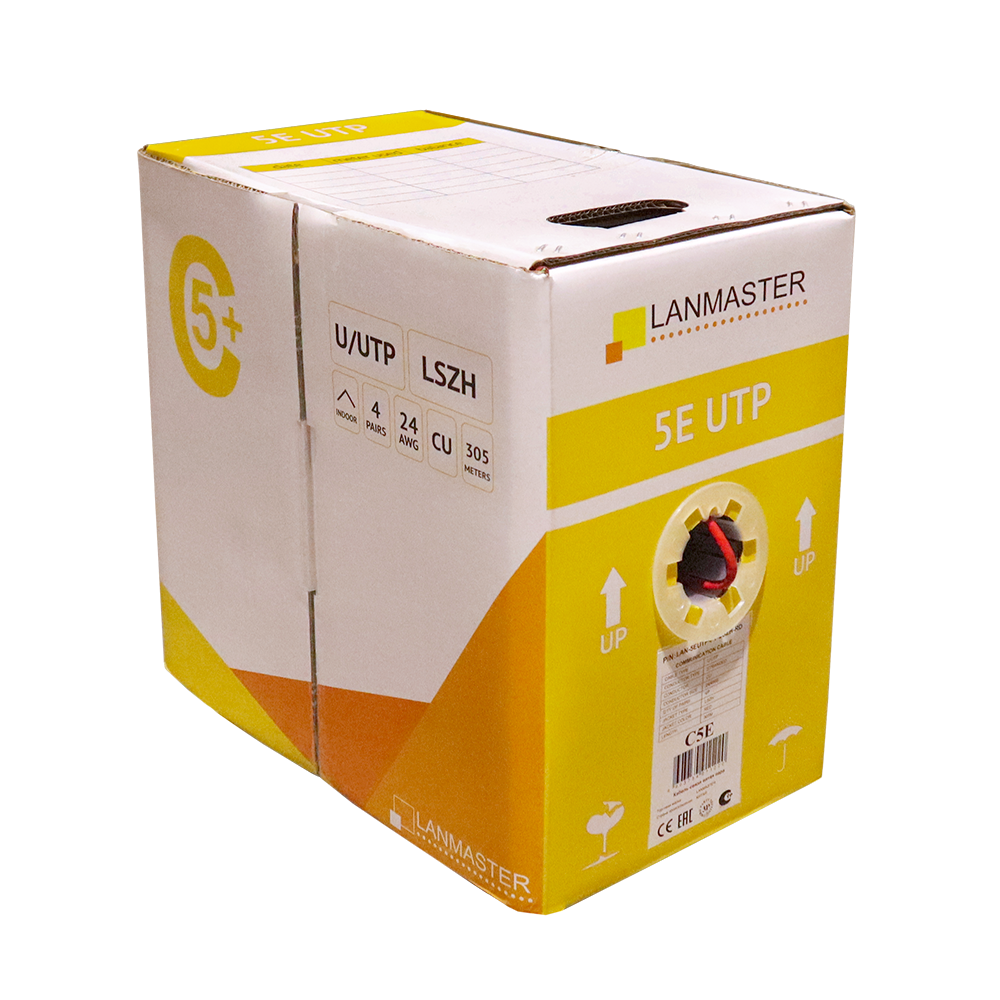

Meters in box 305 m
Color coding Pair 1 "blue/white-blue";
Pair 2 "orange/white-orange";
Pair 3 "green/white-green";
Pair 4 "brown/white-brown".

Cable transfer characteristics:

Frequency
(MHz)
Attenuation
(dB)
NEXT
(dB)
ACR
(dB)
PS.NEXT
(dB)
PS.ACR
(dB))
ELFEXT
(dB)
PS.ELFEXT
(dB)
Return Loss
(dB)
1 2.4 65.3 62.9 62.3 59.9 63.8 60.8 20
4 4.9 56.3 51.4 53.3 48.4 51.7 48.7 23
8 6.9 51.8 44.9 48.8 41.9 45.7 42.7 24.5
10 7.8 50.3 42.5 47.3 39.5 43.8 40.8 25
16 9.8 47.3 37.5 44.3 34.5 39.7 36.7 25
20 11.2 45.8 34.6 42.8 31.6 37.8 34.8 25
25 12.5 44.3 31.8 41.3 28.8 35.8 32.8 24.2
31.25 14 42.9 28.9 39.9 25.9 33.9 30.9 23.2
62.5 20.4 38.4 18 35.4 15 27.8 24.8 20.7
100 26.4 35.3 8.9 32.3 5.9 23.8 20.8 19
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (8)

Code Name
LAN-5EUTP-PT-LSZH-BK LANMASTER UTP cord cable, 4x2, cat. 5E, 350 MHz, LSZH, black, 305 m Add to list
LAN-5EUTP-PT-LSZH-BL LANMASTER UTP cord cable, 4x2, cat. 5E, 350 MHz, LSZH, blue, 305 m Add to list
LAN-5EUTP-PT-LSZH-GN LANMASTER UTP cord cable, 4x2, cat. 5E, 350 MHz, LSZH, green, 305 m Add to list
LAN-5EUTP-PT-LSZH-GY LANMASTER UTP cord cable, 4x2, cat. 5E, 350 MHz, LSZH, grey, 305 m Add to list
LAN-5EUTP-PT-LSZH-OR LANMASTER UTP cord cable, 4x2, cat. 5E, 350 MHz, LSZH, orange, 305 m Add to list
LAN-5EUTP-PT-LSZH-RD LANMASTER UTP cord cable, 4x2, cat. 5E, 350 MHz, LSZH, red, 305 m Add to list
LAN-5EUTP-PT-LSZH-WH LANMASTER UTP cord cable, 4x2, cat. 5E, 350 MHz, LSZH, white, 305 m Add to list
LAN-5EUTP-PT-LSZH-YL LANMASTER UTP cord cable, 4x2, cat. 5E, 350 MHz, LSZH, yellow, 305 m Add to list
