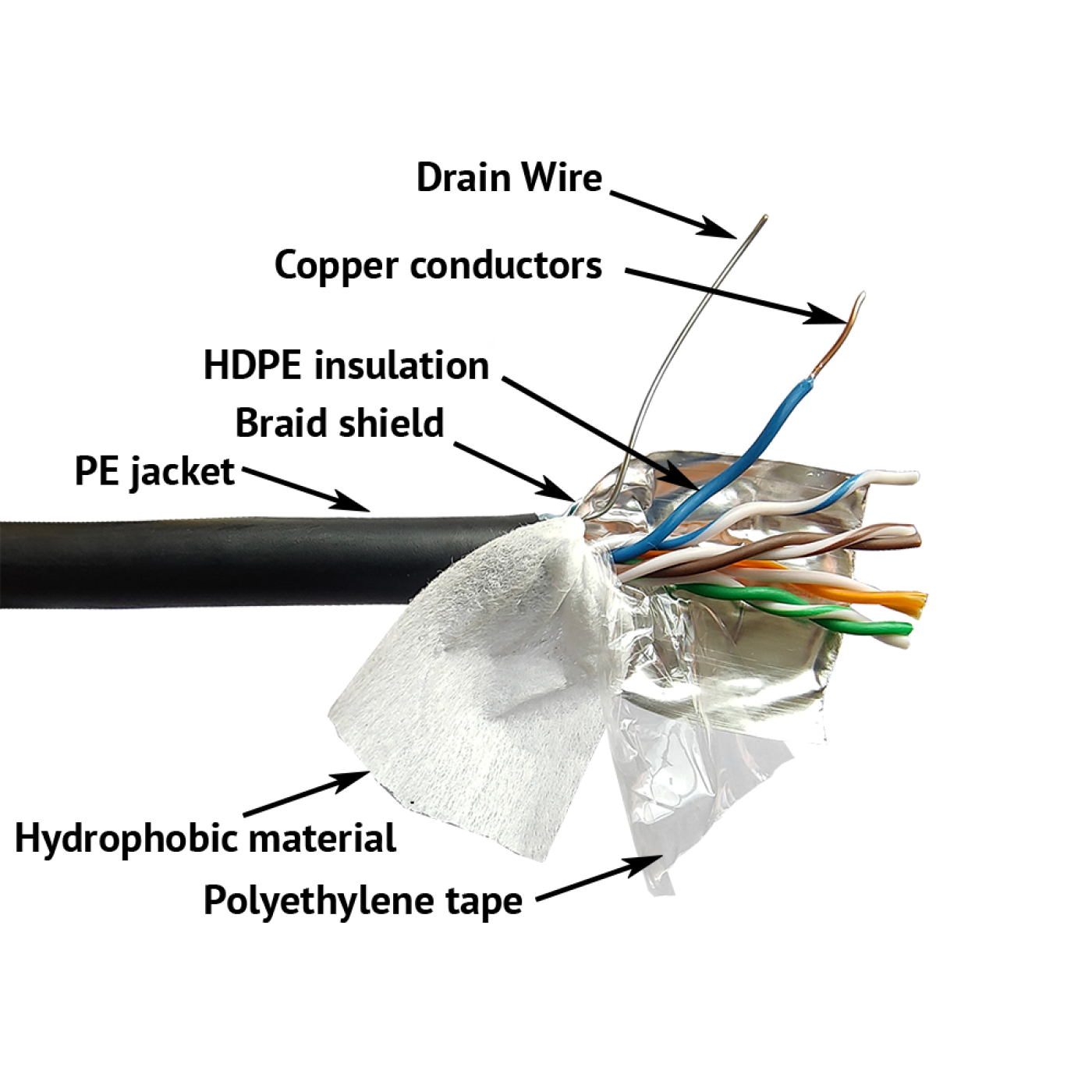

The cable consists of 4 pairs of solid copper conductors. The diameter of the conductor is 24AWG. Each conductor is protected with HDPE (high density polyethylene) insulation.
Two conductors stranded with a specially selected step make up one twisted pair. 4 twisted pairs are wrapped in a hydrophobic material and together with a copper grounding conductor are enclosed in a common foil screen and PE (polyethylene) jacket. Due to waterblocking tape the water does not spread through the cable in the humid environments. Unlike other hydrophobic fillers, this material is more convenient for installation, as it does not contaminate the tool, cable and hands of the adjuster.
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
Model range (1)
Code
Name
LAN-5EFTP-WP-OUT
LANMASTER FTP cable, 4 pairs, cat. 5E, 200Mhz, PE, for outdoor, with a waterblocking, 305 m
