TWT RG11U 75 Ohm Coaxial cable, CCS, 96*0.16 mm AL braid, PE, outdoor, black, 305 m

TWT RG11U 75 Ohm Coaxial cable, CCS, 96*0.16 mm AL braid, PE, outdoor, black, 305 m

Product Code: TWT-RG11-CS96/3-OUT

TWT RG11U 75 Ohm Coaxial cable, CCS, 96*0.16 mm AL braid, PE, outdoor, black, 305 m
Model range

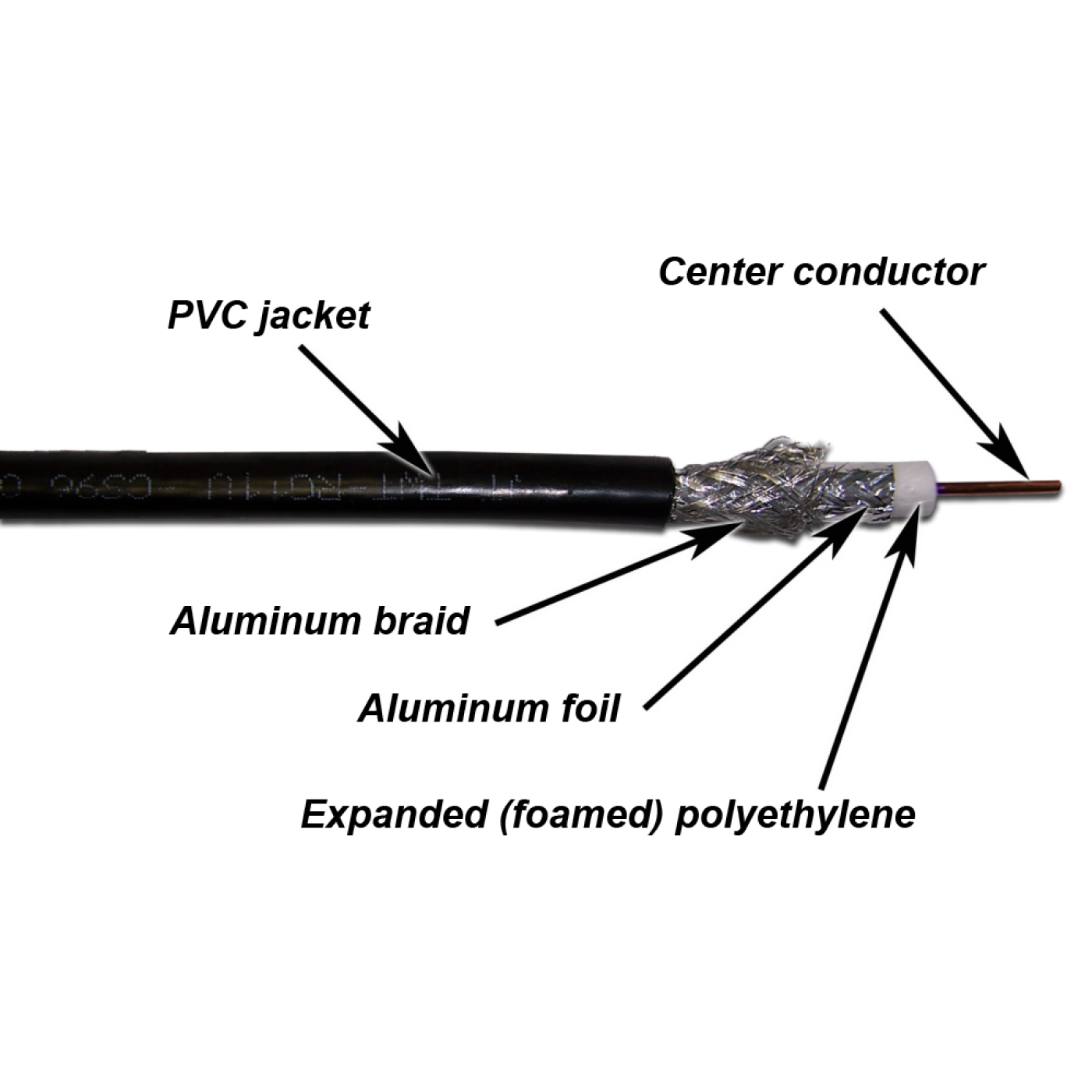

It is used for cabling television backbone networks. Used for outdoor installation or when burring directly in the ground.

Center conductor: copper clad steel wire (CCS), solid

Center conductor insulation: low density expanded (foamed) polyethylene

Shield: aluminum laminated foil and aluminum braid

Outer jack: PE (polyethylene)

Color: Black

Packaging: 305 m on a reel

Physical characteristics of the cable:


CharacteristicsValue
Center conductorDiameter1.63+/-0.01 ( 14AWG )
Material Copper Clad Steel (CCS)
Conductor insulationDiameter7.20+/-0.13 mm
Centering >=90 %
Shield№1MaterialAluminum foil
Shield density 100%
Thickness0,16 mm
№2 Number of wires 6/16
Shield density60%
Material Aluminum
Cable diameter by shield7,91 mm
Jacket Diameter 10.20±0.10 mm
MaterialPE
Dielectric strength of the outer jacket 3000Vac
ColorBlack
Temperature Operating from -40°С to +70°С
WeightOf 1 km of cable100 kg


Electrical (transmission) characteristics of the cable:

Characteristics Value
Wave impedance 75±3 Ohm
Electrical capacitance 53±2 pF/m
Nominal velocity propagation 83 %
Return loss at 5 - 1000 MHz ≥20 dB
Attenuation, dB/100 m (20°С) 55 MHz 0,96
211 MHz 1,9
450 MHz 2,75
600 MHz 3,18
870 MHz 4,06
1000 MHz 4,35
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
