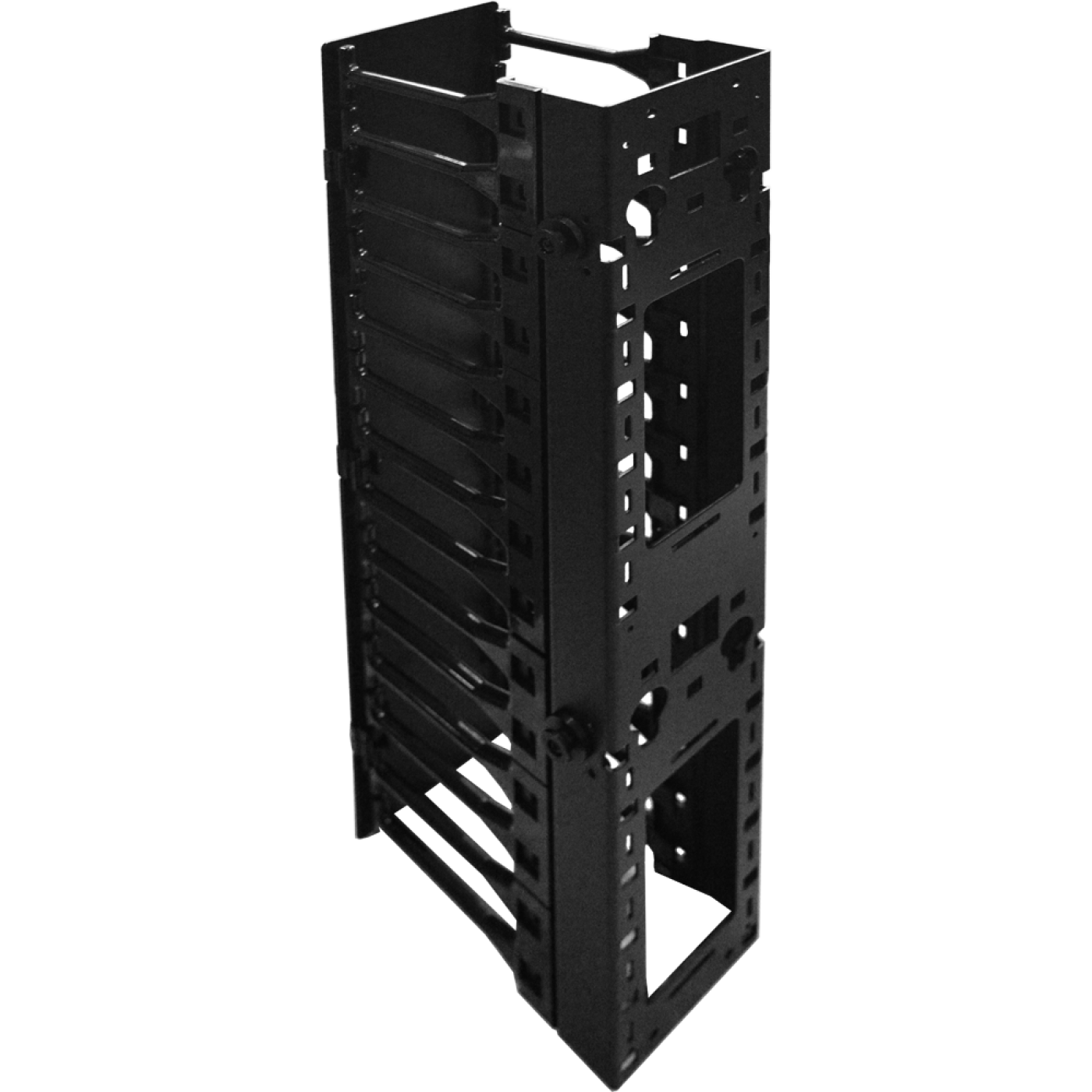

Vertical organizer for adjustable racks with plastic fingers and a cover

Vertical cable manager for distributing cable flows in TWT-RACK2-xxU-ADJ TWT series racks.

The manager has an increased capacity and has slots for cable entry at the back, top and bottom. The cable flows are carried out from the sides through a system of supporting "fingers" located by 1U increments. Support elements made of reinforced plastic and provided cable support at the level of each RMU. The rounded smooth surface of the "fingers" protects the cable jacket from damage and provides the required bending radius.

The manager is divided by height into 3 sections of 622 mm. Both one-sided and two-sided use cases can be implemented.

When implementing a two-sided option, the two sections are connected by the back sides, thus obtaining a double channel within one cable manager.

Two-sided	One-sided

The rear panel has slots for cable entry, and holes for quick mounting of the PDU (in case of a single-sided use model) without the use of tools.

There are removable covers with latches on the front. The cover is divided along the length into several segments, so there is no need to remove it completely when working with cable flows.

The manager is installed on the mounting rails of the rack using a special tool-free mounts.

Supplied unassembled in a compact package.

Made of steel and reinforced plastic.

Color is black (RAL 9005).
