Wall mount brackets for 19” equipment
Wall mount brackets for 19” equipment TWT-PPLEG-xx: specifications, description, purpose and use in structured cabling, data center and LANMASTER infrastructure projects.
TWT-PPLEG-xx

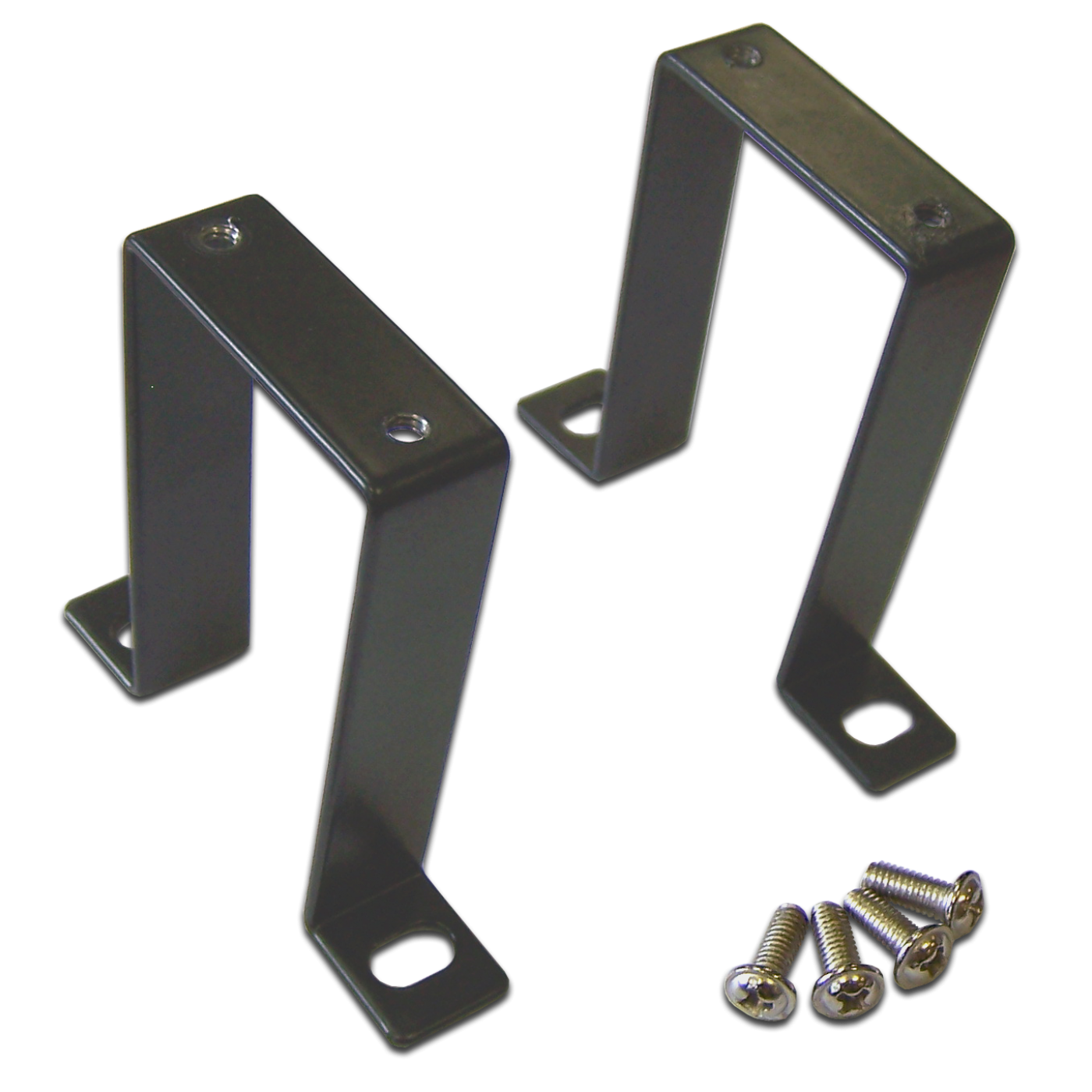

Brackets (legs) for wall mounting of standard 10" and 19" equipment: patch panels, cable managers, electrical outlets, as well as active network equipment.
Brackets are available in two types: 65 mm and 130 mm high.
Package includes 2 brackets and 4 screws for mounting an equipment.
Made of steel.
Powder coating.
Color is black.

| Bracket dimensions | Packaging |
![]() | ![]() |
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| TWT-PPLEG-65 | pcs | 70 × 10 × 70 | 0.073 | 0.000049 |
| TWT-PPLEG-130 | pcs | 170 × 10 × 120 | 0.118 | 0.000204 |
Package
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| TWT-PPLEG-65 | box | 330 × 330 × 250 | 14.8 | 0.027225 |
| TWT-PPLEG-130 | box | 350 × 220 × 220 | 6.3 | 0.01694 |
Product Codes (2)
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
