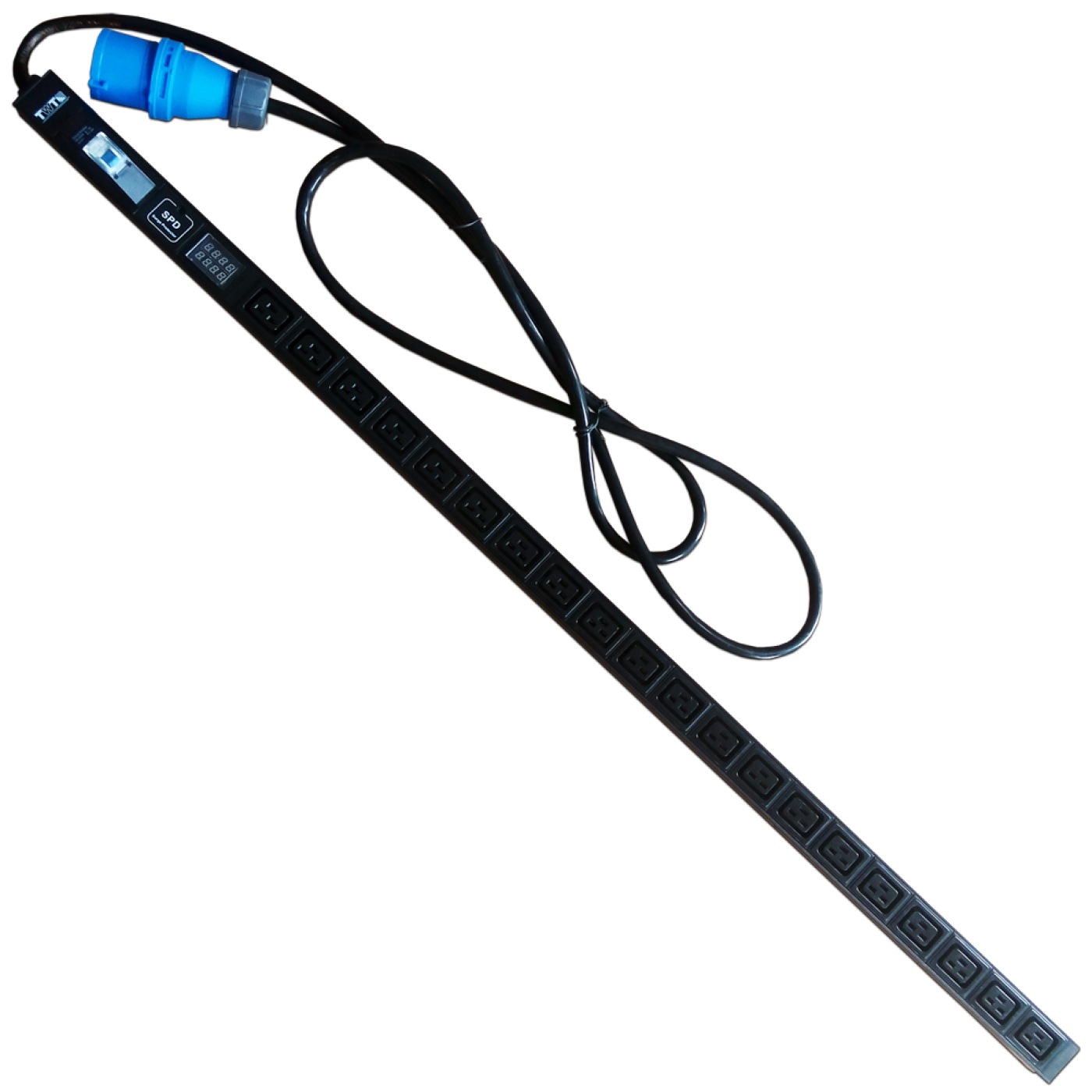

Vertical PDU, 20xC19, 250V, 32A, A/V meter, 3 m power cord, IEC 309 plug

Vertical PDU, 20xC19, 250V, 32A, A/V meter, 3 m power cord, IEC 309 plug. Technical characteristics and inquiry information for the LANMASTER catalog.
TWT-PDVI-20C9-I9

Purpose:

  • Vertical PDU, 20xC19, 250V, 32A, A/V meter, 3 m power cord, IEC 309 plug for rack power distribution in telecommunications cabinets and data-center racks.

Features:

  • Catalog name contains the key configuration, rating, connector type, color, and length where applicable.
  • For project use, request the current datasheet and availability details from LANMASTER or an authorized partner.

Frequently Asked Questions

What is the TWT-PDVI-20C9-I9 vertical outlet strip used for?

It is a vertical outlet strip with mains-parameter readout for installation in 19-inch cabinets and racks, distributing power to equipment with C20 inlets.

How many outlets does the unit have and of what type?

20 outlets of type C19 with grounding.

How is the unit switched on and off?

A 32 A circuit breaker serves as the power switch, with a protective cover to prevent accidental shutoff.

The breaker won't switch back on after it trips — what should I do?

After tripping, a circuit breaker can get stuck in a mid-trip position, partway between on and off — this happens not only from an overload but also from jolts during shipping. The unit can look faulty from the outside in this state. To restore it, first push the toggle fully into the off position, then switch it back on.

Can switching on all connected equipment at once trip the breaker?

Yes, switching on several devices at the same time — especially switches and other equipment with high inrush current — can briefly push the combined startup current above the breaker's rating and trip it, even though the running load is normal. It's best to power on connected equipment one device at a time, with a short interval between each, rather than all at once.

What does the readout on the unit show?

The unit has a built-in digital current and voltage meter (A/V meter) displaying the current readings, plus a surge protection module.

What input connector and power cord does the unit have?

The input plug is IEC309, with a built-in 3 m power cord.

What current and voltage is the unit rated for?

Total load is no more than 32 A, voltage is 220 V (up to 250 V).

How is the unit mounted in the cabinet?

The unit is installed vertically in 19-inch cabinets and racks using two corner brackets at the ends (rotatable 180° for mounting parallel to the front panel)..

How does this model differ from the TWT-PDVI-20C9-C0?

The TWT-PDVI-20C9-I9 is rated for a higher current (32 A vs. 16 A) and has an IEC309 input plug instead of a C20 connector; the number and type of output outlets (20 × C19), the A/V meter and surge protection are the same for both models.

Didn’t find an answer to your question?

Package dimensions and weight

Single item

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-PDVI-20C9-I9 pcs 1300 × 70 × 150 3.9 0.01365

Package

Product code Unit length × width × height (mm) Weight (kg) Volume (m3)
TWT-PDVI-20C9-I9 box 1310 × 310 × 410 40 0.166501

Product Codes (1)

  • Vertical PDU, 20xC19, 250V, 32A, A/V meter, 3 m power cord, IEC 309 plug
Specifications are subject to change without notice. For the most current information, consult LANMASTER or an authorized LANMASTER partner/distributor.
