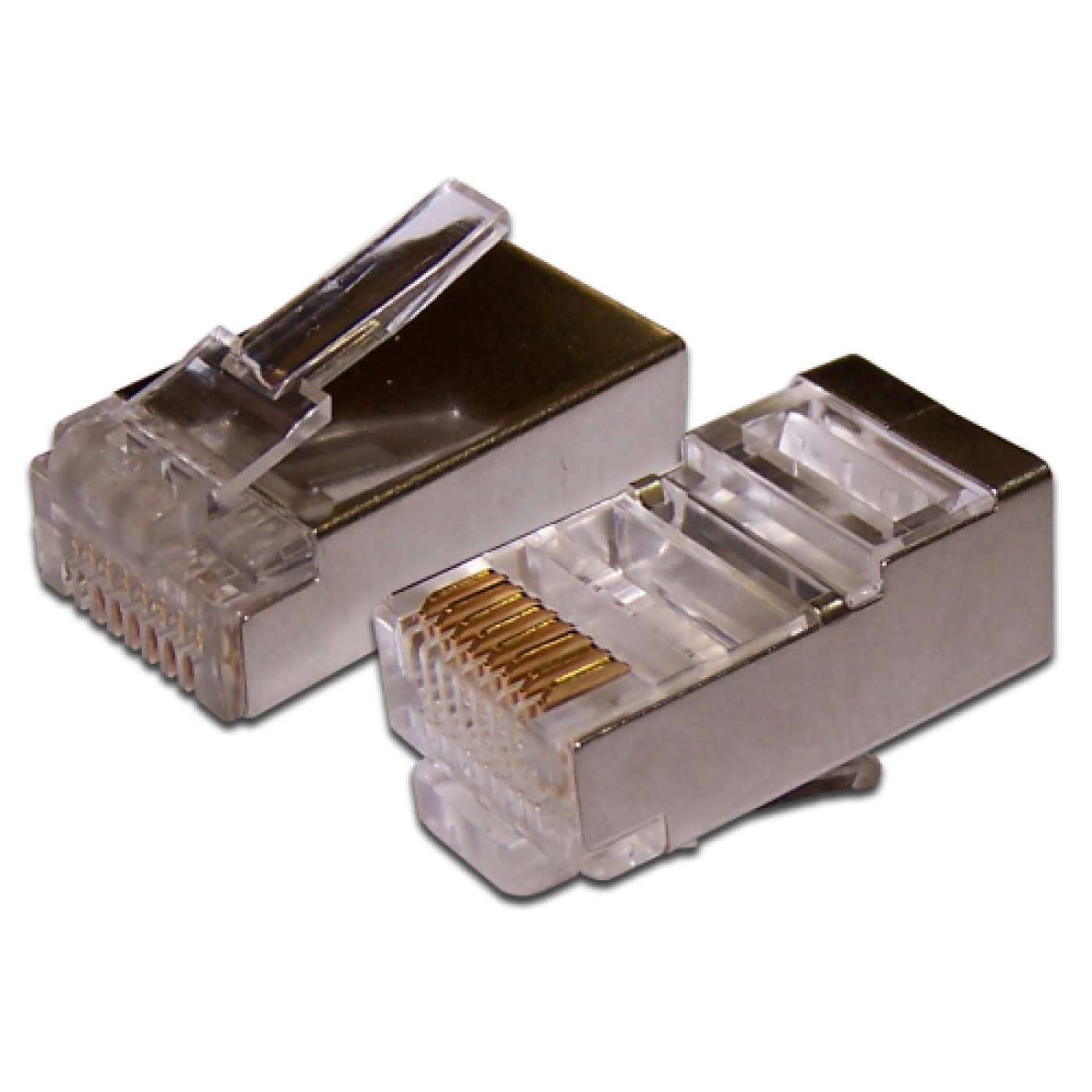

RJ45 STP 8P8C plug, universal, cat. 5e, 100 pcs

RJ45 STP 8P8C plug, universal, cat. 5e, 100 pcs

Product Code: TWT-PL45/S-8P8C

RJ45 STP 8P8C plug, universal, cat. 5e, 100 pcs
Model range

Shielded RJ-45 plugs are designed for assembling shielded patch cords. The design of the contact pins allows them to be used for terminating both solid and stranded cables. The connector body has a metal shield that connects to the cable shield and is necessary to ensure proper continuity of the shield system with appropriate shielded equipment (patch panels, modules, etc.).

The design of the contact pins allows them to be used for terminating both solid and stranded cables. A specific plug has been developed to work with a solid 23AWG cable.

Meet the requirements of category 5e. Has 8 contacts. Contacts are plated with a thin layer of precious metals to improve conductivity. It is recommended to use protective boots TWT-BO-6.0-xx/100 together with the plugs to ensure correct bending radius of the terminated cable.

Layout of conductors in the plug
according to T-568B
Contact pin design of universal plug


Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-PL45/S-8P8C RJ45 STP 8P8C plug, universal, cat. 5e, 100 pcs Add to list
