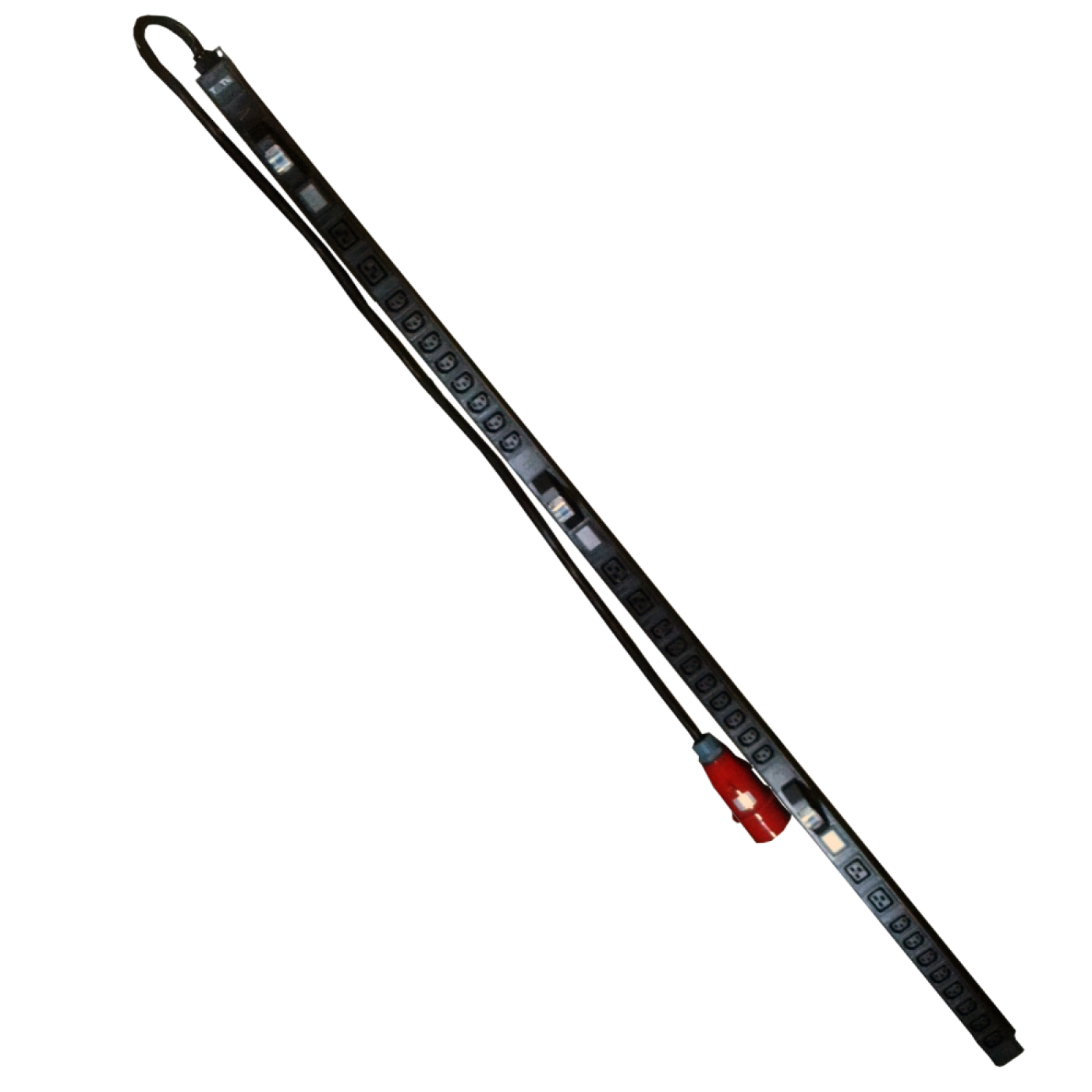

Power distribution unit, three-phase, vertical, 32А

Power distribution unit, three-phase, vertical, 32А

Product Code: TWT-PDVI3-6x24-CB-32

Power distribution unit, three-phase, vertical, 32А
Model range

Three-phase power distribution unit is used for power delivery in telecommunication cabinets and racks. It solves the problems of insufficient length of equipment power cords, ease of access and maintenance.

The unit is equipped with an integrated power cable with three-phase IEC309 plug and a combined set of C19 and C13 sockets. Safety circuit breakers are provided. The unit with circuit breakers includes volt-ammeters to monitor the power supply parameters on each phase.

The PDU is 1.77 meters high and can be installed vertically in 19" cabinets and racks in available locations.


Specification
 Value
Power source parameters
 3P / 32A / 380V~ 50 Hz
Output sockets (OUT)

6 x IEC60320 С19

24 x IEC60320 С13

Input plug (IN) IEC60309
On-Off Switch Safety circuit breaker
Dimensions (WхHхD) 45x60x1772 mm
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-PDVI3-6x24-CB-32 Power distribution unit, three-phase, vertical, A/V-meter, 32A / 380V, 6xC19 + 24xC13, 2.0 m power cord, IEC309 plug Add to list
