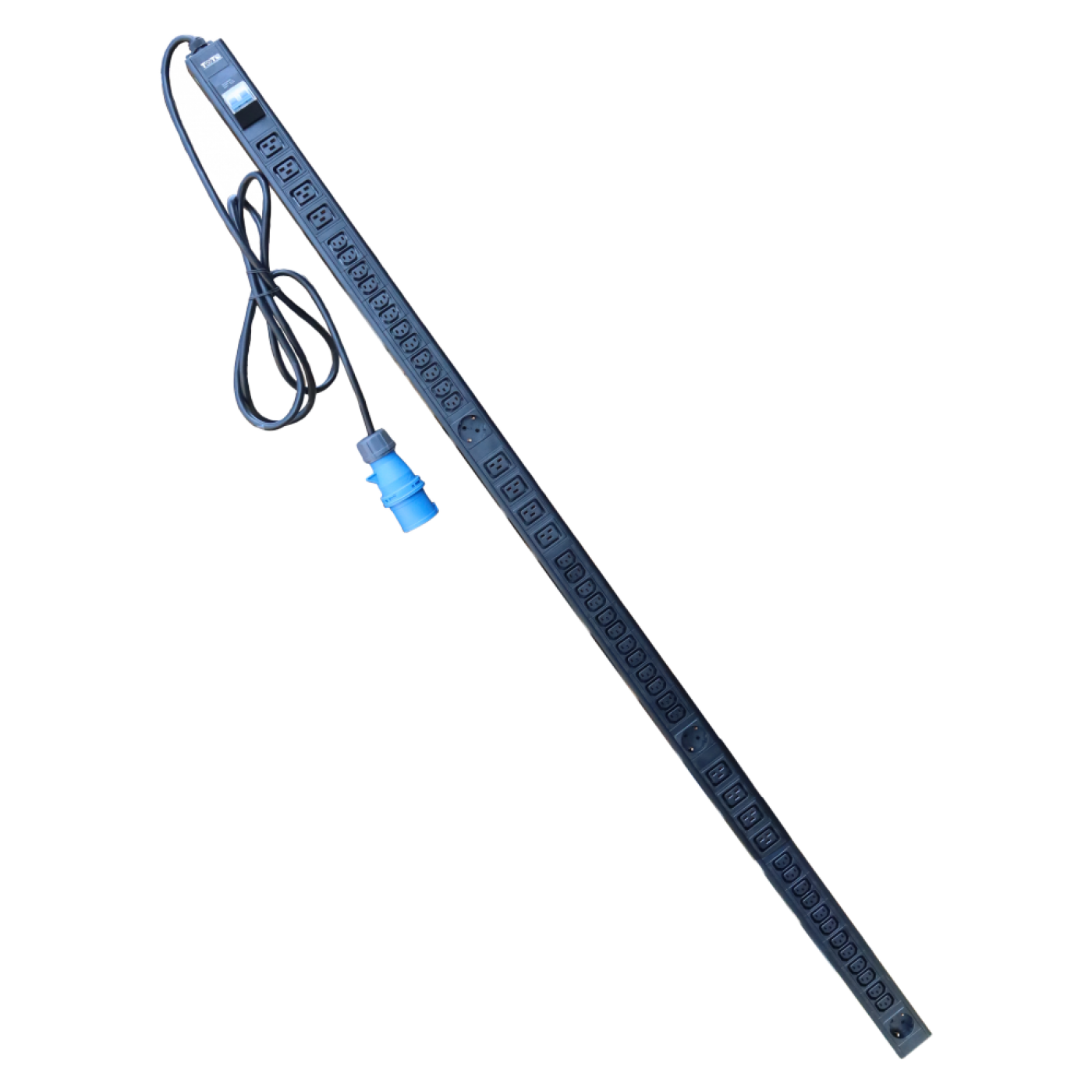

Vertical PDU, 1 phase, 32A, 12xC19 + 36xC13 + 3xSchuko, 3 m power cord, IEC 309 plug
The distribution unit is intended for power distribution and protection of computers, electronic and network equipment with C20, C14 inlets or German style Schuko plugs in telecommunication cabinets and racks. The PDU solves the problems of insufficient length of equipment power cords, ease of access and maintenance.
The unit is equipped with a power cord with IEC 309 earthed plug for connecting to power mains and a 32A circuit breaker, which is used as a switch.
To prevent accidental shutdown the breaker has a protective cover.
The unit has groups of sockets: 3 groups of four C19 connectors (IEC 60320 C19, earthed), 3 groups of twelve C13 connectors (IEC 60320 C13, earthed), and 3 German style Schuko sockets with protective shutters (DIN49440).
The distribution unit is 1.84 meter high and can be mounted vertically in 19" cabinets and racks in designated spaces.
The PDU is mounted using two mounting brackets located at the ends of the block. The design of the brackets allows them to be rotated 180° for installation parallel to the front side of the PDU.
Vertical trays of LAN-DC series cabinets have special hinged holes arranged with a certain height step. Installing the PDU into these holes is done using two clips located on the back of the PDU case without the use of a tool. This method is fast and convenient. The PDU has the necessary clips in the package.
It is recommended to use additional equipment mounting TWT-CB-BKT brackets for the missing support points when installing the PDU in cabinets and racks.
Allowed to mount the unit on the wall and other surfaces using wall mounting TWT-PPLEG-65/TWT-PPLEG-130 brackets.
Specifications:
- Supply voltage is 220V (up to 250V)
- Total load current is no more than 32A
- Dimensions (WxHxD) - 55x1840,5x62 mm
Frequently Asked Questions
What is the TWT-PDV-12x36x3S-32A vertical outlet strip used for?
It is a high-capacity vertical outlet strip for installation in 19-inch cabinets and racks, distributing power to equipment with C20 and C14 inlets as well as to devices with household Schuko plugs.
How many outlets does the unit have and of what type?
12 outlets of type C19 (split into 3 groups of 4), 36 outlets of type C13 (split into 3 groups of 12), and 3 outlets of type Schuko with protective shutters.
How is the unit switched on and off?
A 32 A circuit breaker serves as the power switch, with a protective cover to prevent accidental shutoff.
The breaker won't switch back on after it trips — what should I do?
After tripping, a circuit breaker can get stuck in a mid-trip position, partway between on and off — this happens not only from an overload but also from jolts during shipping. The unit can look faulty from the outside in this state. To restore it, first push the toggle fully into the off position, then switch it back on.
Can switching on all connected equipment at once trip the breaker?
Yes, switching on several devices at the same time — especially switches and other equipment with high inrush current — can briefly push the combined startup current above the breaker's rating and trip it, even though the running load is normal. It's best to power on connected equipment one device at a time, with a short interval between each, rather than all at once.
What input connector and power cord does the unit have?
The input plug is IEC309, with a built-in 3 m power cord.
What current and voltage is the unit rated for?
Single-phase, total load not exceeding 32 A, voltage 220 V (up to 250 V).
How is the unit mounted in the cabinet?
The unit is installed vertically in 19-inch cabinets and racks using two corner brackets at the ends (rotatable 180° for parallel mounting to the front panel) or tool-free clips for LAN-DC series vertical cable trays — the clips are included.
Can the unit be secured further or wall-mounted?
For other rack types, additional TWT-CB-BKT brackets can be used; for wall mounting, use TWT-PPLEG-65/130 brackets.
Package dimensions and weight
Single item
| Product code | Unit | length × width × height (mm) | Weight (kg) | Volume (m3) |
|---|---|---|---|---|
| TWT-PDV-12x36x3S-32A | pcs | 1900 × 150 × 70 | 5.4 | 0.01995 |
Product Codes (1)
-
Vertical PDU, 1 phase, 32A, 12xC19 + 36xC13 + 3xSchuko, 3 m power cord, IEC 309 plug
