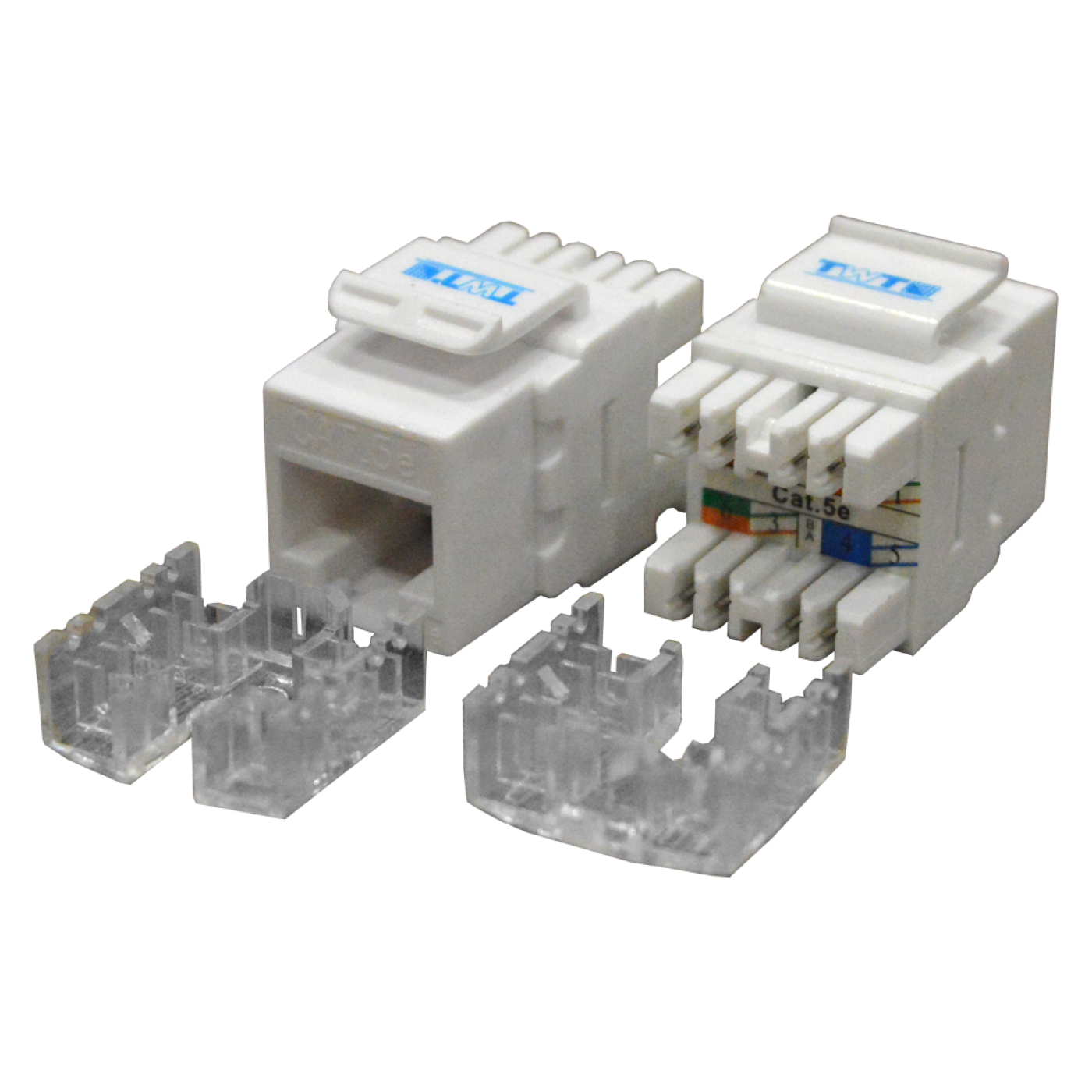

RJ45 Keystone module, category 5E, UTP, 180 degrees, white

RJ45 Keystone module, category 5E, UTP, 180 degrees, white

Product Code: TWT-OK45UTP180/5E-WH

RJ45 Keystone module, category 5E, UTP, 180 degrees, white
Model range

The module can be used to complete unshielded telecommunication sockets installed in wall trunks, in a wall box, also for installation in modular patch panels (see the compatibility items).
The module has a standard Keystone form-factor and can be used not only in LANMASTER socket adapters, but also in socket adapters from other manufacturers.

Category 5E compliant.

There is an eight-pin RJ-45 socket on the front side of the module, and a block for eight contacts of the IDC110 type, located at an angle of 180˚ to the front surface of the module on the back side.

The insulation displacement contact method is used (IDC) to terminate incoming cable.

There is a wiring diagram for the cable conductors between the IDC pins on module cover in accordance with the T568A and T568B wire map for ease of installation.

The module is equipped with a protective insert that provides additional fixation of cable conductors terminated in IDC block and prevents the conductors from being pulled out when the cable is overstretched.

Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.

Model range (1)

Code Name
TWT-OK45UTP180/5E-WH RJ45 Keystone module, category 5E, UTP, 180 degrees, white Add to list
