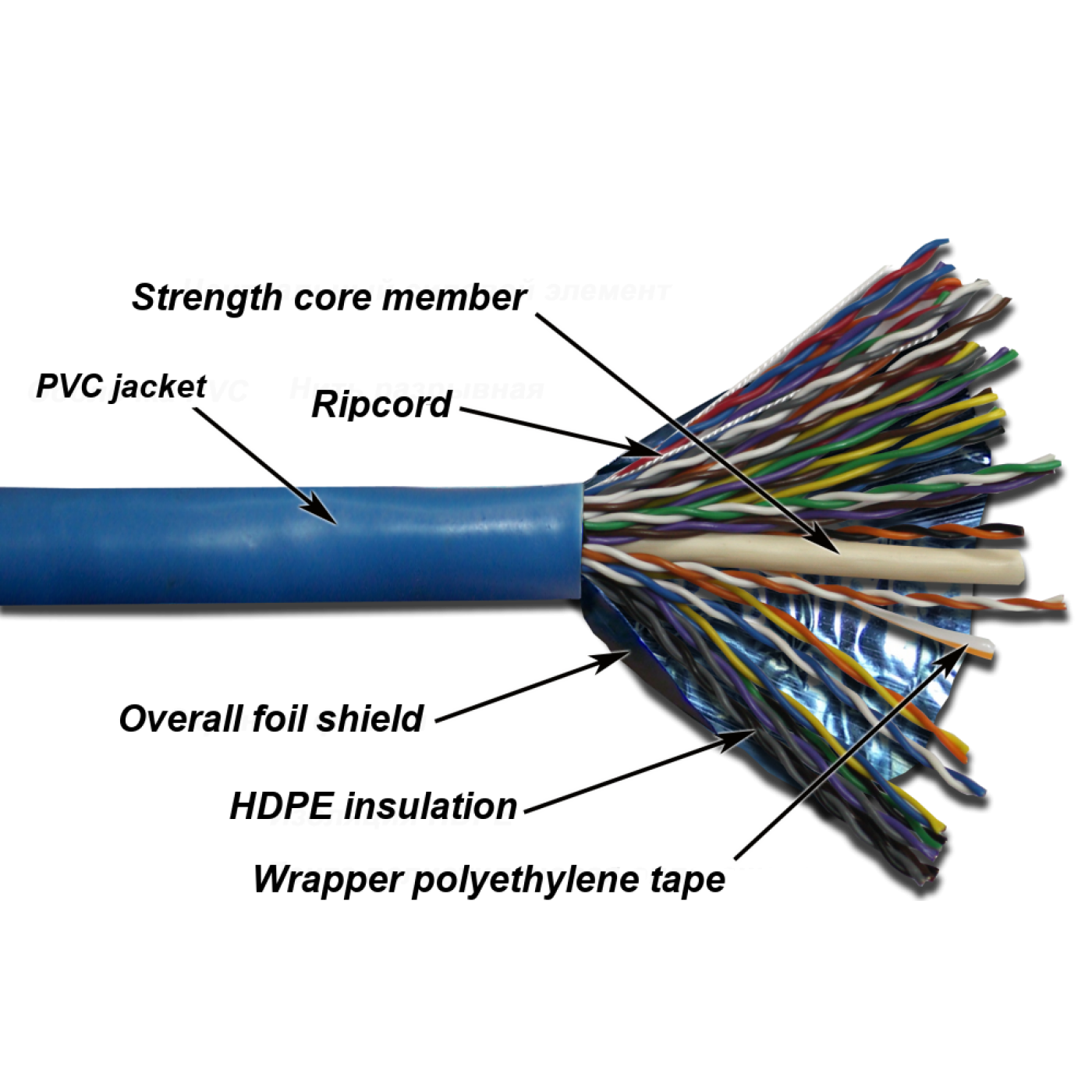

The cable consists of 25 pairs of solid copper conductors. Conductor diameter is 24AWG. Each conductor is enclosed in HDPE (high-density polyethylene insulation.
Two conductors, twisted with a specially selected step, make up one twisted pair. The twisted pairs are assembled around a central element, wrapped with a plastic film and a common screen and enclosed in a common PVC jacket.
To facilitate cable termination, a rip cord is included under the jacket.
Characteristic
Value
Jacket color
Blue
Jacket material
PVC (polychlorinated vinyl chloride)
Insulation material
HDPE (High Density Polyethylene)
Conductor diameter
24 AWG
Conductor Type
Solid
Screen type (for FTP cables)
aluminum foil around all pairs
Cable diameter
14 mm
Fire safety level
CM (vertical tray cable)
Temperature range
-20 °C / +75 °C
Impedance
100 Ohm
Number of meters per drum
305 m
NVP at 100 mHz
66%
Frequency range
1-100 MHz
Laboratory certification
UL, ETL VERIFIED
Compliant with TIA/EIA 568-A cat. 5 standards; ISO/IEC 11801; EN 50173
Support for the following applications: Speech, Т1, 10BASE-T Token Ring 4/16 mb/s, ATM 51/155 mb/s, TP-PMD 100mb/s, 100VG-AnyLAN
В диапазоне рабочих частот (1-100 МГц) передаточные характеристики кабеля превосходят граничные значения, определяемые стандартом.
Color coding:
Pair 1 White — Blue
Pair 13 Black — Green
Pair 2 White — Orange
Pair 14 Black — Brown
Pair 3 White — Green
Pair 15 Black — Gray
Pair 4 White — Brown
Pair 16 Yellow — Blue
Pair 5 White — Grey
Pair 17 Yellow — Orange
Pair 6 Red — Blue
Pair 18 Yellow — Green
Pair 7 Red - Orange
Pair 19 Yellow — Brown
Pair 8 Red — Green
Pair 20 Yellow — Gray
Pair 9 Red — Brown
Pair 21 Purple — Blue
Pair 10 Red — Grey
Pair 22 Purple — Orange
Pair 11 Black — Blue
Pair 23 Purple — Green
Pair 12 Black — Orange
Pair 24 Purple — Brown
Pair 25 Purple — Gray
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
